- RS Stock No.:
- 424-213
- Brand:
- RS PRO
42 In stock - FREE next working day delivery available
21 available from Europe for delivery within 1 working day(s).
Added
Price Each
£26.35
(exc. VAT)
£31.62
(inc. VAT)
Units | Per unit |
1 + | £26.35 |
- RS Stock No.:
- 424-213
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

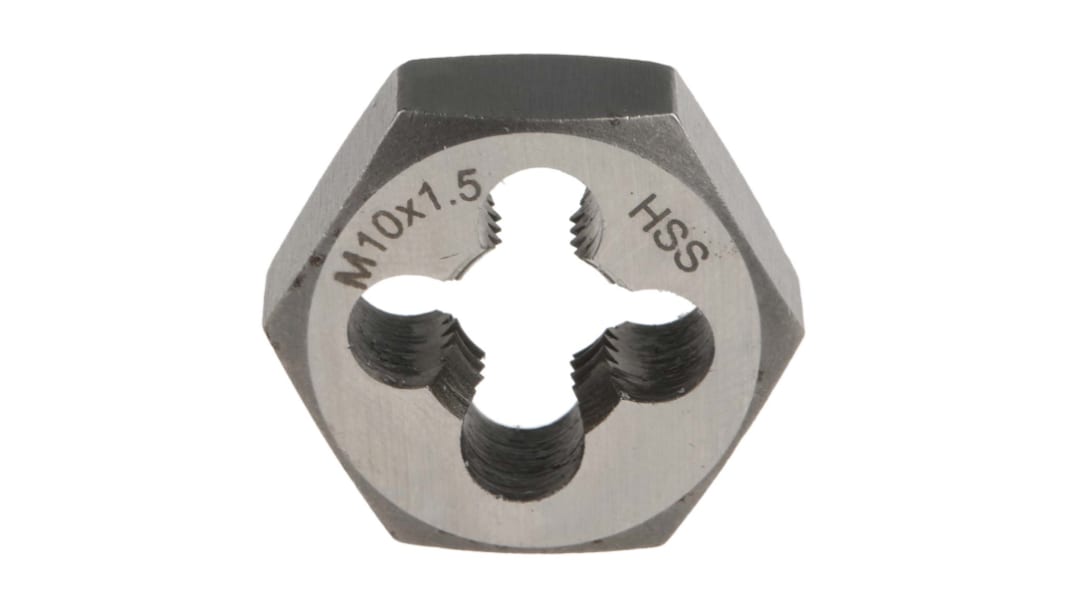

RS PRO 1.5 mm Pitch M10 HSS Die Nut
Breathe new life into worn or damaged threads with this die nut from RS PRO. It's made from high-speed steel (HSS) that allows it to cut cleanly through the damaged thread. It then cleans it up and reclaims it.
This die nut can be used to reclaim threads with a size of M10 and a pitch of 1.5 mm. It measures 0.92 inches (23.4 mm) in diameter and is 0.375 inches (9.5 mm) thick.
The die nut meets the requirements of US (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) electrostatic control standards, meaning that it won't damage equipment via electrostatic discharge. Die nuts are commonly used to reclaim threads in individual parts for maintenance, as well as the threads of pipes and those found in hydraulic installations.
This die nut can be used to reclaim threads with a size of M10 and a pitch of 1.5 mm. It measures 0.92 inches (23.4 mm) in diameter and is 0.375 inches (9.5 mm) thick.
The die nut meets the requirements of US (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) electrostatic control standards, meaning that it won't damage equipment via electrostatic discharge. Die nuts are commonly used to reclaim threads in individual parts for maintenance, as well as the threads of pipes and those found in hydraulic installations.
Features and Benefits
Diameter across flats of 0.92 in (23.4 mm)
Made of high-speed steel (HSS)
Single piece
Pitch of 1.5 mm
Thickness of 0.375 in (9.5 mm)
Thread size of M10
Made of high-speed steel (HSS)
Single piece
Pitch of 1.5 mm
Thickness of 0.375 in (9.5 mm)
Thread size of M10
Specifications
Attribute | Value |
---|---|
Thread Size | M10 |
Pitch | 1.5mm |
Number of Pieces | 1 |
Diameter Across Flats | 0.92in |
Thickness | 0.375in |
Material | HSS |
