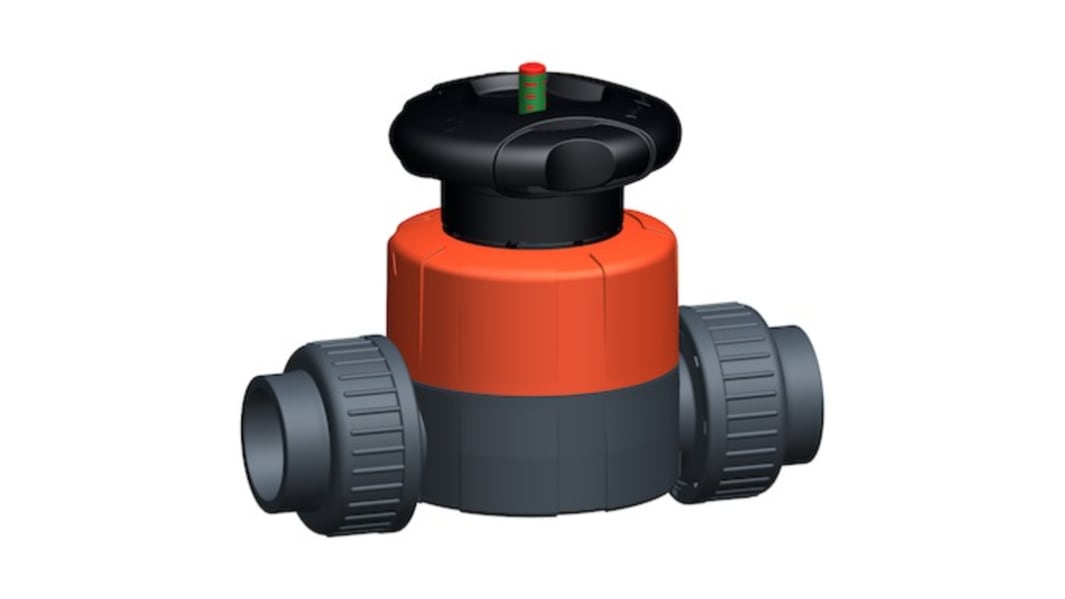

Georg Fischer PVC-U 10bar Diaphragm Valve, 161514515

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

PVC-U Diaphragm Valves

Double union ends with plain bore for solvent cement jointing

//media.rs-online.com/t_line/L214051-05.gif

Diaphragm Valves - PVC-U and ABS

10 bar Working Pressure at 20°C.,Hand wheel controlled, EPDM Diaphragm, M6 thread mounting hole.

Specifications
Attribute Value
Attachment Type Socket
Pipe Diameter 1-1/4in
Body Material PVC-U
Connection 1-1/4 in Socket
Pressure Rating 10bar
Flow Factor Kv 354L/min
Maximum Operating Temperature +60°C
Minimum Operating Temperature 0°C
Operating Temperature Range 0 → +60 °C
2 In stock for FREE next working day delivery
Price Each
£ 143.77
(exc. VAT)
£ 172.52
(inc. VAT)
Units
Per unit
1 - 4
£143.77
5 +
£139.37
