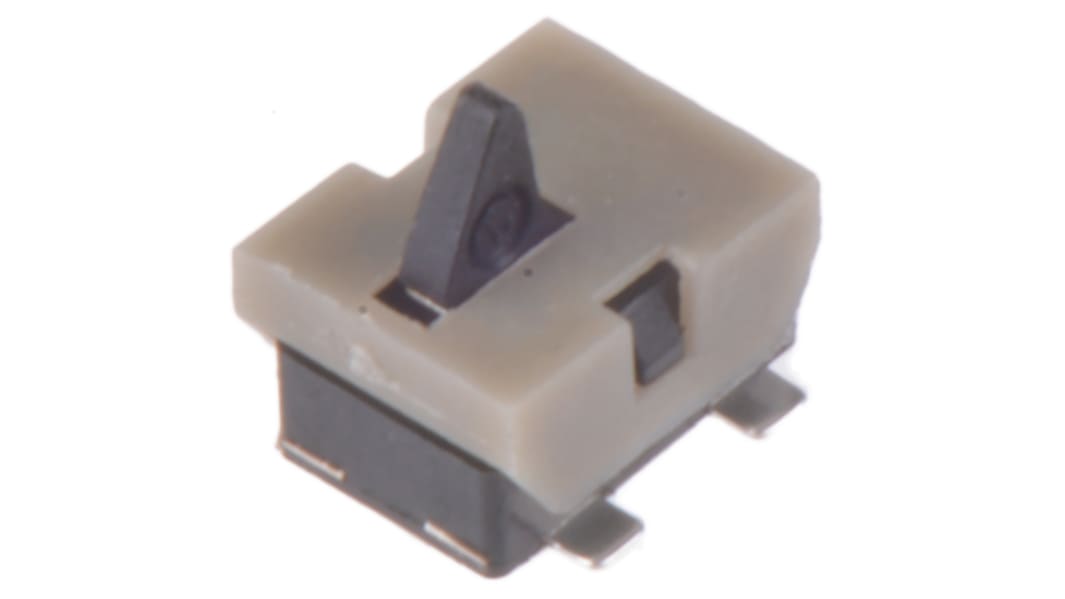

C & K Detector Switch, SPST-NO, 1 mA @ 5 V dc, Silver Over Nickel Plated Phosphor Bronze

  • RS Stock No. 793-1598
  • Mfr. Part No. HDT0001
  • Brand C & K
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

HDT Series, Micro Mini Detect Switches

The HDT series of micro miniature detect switches from C & K. Typical applications include consumer electronics, computers, medical devices, ATCA and MicroTCA devices.

Minimum operating life of 100000 cycles
Maximum actuation force of 35 grams

//media.rs-online.com/t_line/L7931598-01.jpg

Detector Switches

Specifications
Attribute Value
Contact Configuration SPST-NO
Mounting Type Surface Mount
Actuator Type Lever
Contact Current Rating 1 mA @ 5 V dc
Mechanical Life 100000Cycles
Contact Material Silver Over Nickel Plated Phosphor Bronze
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
469 In stock - FREE next working day delivery available
Price Each
£ 1.13
(exc. VAT)
£ 1.36
(inc. VAT)
Units
Per unit
1 - 19
£1.13
20 - 39
£0.88
40 - 99
£0.85
100 - 199
£0.80
200 +
£0.77
Packaging Options:
