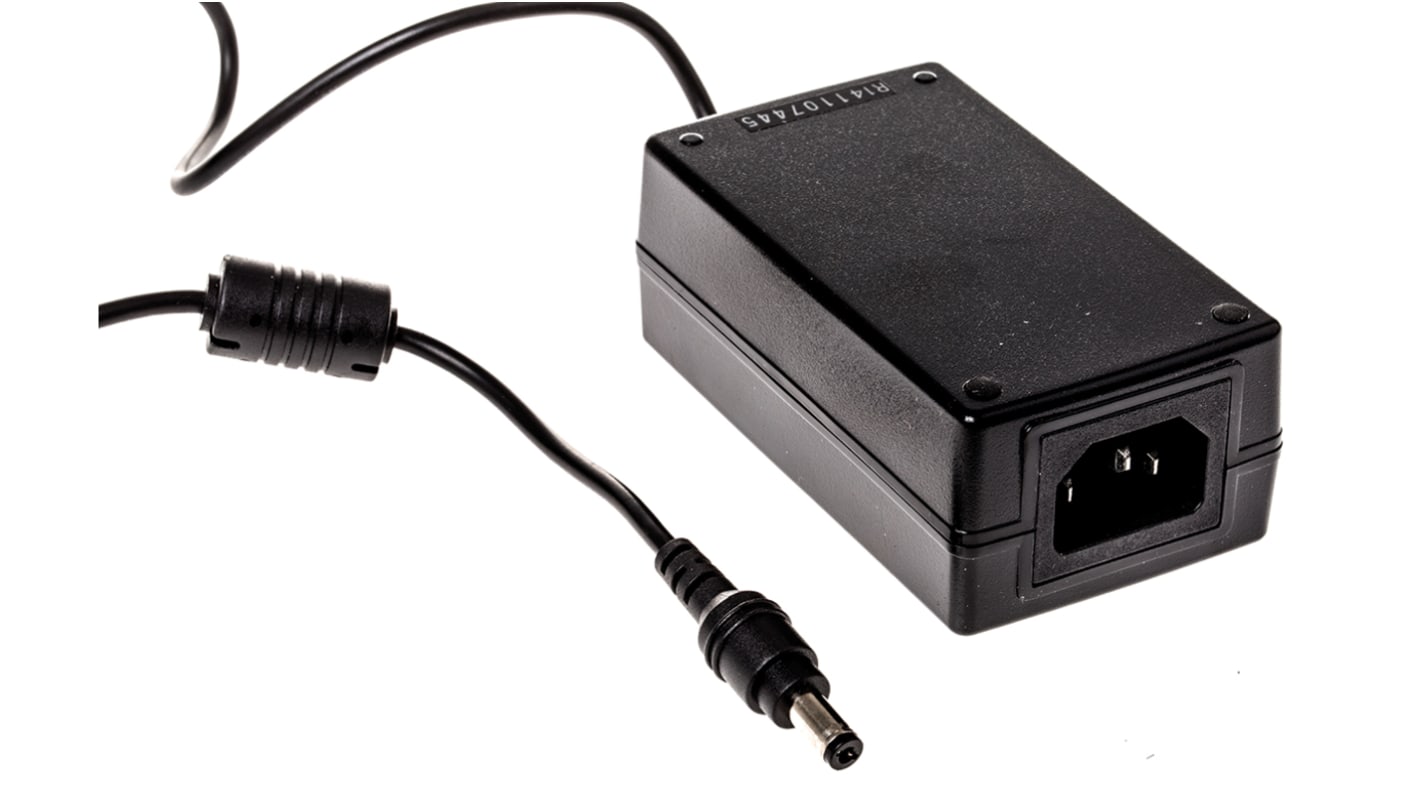

Mean Well 24V dc Power Supply, 750mA

  • RS Stock No. 667-5515
  • Mfr. Part No. GS18A24-P1J
  • Warranty 2 Year
  • Brand Mean Well
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Meanwell 15W to 90W ErP Single Output Switch Mode Desktop Power Supply - GS Series

15 to 90W energy saving, ErP compliant, switch mode, single output desktop power supply with universal, full range AC input and an IEC C14 input socket. This switch mode, single output desktop power supply is fully enclosed in a plastic case, has short circuit, overload and voltage protection and LED indication for power on. This range of switch mode single output desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.

Energy saving, class 1, switch mode, desktop power supply
High efficiency, long life and high reliability
ErP compliant
No load power consumption of <0.5W
Meets EISA 2007 (Energy Independence and Security Act)
Short circuit, over load and over voltage protection
3-pin IEC320, C14 input socket. For suitable input leads see stk nos. 426-373 (UK 3-pin plug) or 305-784 (Schuko plug) typically
Approximately 1m output lead fitted with a centre positive jack plug
EMC compliance to FCC part 15, EN55022 class B
Harmonic compliance to EN 61000-3-2,3

Note

Conforms to Energy-related Product Directive 2009/125/EC.
MTBF to MIL-HDBK-217F.

Standards

UL60950-1, TUV EN60950-1

Approvals

UL/cUL recognised, TUV, CB

Specifications
Attribute Value
Input Voltage Range 90 → 264 V ac, 135 → 370 V dc
Output Voltage Rating 24 V dc
Output Current Range 750mA
Input Connector IEC320-C14
Output Connection Type P1J
Number of Outputs 1
Load Regulation Range ±2%
Overall Width 54mm
Cable Length 1830mm
Overall Depth 36mm
Maximum Temperature +50°C
Standards Met ErP Compliant
Energy Efficiency Level V
Overall Dimensions 93 x 54 x 36mm
Weight 230g
Efficiency 84%
Overall Length 93mm
Minimum Temperature 0°C
Operating Temperature Range 0 → +50 °C
