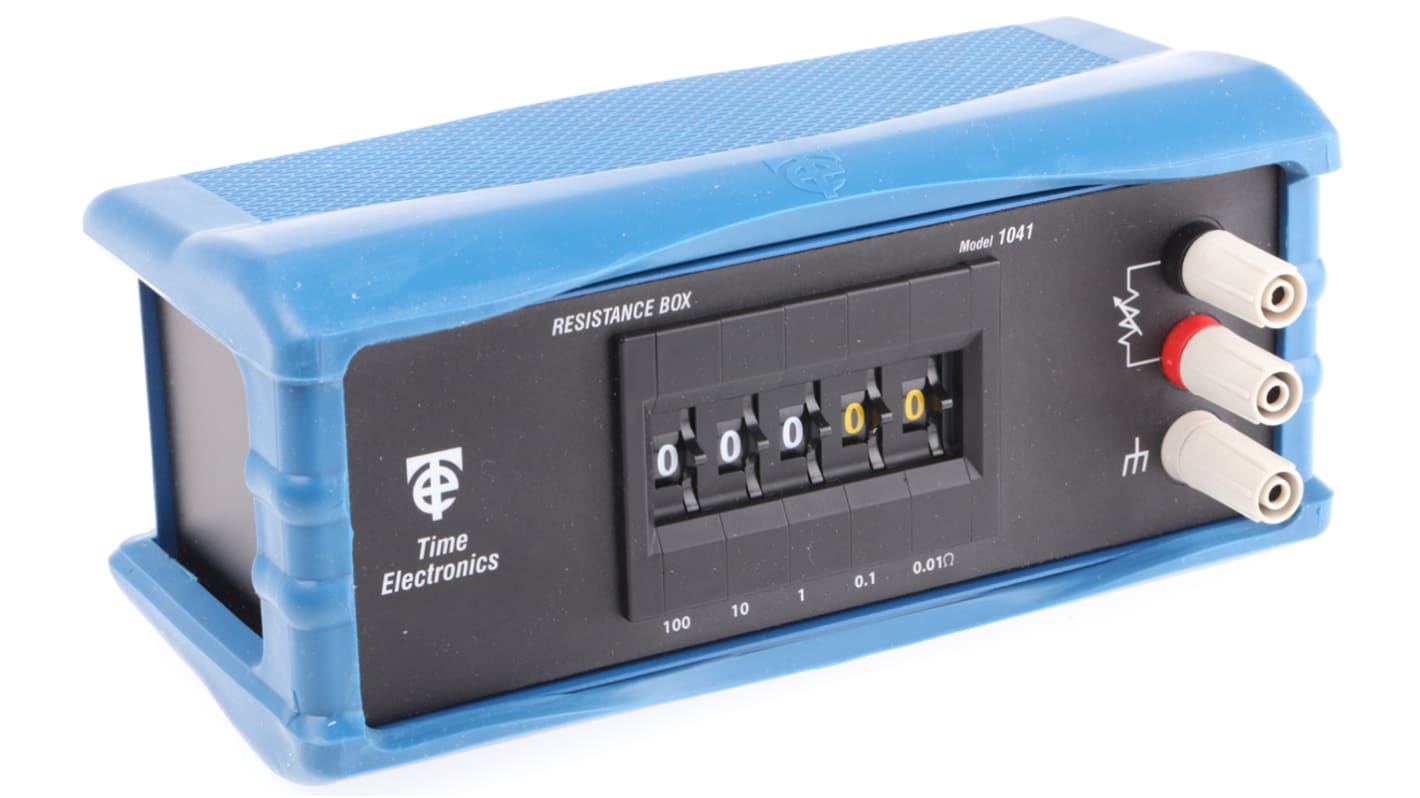

Time Electronics Model 1041 Low Ohm Decade Resistance Box

Time Electronics 1041 is a precision low ohm resistance box designed for general laboratory work, including platinum resistance thermometry. The 1041 is compact and durable. It is housed in a robust metal case with removable protective rubber cover which facilitates use not only in the laboratory but also in the field. Excellent accuracy is achieved through using high stability metal film resistors. The 5-digit thumbwheel switch enables simple and precise setting with a clear indication of the resistance value.

Range/resolution 0 - 1kΩ / 0.01 Ω steps
High accuracy
Clear visual indication, using colour-coded digits
High stability
Low temperature coefficient 50 ppm/°C
Safety terminals (compatible with 4mm shrouded plugs, standard plugs, bare wires, spade terminals)
Residual resistance <60 mΩ
Power Rating 1W per resistor
Voltage Rating: Maximum 100 V DC/AC RMS
Suitable for PRT/RTD
Removable protective cover
Dimensions 215(W) x 100(H) x 120(D) mm
Weight 1kg

Specifications
Attribute Value
Decade Box Type Resistance
Calibrated UKAS
Resistance Resolution 0.01Ω
Best Maximum Resistance Accuracy ±10%
Best Minimum Resistance Accuracy ±0.1%
Residual Resistance 60mΩ
Power Rating 1W
Temperature Coefficient 50ppm/°C
Dimensions 120 x 215 x 100mm
Height 100mm
Weight 1kg
Minimum Resistance Measurement
Width 215mm
Length 120mm
Absolute Maximum Resistance Measurement 1kΩ
28 In stock for delivery within 2 working days
Price Each
£ 487.30
(exc. VAT)
£ 584.76
(inc. VAT)
Units
Per unit
1 +
£487.30
Not available for guaranteed pre 9am/10am delivery
