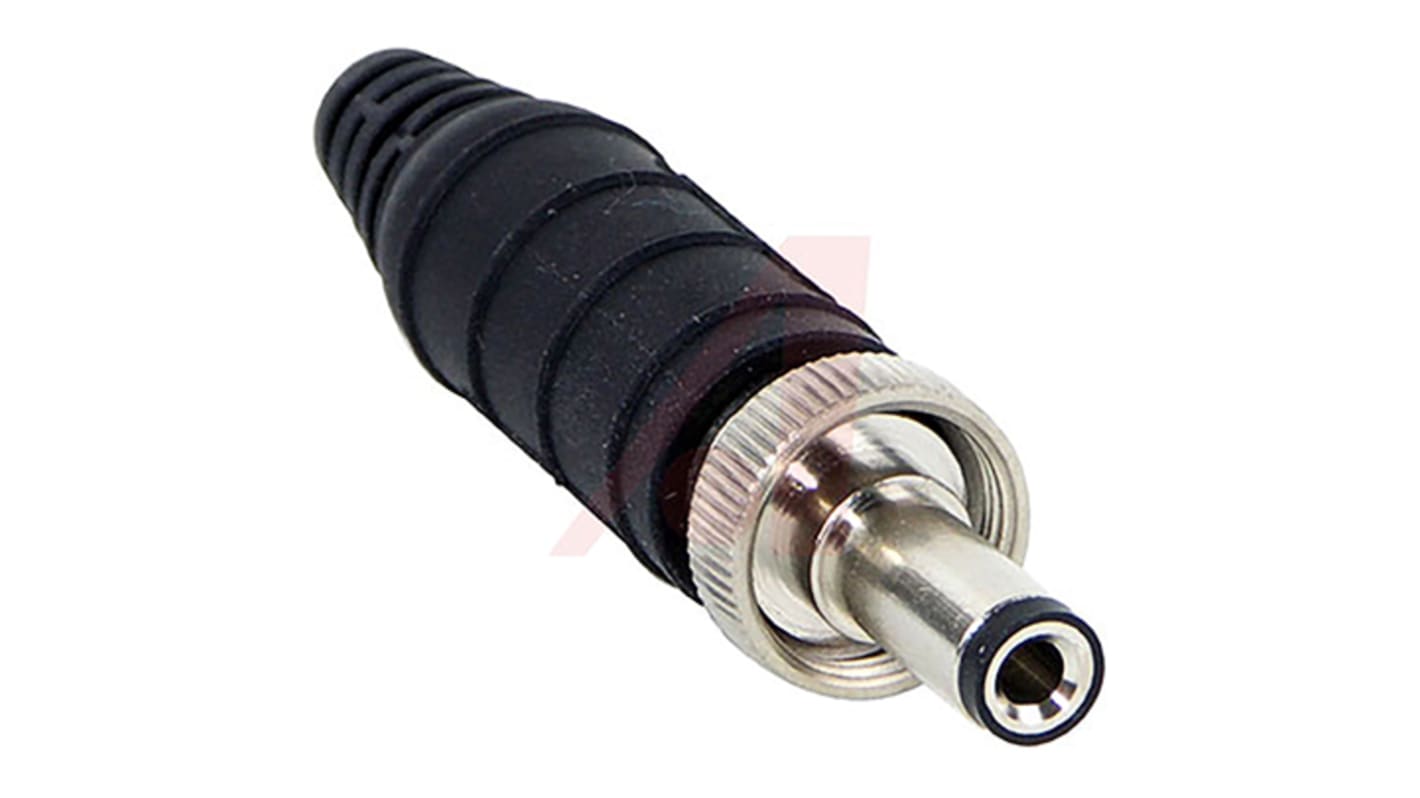

Switchcraft, 767K DC Plug, Cable Mount, length 57mm, Tin, IP68

RS Stock No.:: 878-7222
Mfr. Part No.:: 767KS12
Brand:: Switchcraft

Switchcraft, 767K DC Plug, Cable Mount, length 57mm, Tin, IP68

75 In stock - FREE next working day delivery available

10 available from Europe for delivery within 1 working day(s).

Added

Price Each

£15.84

(exc. VAT)

£19.01

(inc. VAT)

Units	Per unit
1 +	£15.84

RS Stock No.:: 878-7222
Mfr. Part No.:: 767KS12
Brand:: Switchcraft

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: US

Product Details

Switchcraft DC Power Plugs, 2.1mm and 2.5mm

Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket.

Features and Benefits

• Current rating 5A at 12VDC
• Over 10,000 mating cycles
• Plug Sleeve and Pin - Nickel-Plated Copper Alloy
• Lock-Ring Thread Size - 5/16 - 32 UNEF 2B
• Finger Insulator and handle - Moulded Plastic
• Insulating Washers - Rigid Plastic
• Sleeve Terminal - Electro-Tinned Copper Alloy
• Handle Thread Size: 5/16 - 24 UNF 2B

Specifications

Attribute	Value
DC Power Connector Type	DC Plug
Inner Diameter	2.1mm
Body Orientation	Straight
Length	57mm
Mounting Type	Cable Mount
IP Rating	IP68
Minimum Cable Diameter	3.2mm
Maximum Cable Diameter	3.8mm
Contact Plating	Tin
Contact Material	Copper Alloy
Series	767K
