Switchcraft, L7 DC Socket Rated At 5.0A, 30 V dc, Panel Mount, length 20.8mm, Silver
- RS Stock No.:
- 878-2606
- Mfr. Part No.:
- L712A
- Brand:
- Switchcraft
808 In stock - FREE next working day delivery available
95 available from Europe for delivery within 1 working day(s).
Added
Price Each
£10.48
(exc. VAT)
£12.58
(inc. VAT)
| Units | Per unit |
| 1 + | £10.48 |
- RS Stock No.:
- 878-2606
- Mfr. Part No.:
- L712A
- Brand:
- Switchcraft
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Switchcraft Chassis Mount Power Jack Sockets

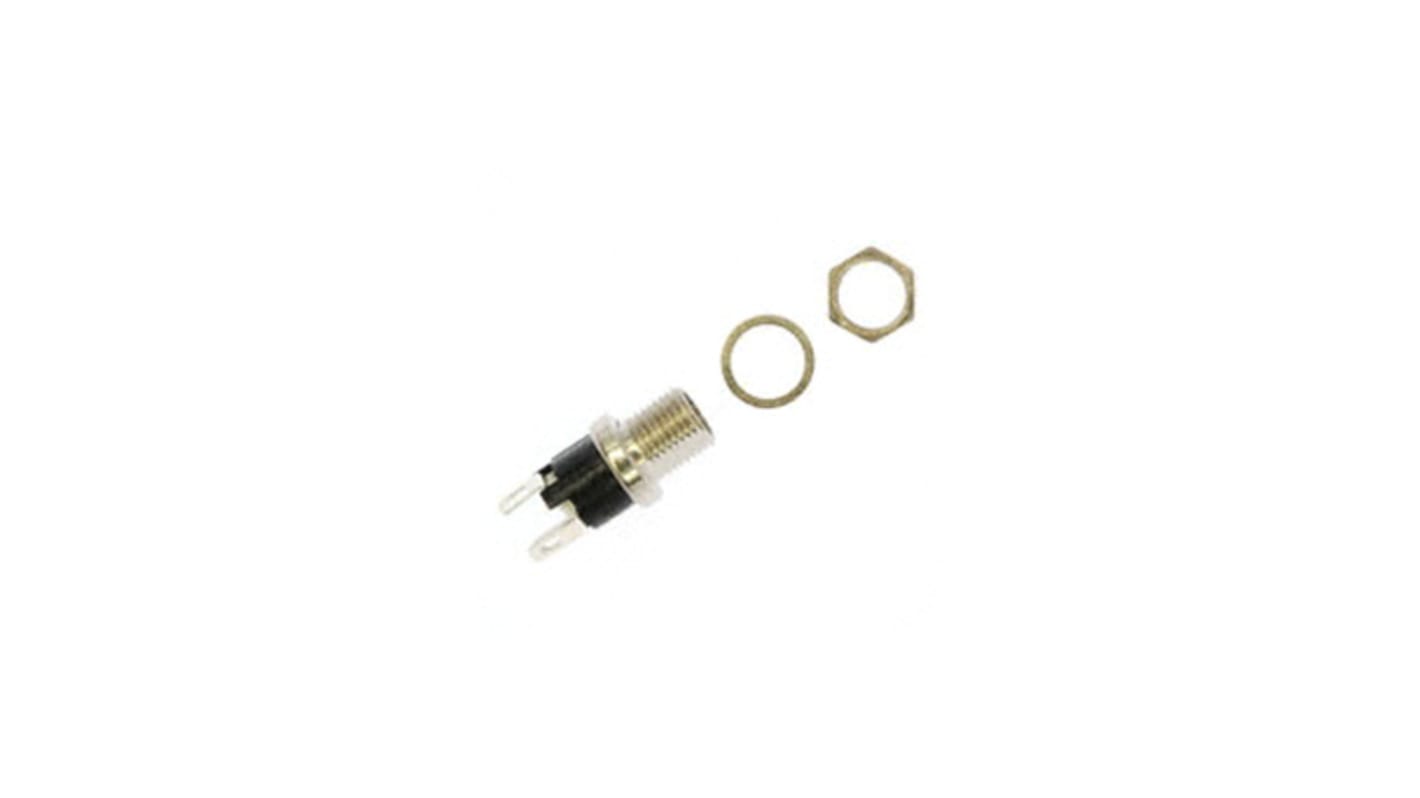

Switchcraft straight DC power jacks feature threaded bushings to allow use of both standard and locking power plugs, suitable for panel mount applications, fitted with hex nut and washer, available with a range of mating pin diameters
Features and Benefits
• Right-angle power jack for PC mounting
• Kinked terminals allow snap-in PC board mounting
• Split centre pin shaped to hold mating plug firmly
• Current rating 5A at 12VDC
• Contact resistance 0.01 Ohms max.
• Dielectric withstand voltage 500 V ac max
• Over 10,000 mating cycles
• Panel thickness 3.1mm
• Kinked terminals allow snap-in PC board mounting
• Split centre pin shaped to hold mating plug firmly
• Current rating 5A at 12VDC
• Contact resistance 0.01 Ohms max.
• Dielectric withstand voltage 500 V ac max
• Over 10,000 mating cycles
• Panel thickness 3.1mm
Specifications
Attribute | Value |
|---|---|
| DC Power Connector Type | DC Socket |
| Current Rating | 5.0A |
| Inner Diameter | 2.5mm |
| Body Orientation | Straight |
| Outer Diameter | 5.5mm |
| Voltage Rating | 30 V dc |
| Length | 20.8mm |
| Width | 9.0mm |
| Mounting Type | Panel Mount |
| Pin Diameter | 1.3mm |
| Contact Plating | Silver |
| Contact Material | Copper Alloy |
| Series | L7 |
