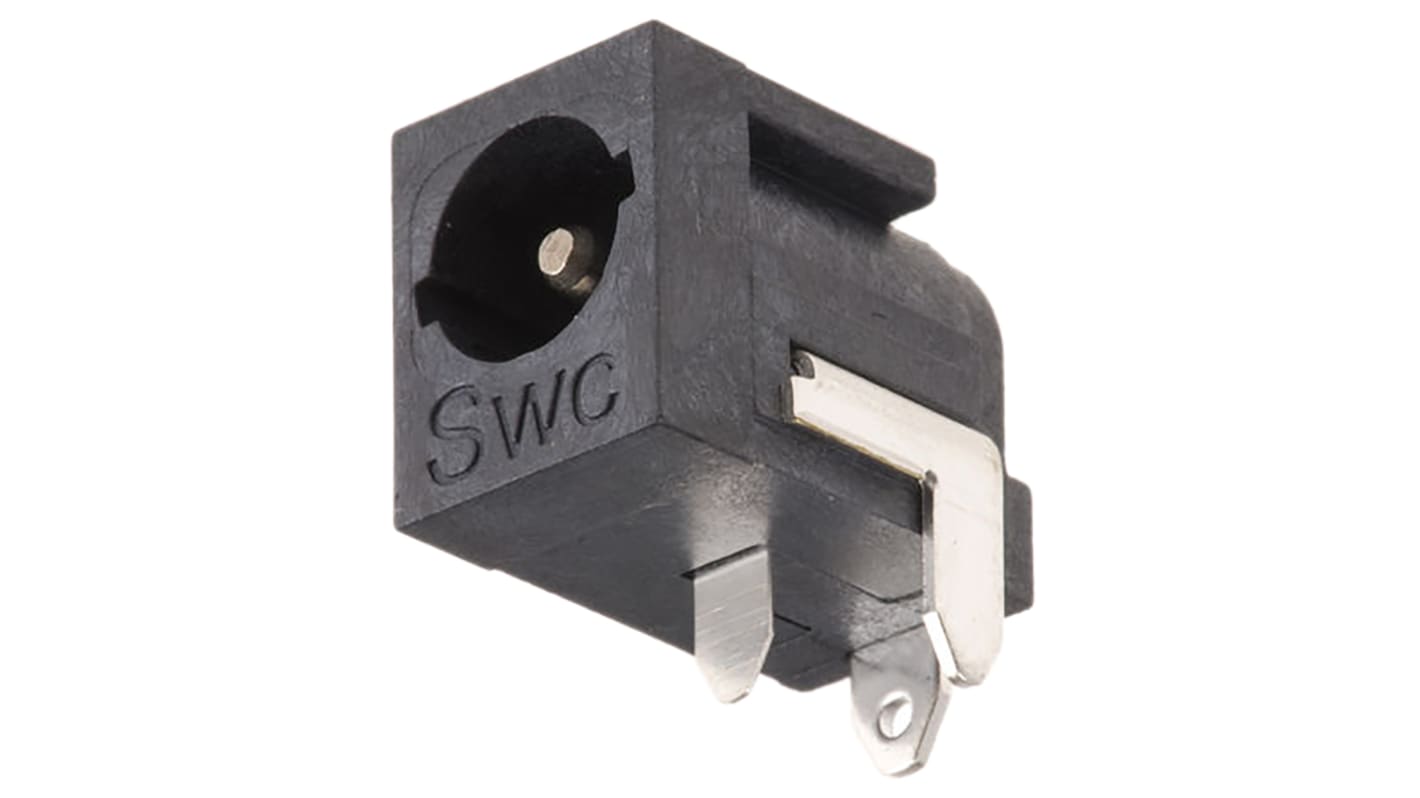

Switchcraft Through Hole DC Power Socket Right Angle 5A

  • RS Stock No. 705-1541
  • Mfr. Part No. RAPC722BK
  • Brand Switchcraft
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Locking Right Angle Power Jacks & Plugs

Suitable for where a quick and secure, space saving board mounting method is required
uses precision tolerancing to hold plug and jack together
Provides additional security by using keyed plugs and slotted jacks to firmly lock the components in place

Plugs & Sockets

Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

Specifications
Attribute Value
Current Rating 5.0A
Body Orientation Right Angle
Length 9.4mm
Width 10.9mm
Mounting Type Panel Mount
Contact Plating Nickel
Contact Material Copper Alloy
29 In stock - FREE next working day delivery available
Price Each
£ 3.97
(exc. VAT)
£ 4.76
(inc. VAT)
Units
Per unit
1 - 9
£3.97
10 - 49
£3.77
50 - 99
£3.57
100 +
£3.38
