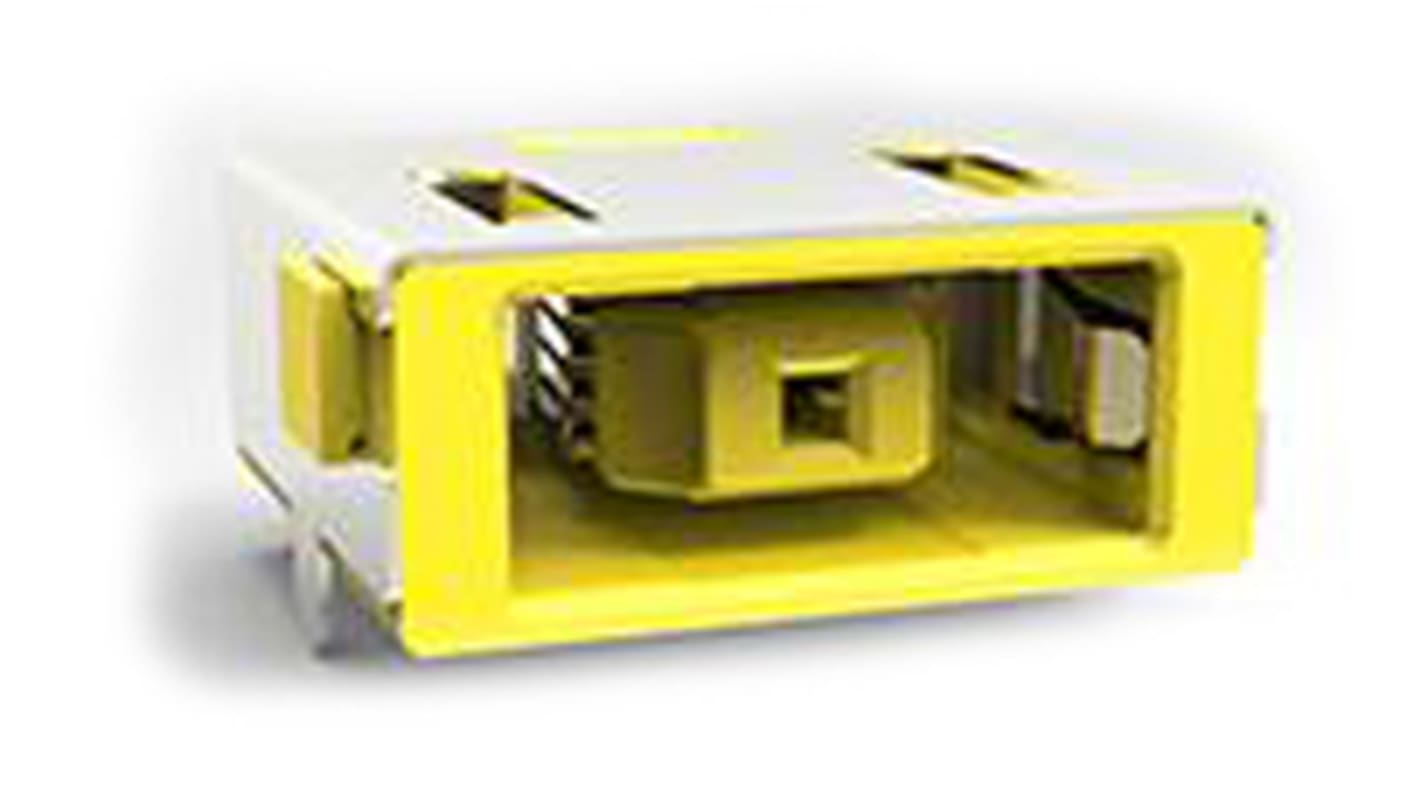

TE Connectivity PCB Mount DC Power Socket DC-IN Series, Right Angle 7A

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

TE Connectivity Rectangular DC Power Jacks, DIP Type

Plugs & Sockets

Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

Specifications
Attribute Value
Current Rating 7.0A
Body Orientation Right Angle
Voltage Rating 25.0 V
Width 14.25mm
Length 16.2mm
Mounting Type PCB Mount
Contact Plating Gold, Tin
Contact Material Copper Alloy
Series DC-IN
Available to back order for despatch 10/11/2020
Price 1 Bag of 5
£ 6.90
(exc. VAT)
£ 8.28
(inc. VAT)
Bag(s)
Per Bag
Per unit*
1 - 9
£6.90
£1.38
10 - 49
£6.70
£1.34
50 +
£6.50
£1.30
*price indicative
