Maxon Brushless DC Motor Controller, 30 W, 12 V dc, 59 mNm, 4370 rpm, 4mm Shaft Diameter

  • RS Stock No. 420-5192
  • Mfr. Part No. 200142
  • Brand Maxon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

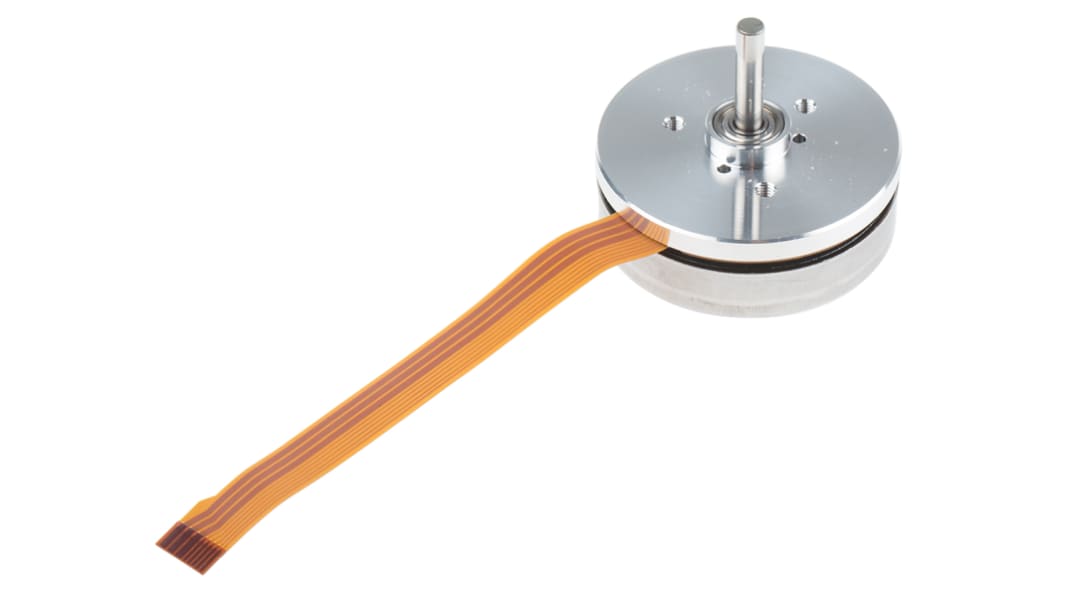

45mm Miniature dc Motor, Model EC45 Flat

Brushless DC motors of flat design with a low profile body
Speed constant: 374rpm/V
Available in 2 versions: Standard, stock no. 420-4997, or with Hall effect sensors, stock nos. 420-5192 and 495-063
Standard version is suitable for conventional voltage dependent applications
Hall effect versions ideal for feedback speed controlled applications
Suitable controller for the standard version Maxon controller AECS35-3 (stock no. 418-4051)
Suitable controller for the Hall effect versions Maxon controller DEC50-5 (stock no. 418-4045)
To facilitate connection of the motor to the controller, the use of a motor connection unit is recommended
Utilise the 4 way unit (stock no. 420-5091) for the standard motor 420-4997 and the 8 way unit (stock no. 420-5108) for motor (stock no. 420-5192)

Specifications
Attribute Value
Supply Voltage 12 V dc
DC Motor Type Brushless
Power Rating 30 W
Output Speed 4370 rpm
Shaft Diameter 4mm
Maximum Output Torque 59 mNm
Dimensions 42.9 (Dia.) x 16.4 mm
Current Rating 2.14 A
Length 16.4mm
2 In stock - FREE next working day delivery available
Price Each
£ 74.21
(exc. VAT)
£ 89.05
(inc. VAT)
Units
Per unit
1 - 2
£74.21
3 - 4
£71.97
5 +
£69.74
