Artesyn Embedded Technologies ASA DC-DC Converter, ±12V dc/ 250mA Output, 18 → 75 V dc Input, 6W, Through Hole,
- RS Stock No.:
- 823-4661
- Mfr. Part No.:
- ASA00BB36-LS
- Brand:
- Artesyn Embedded Technologies
Available to back order for despatch when stock is available
Added
Price Each
£25.35
(exc. VAT)
£30.42
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £25.35 |
| 5 - 9 | £24.34 |
| 10 - 24 | £23.58 |
| 25 - 49 | £22.31 |
| 50 + | £20.79 |
- RS Stock No.:
- 823-4661
- Mfr. Part No.:
- ASA00BB36-LS
- Brand:
- Artesyn Embedded Technologies
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

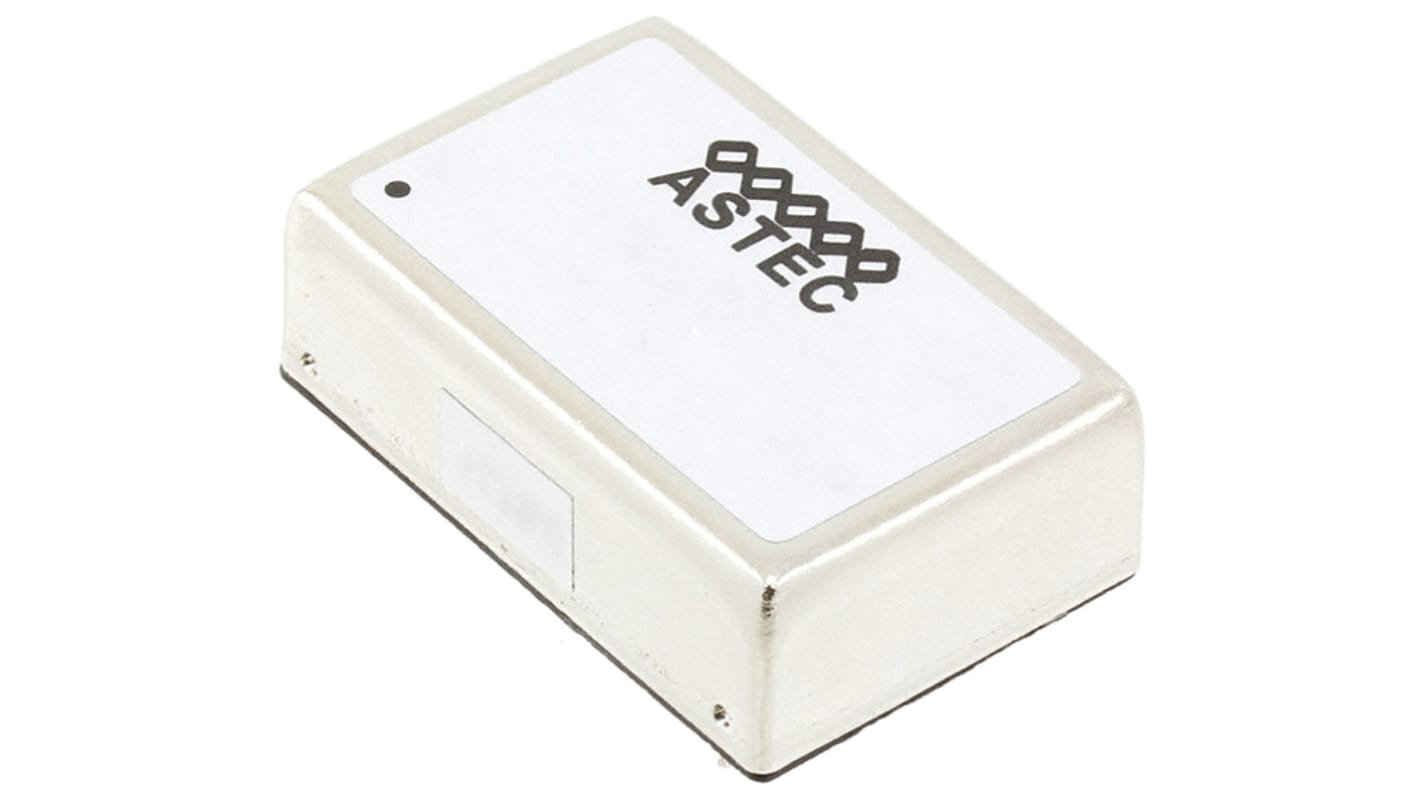

Astec 6W Single Output Regulated Isolated DC-DC Converter - ASA-6W Series
6W regulated, isolated DC-DC converter with a wide 4:1 input range and a 1.25in x 0.8in package. This isolated DC-DC converter is available with single or dual outputs.
Ultra-wide 4:1 input voltage range
Regulated outputs
1.5kV input/output isolation
Built-in filter meets EN 55022, Class A, without external components
Under voltage lockout, over current and short circuit protection with auto restart
Shielded metal case with insulated baseplate
Demonstrated MTBF >1 million hours
24-pin DIP with industry standard pin-out
Regulated outputs
1.5kV input/output isolation
Built-in filter meets EN 55022, Class A, without external components
Under voltage lockout, over current and short circuit protection with auto restart
Shielded metal case with insulated baseplate
Demonstrated MTBF >1 million hours
24-pin DIP with industry standard pin-out
Note
Operating temperature is without derating.
Standards
UL60950-1, cUL60950-1, EN60950, IEC60950, CE Mark
Approvals
UL, cUL, CE
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 18 → 75 V dc |
| Power Rating | 6W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 250mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | DIP |
| Isolation Voltage | 1.5kV dc |
| Length | 31.75mm |
| Depth | 10.16mm |
| Series | ASA |
| Load Regulation | <2% |
| Minimum Temperature | -40°C |
| Efficiency | 81% |
| Maximum Temperature | +71°C |
