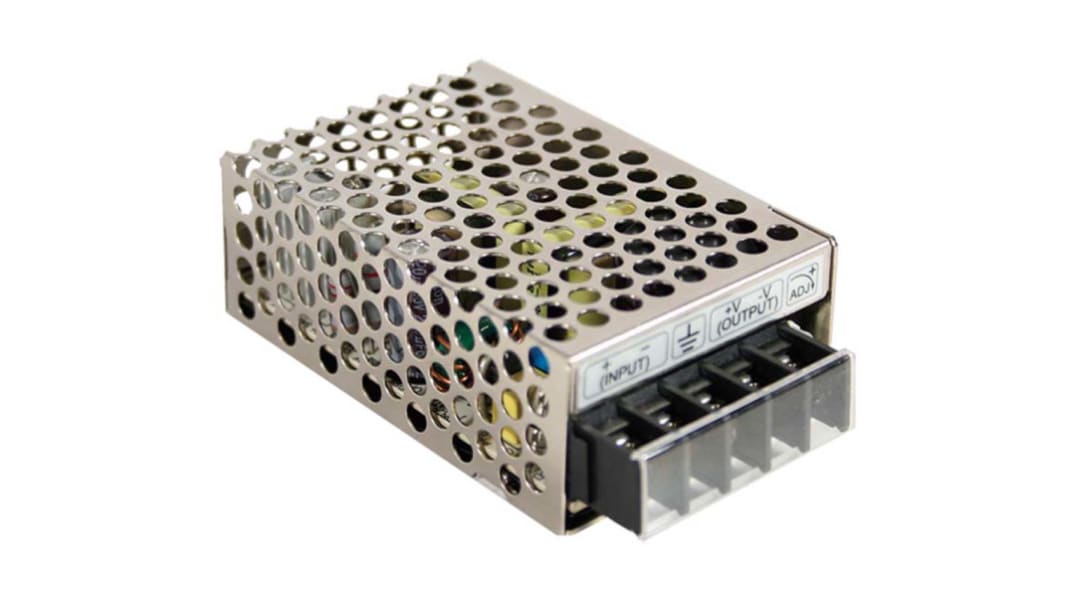

MEAN WELL DC-DC Converter, 24V dc/ 625mA Output, 18 → 36 V dc Input, 15W, Chassis Mount, +60°C Max Temp -10°C
- RS Stock No.:
- 678-3559
- Mfr. Part No.:
- SD-15B-24
- Brand:
- MEAN WELL
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£17.10
(exc. VAT)
£20.52
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £17.10 |
| 5 - 9 | £16.67 |
| 10 - 24 | £16.25 |
| 25 - 49 | £15.82 |
| 50 + | £14.52 |
- RS Stock No.:
- 678-3559
- Mfr. Part No.:
- SD-15B-24
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
Mean Well (SD-15A-XX) Single Output Enclosed Regulated DC-DC Converter
The SD-15 series by Mean Well offers you a reliable device capable of converting a DC source from one voltage level to another via regulated outputs. Easy to install & maintain, brings you reliable industrial power conversion. The SD-15 meets rigorous industrial standards such as EN 55022 Class B.
Features and benefits:
• 2:1 wide input range
• Great protection against short-circuits and overloads/voltages
• Low ripple noise
• Adjustable output voltages for the three types are; 24 V dc is 21- 26.4 V dc; 12 V dc is 10.8 - 13.2 V dc and 5 V dc is 4.75 - 5.5 V dc
• Built-in EMI filter
• LED power-on indicator
• 2-year manufacturer warranty
• Great protection against short-circuits and overloads/voltages
• Low ripple noise
• Adjustable output voltages for the three types are; 24 V dc is 21- 26.4 V dc; 12 V dc is 10.8 - 13.2 V dc and 5 V dc is 4.75 - 5.5 V dc
• Built-in EMI filter
• LED power-on indicator
• 2-year manufacturer warranty
Note
De-rating below 0 and above 40°C.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 18 → 36 V dc |
| Power Rating | 15W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 625mA |
| Mounting Type | Chassis Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Output Voltage Adjustment Range | 21.6 → 26.4V |
| Isolation Voltage | 2kV ac |
| Width | 51mm |
| Length | 78mm |
| Depth | 28mm |
| Load Regulation | ±0.2% |
| Maximum Temperature | +60°C |
| Standards Met | 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A |
| Minimum Temperature | -10°C |
