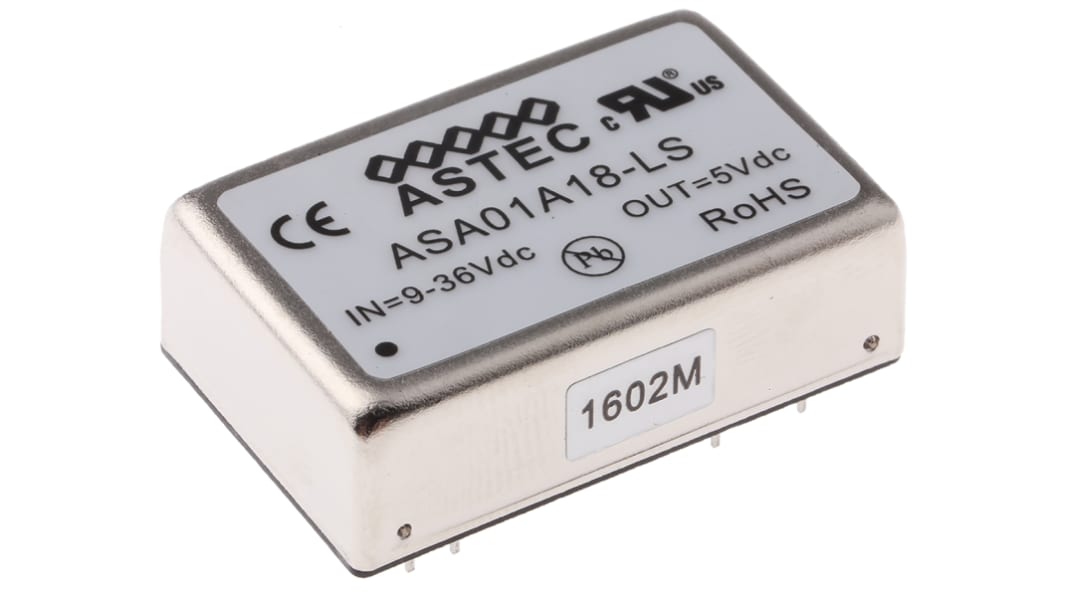

Artesyn Embedded Technologies ASA DC-DC Converter, 5V dc/ 1A Output, 9 → 36 V dc Input, 5W, Through Hole, +71°C
- RS Stock No.:
- 173-9212
- Mfr. Part No.:
- ASA01A18-LS
- Brand:
- Artesyn Embedded Technologies
2 In stock - FREE next working day delivery available
Added
Price 1 Tube of 10
£196.47
(exc. VAT)
£235.76
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £196.47 | £19.647 |
| 5 - 9 | £191.01 | £19.101 |
| 10 - 24 | £185.85 | £18.585 |
| 25 - 49 | £180.96 | £18.096 |
| 50 + | £176.32 | £17.632 |
| *price indicative | ||
- RS Stock No.:
- 173-9212
- Mfr. Part No.:
- ASA01A18-LS
- Brand:
- Artesyn Embedded Technologies
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
Astec 6W Single Output Regulated Isolated DC-DC Converter - ASA-6W Series
6W regulated, isolated DC-DC converter with a wide 4:1 input range and a 1.25in x 0.8in package. This isolated DC-DC converter is available with single or dual outputs.
Ultra-wide 4:1 input voltage range
Regulated outputs
1.5kV input/output isolation
Built-in filter meets EN 55022, Class A, without external components
Under voltage lockout, over current and short circuit protection with auto restart
Shielded metal case with insulated baseplate
Demonstrated MTBF >1 million hours
24-pin DIP with industry standard pin-out
Regulated outputs
1.5kV input/output isolation
Built-in filter meets EN 55022, Class A, without external components
Under voltage lockout, over current and short circuit protection with auto restart
Shielded metal case with insulated baseplate
Demonstrated MTBF >1 million hours
24-pin DIP with industry standard pin-out
Note
Operating temperature is without derating.
Standards
UL60950-1, cUL60950-1, EN60950, IEC60950, CE Mark
Approvals
UL, cUL, CE
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 9 → 36 V dc |
| Power Rating | 5W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 1A |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP |
| Isolation Voltage | 1.5kV dc |
| Depth | 10.16mm |
| Length | 31.75mm |
| Series | ASA |
| Load Regulation | ±0.5% |
| Maximum Temperature | +71°C |
| Minimum Temperature | -40°C |
| Efficiency | 81% |
