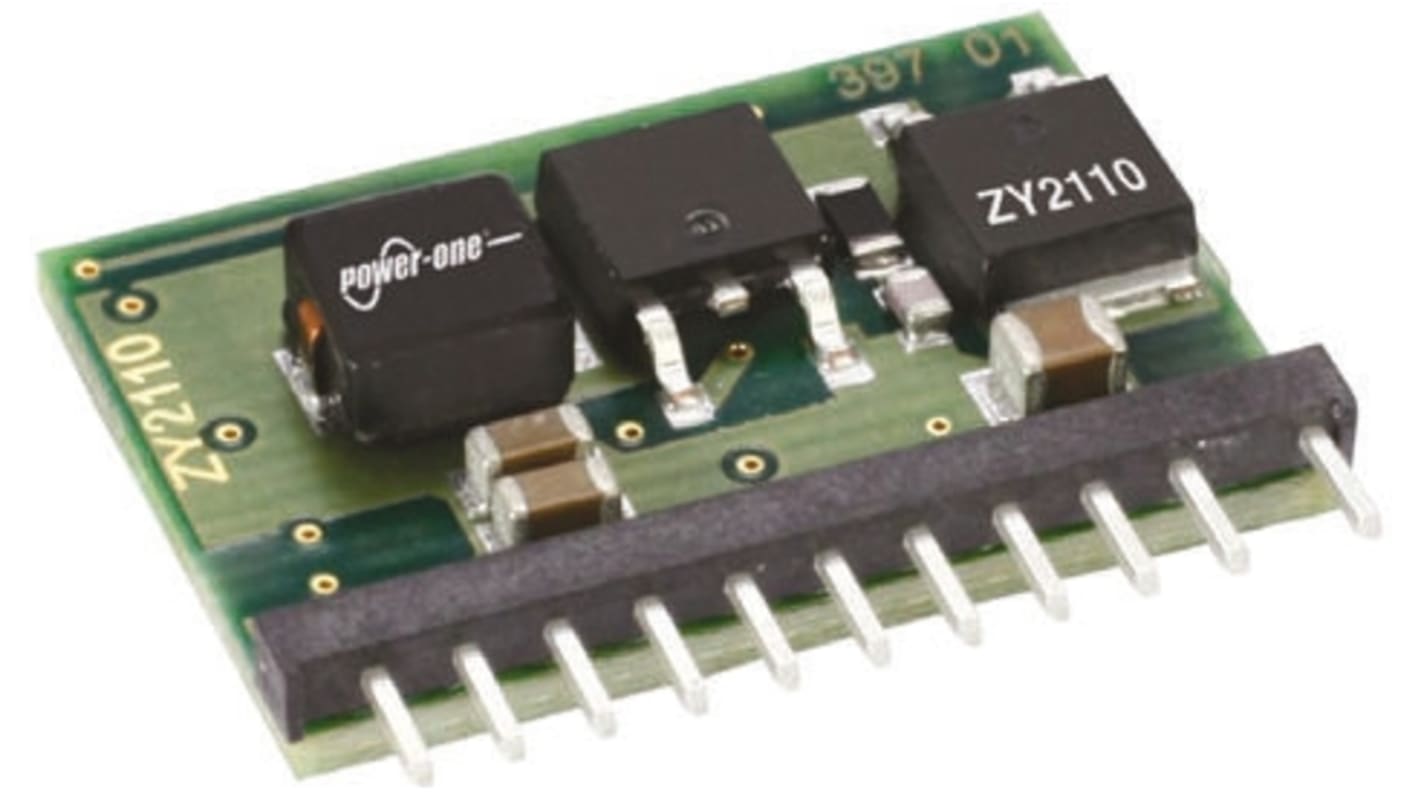

Power-One Non-Isolated DC-DC Converter, 0.5 → 5.5V dc/ 10A Output, 8 → 14 V dc Input, Through Hole, +70°C
- RS Stock No.:
- 563-154P
- Mfr. Part No.:
- ZY2110-G
- Brand:
- Power-One
Bulk discount available
Subtotal 5 units (supplied in a tray)*
£57.15
(exc. VAT)
£68.60
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 5 - 9 | £11.43 |
| 10 - 24 | £10.83 |
| 25 - 49 | £10.23 |
| 50 + | £9.62 |
*price indicative
- RS Stock No.:
- 563-154P
- Mfr. Part No.:
- ZY2110-G
- Brand:
- Power-One
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power-One | |
| Output Voltage | 0.5 → 5.5V dc | |
| Input Voltage Range | 8 → 14 V dc | |
| Output Current | 10A | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Depth | 21.36mm | |
| Length | 30.48mm | |
| Width | 6.7mm | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand Power-One | ||
Output Voltage 0.5 → 5.5V dc | ||
Input Voltage Range 8 → 14 V dc | ||
Output Current 10A | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Package SIP | ||
Depth 21.36mm | ||
Length 30.48mm | ||
Width 6.7mm | ||
Maximum Temperature +70°C | ||
Minimum Temperature 0°C | ||
- COO (Country of Origin):
- MA
