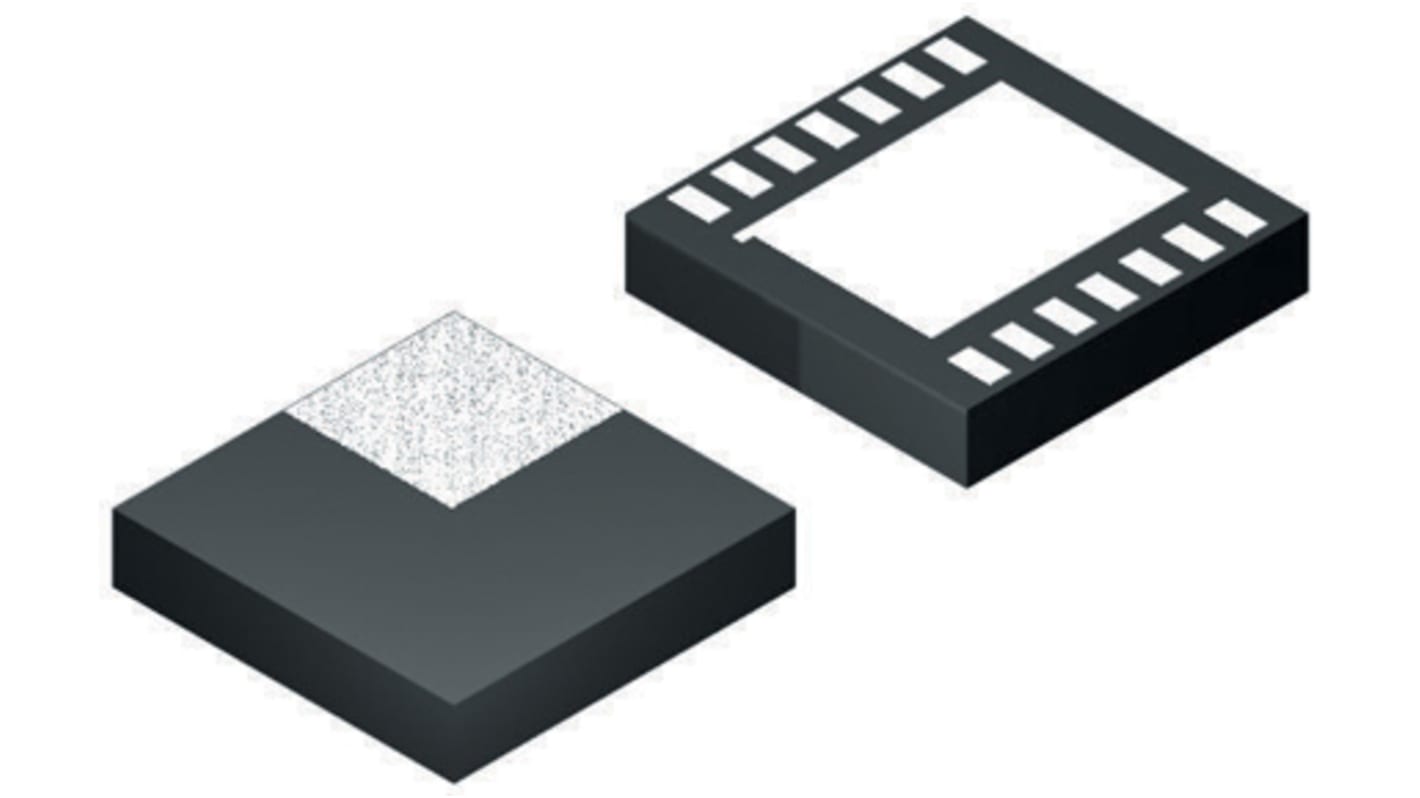

Texas Instruments LM2673SD-ADJ/NOPB, 1-Channel, Step Down DC-DC Converter, Adjustable 14-Pin, LLP
- RS Stock No.:
- 761-4750
- Mfr. Part No.:
- LM2673SD-ADJ/NOPB
- Brand:
- Texas Instruments
Discontinued product
- RS Stock No.:
- 761-4750
- Mfr. Part No.:
- LM2673SD-ADJ/NOPB
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
SIMPLE SWITCHER® Step-Down Regulators, LM267x Series
SIMPLE SWITCHER® Regulators, Texas Instruments
Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
Specifications
Attribute | Value |
|---|---|
| Minimum Output Voltage | 1.2 V |
| Maximum Output Voltage | 37 V |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 40 V |
| Maximum Output Current | 3A |
| Converter Type | Step Down |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 0.26 MHz |
| Mounting Type | Surface Mount |
| Package Type | LLP |
| Pin Count | 14 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Switching Regulator | Yes |
| Dimensions | 5 x 3.2 x 1mm |
| Efficiency | 88% |
| Width | 3.2mm |
| Height | 1mm |
| Length | 5mm |
