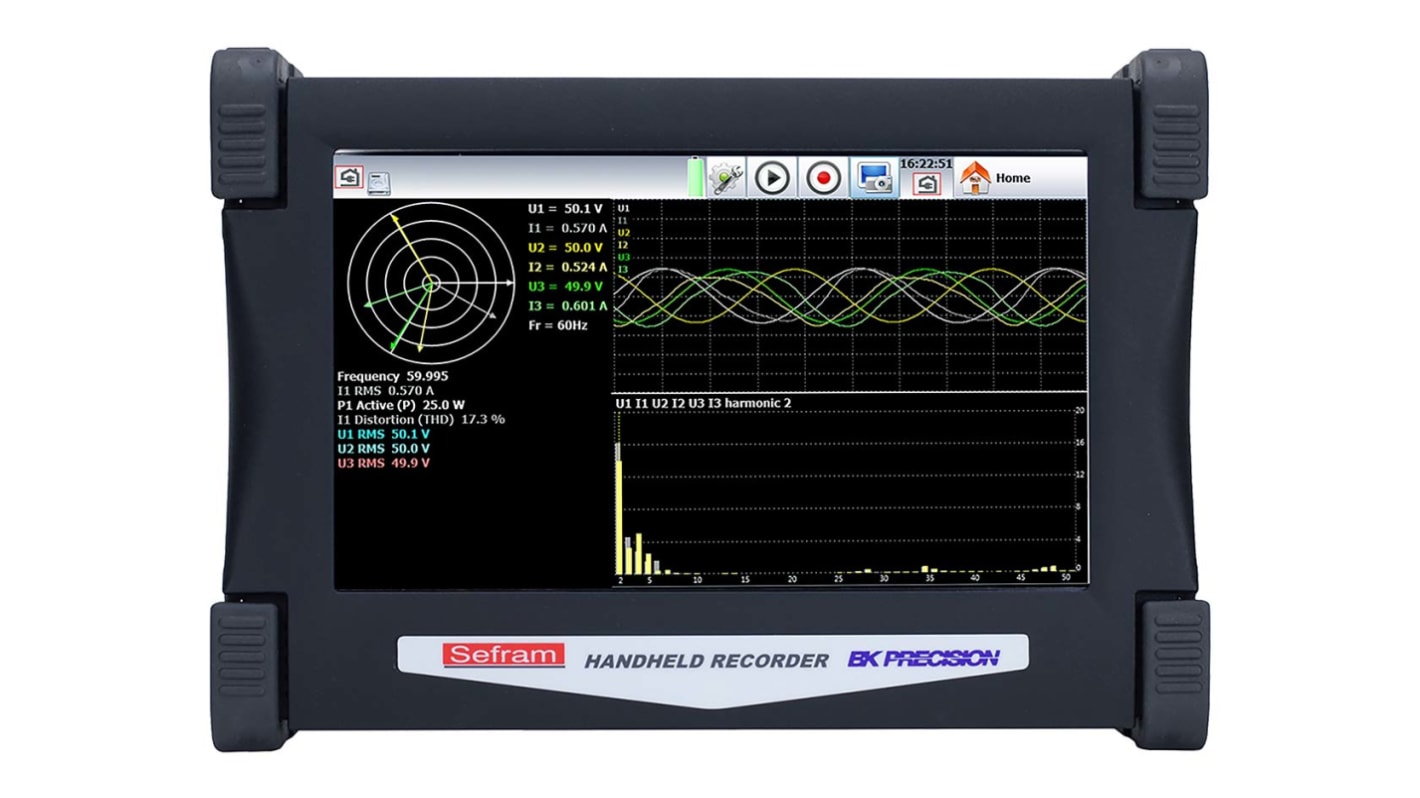

Sefram DAS60 Data Acquisition, 6 Channel(s), Ethernet, USB, 1Msps, 14 bit
- RS Stock No.:
- 175-2549
- Mfr. Part No.:
- DAS60
- Brand:
- Sefram
2 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£5,861.60
(exc. VAT)
£7,033.92
(inc. VAT)
| Units | Per unit |
| 1 + | £5,861.60 |
- RS Stock No.:
- 175-2549
- Mfr. Part No.:
- DAS60
- Brand:
- Sefram
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Sefram Data Acquisition
The Sefram data acquisition solution has a sampling rate of 2Msps with 6 isolated channels, 16 logical inputs and 2 Pt100/Pt1000 inputs. It has a special function of power analysis, which can record all your parameters on a Single-Phase and Three-Phase network up to 400Hz.
Features and Benefits
100kHz bandwidth
10in TFT panoramic LCD touch screen
110mm Thermal printer module
14-bit resolution
16 logical channels
32 word memory
64GB internal hard disk
Autonomy: up to 9.5 hours
Interfaces: 2 x USB, Ethernet
10in TFT panoramic LCD touch screen
110mm Thermal printer module
14-bit resolution
16 logical channels
32 word memory
64GB internal hard disk
Autonomy: up to 9.5 hours
Interfaces: 2 x USB, Ethernet
Applications
Maintenance/failure diagnostic on electrical systems
Power analysis for single-phase and three-phase systems
voltage, current, temperature recording and monitoring
Power analysis for single-phase and three-phase systems
voltage, current, temperature recording and monitoring
Certifications
IEC 1010 CAT III 600V
Options
Note
Supplied with
Included: main adaptor 100/240V, manual (CD-ROM), rugged carrying case, set of red and black cables, aligator clips, quick banana plug
Specifications
Attribute | Value |
|---|---|
| Number of Input Channels | 6 |
| Sampling Rate | 1Msps |
| Resolution | 14 bit |
| Connectivity | Ethernet, USB |
| On Board Memory | 64000MB |
| Power Source | Battery, Mains |
| Input Type | Analogue, Digital |
| Output Type | Digital |
| Battery Type | Li-Ion |
| Battery Life | 4 h, 9-1/2 h |
| Weight | 2.5kg |
| Height | 105mm |
| Maximum Operating Temperature | +40°C |
| Model Number p | DAS60 |
| Length | 295mm |
| Width | 210mm |
| Minimum Operating Temperature | 0°C |
