Keysight Technologies Data Acquisition External Board
- RS Stock No.:
- 195-3177
- Mfr. Part No.:
- L4445A
- Brand:
- Keysight Technologies
Discontinued product
- RS Stock No.:
- 195-3177
- Mfr. Part No.:
- L4445A
- Brand:
- Keysight Technologies
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

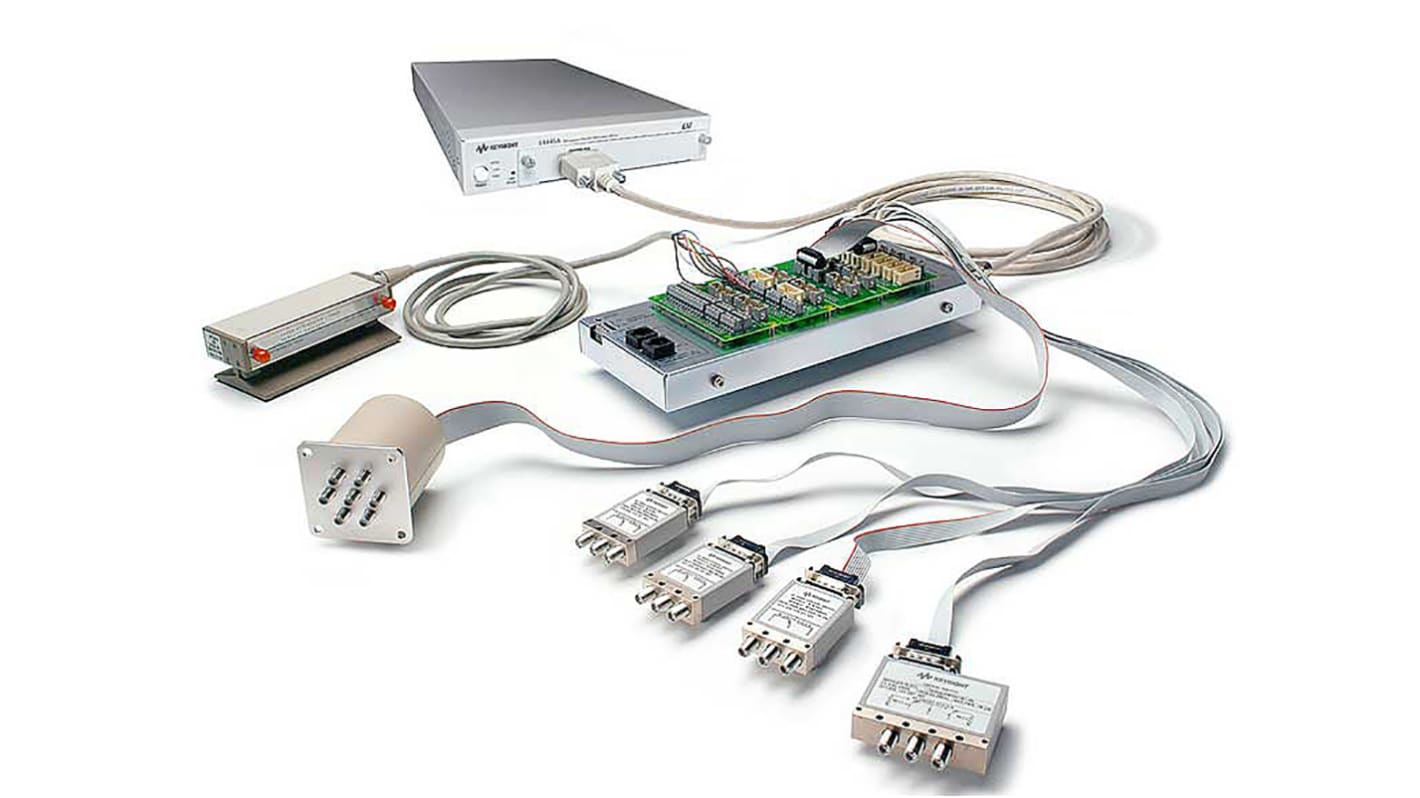

The Keysight L4445A provides digital outputs to control switches, attenuators and other devices. The outputs can also be used to drive LEDs that to indicate the switch position. Digital inputs can be used to read back the actual position of the switch or attenuator. The L4445A provides power and control signals for many of the most popular microwave switches and attenuators.The Y1150A-Y1155A distribution boards enable ease of wiring to the external switches. One L4445A with accessories can drive up to 64 switch coils, that's 32 SPDT switches. The L4445A supports extended channels with additional 34945EXTs.
Fully-featured graphical web interface
Control of most popular microwave switches and attenuators
Expandable with 34945EXT
Distribution boards for ease of wiring
Switch read back capabilities
External power option for simultaneous switching
Software drivers for most common programming environments
Control of most popular microwave switches and attenuators
Expandable with 34945EXT
Distribution boards for ease of wiring
Switch read back capabilities
External power option for simultaneous switching
Software drivers for most common programming environments
Specifications
Attribute | Value |
|---|---|
| Accessory Type | External Board |
