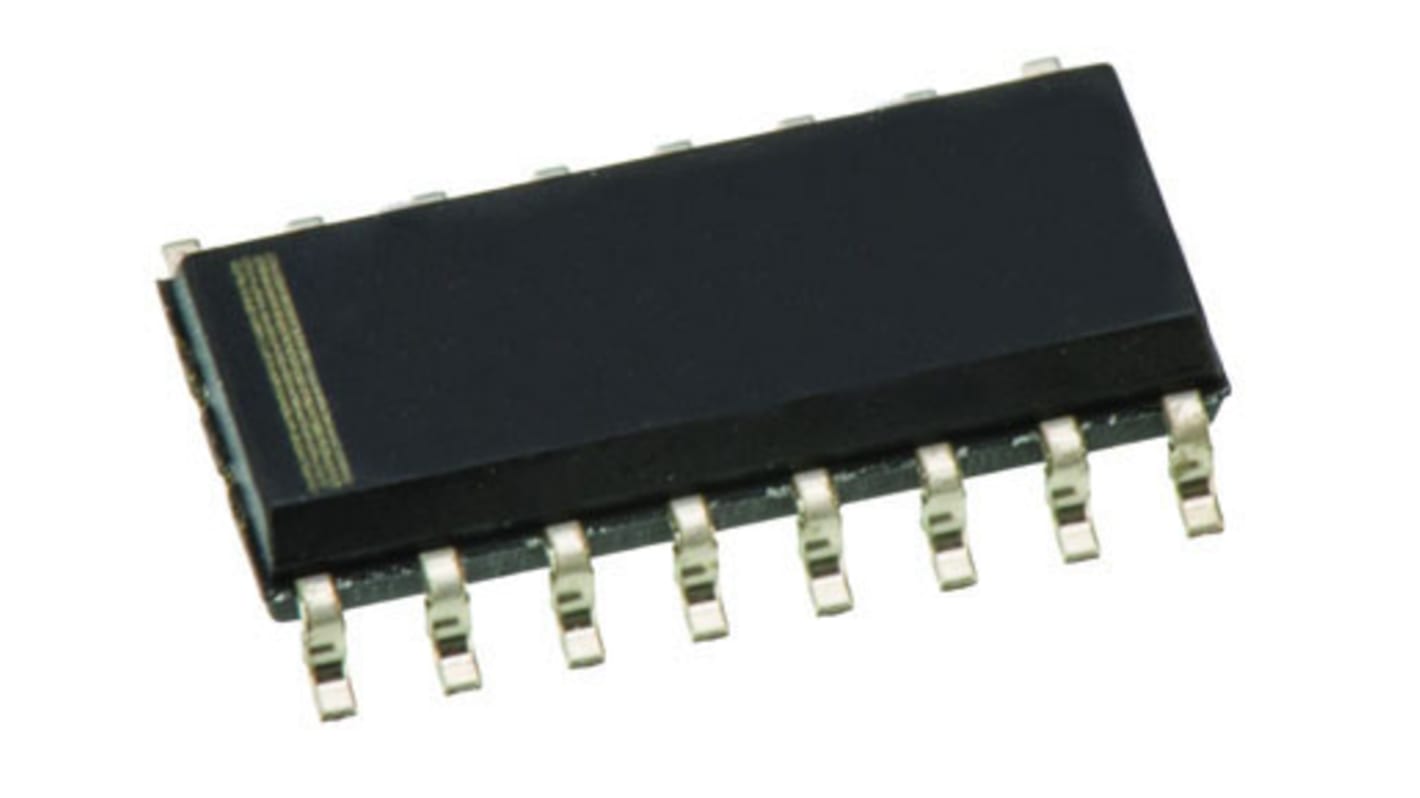

Texas Instruments ULQ2003ADR, 7-element NPN Darlington Pair, 500 mA 50 V, 16-Pin SOIC
- RS Stock No.:
- 162-7587
- Mfr. Part No.:
- ULQ2003ADR
- Brand:
- Texas Instruments
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 2500)
£0.168
(exc. VAT)
£0.202
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.168 | £420.00 |
| *price indicative | ||
- RS Stock No.:
- 162-7587
- Mfr. Part No.:
- ULQ2003ADR
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
Darlington Transistor Arrays, Texas Instruments
A range of Darlington transistor arrays from Texas Instruments suitable for a wide range of medium to high current driver applications.
Darlington Transistor Drivers
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Transistor Configuration | Common Emitter |
| Number of Elements per Chip | 7 |
| Maximum Collector Emitter Saturation Voltage | 1.6 V |
| Length | 9.9mm |
| Maximum Operating Temperature | +85 °C |
| Height | 1.58mm |
| Dimensions | 9.9 x 3.91 x 1.58mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3.91mm |
