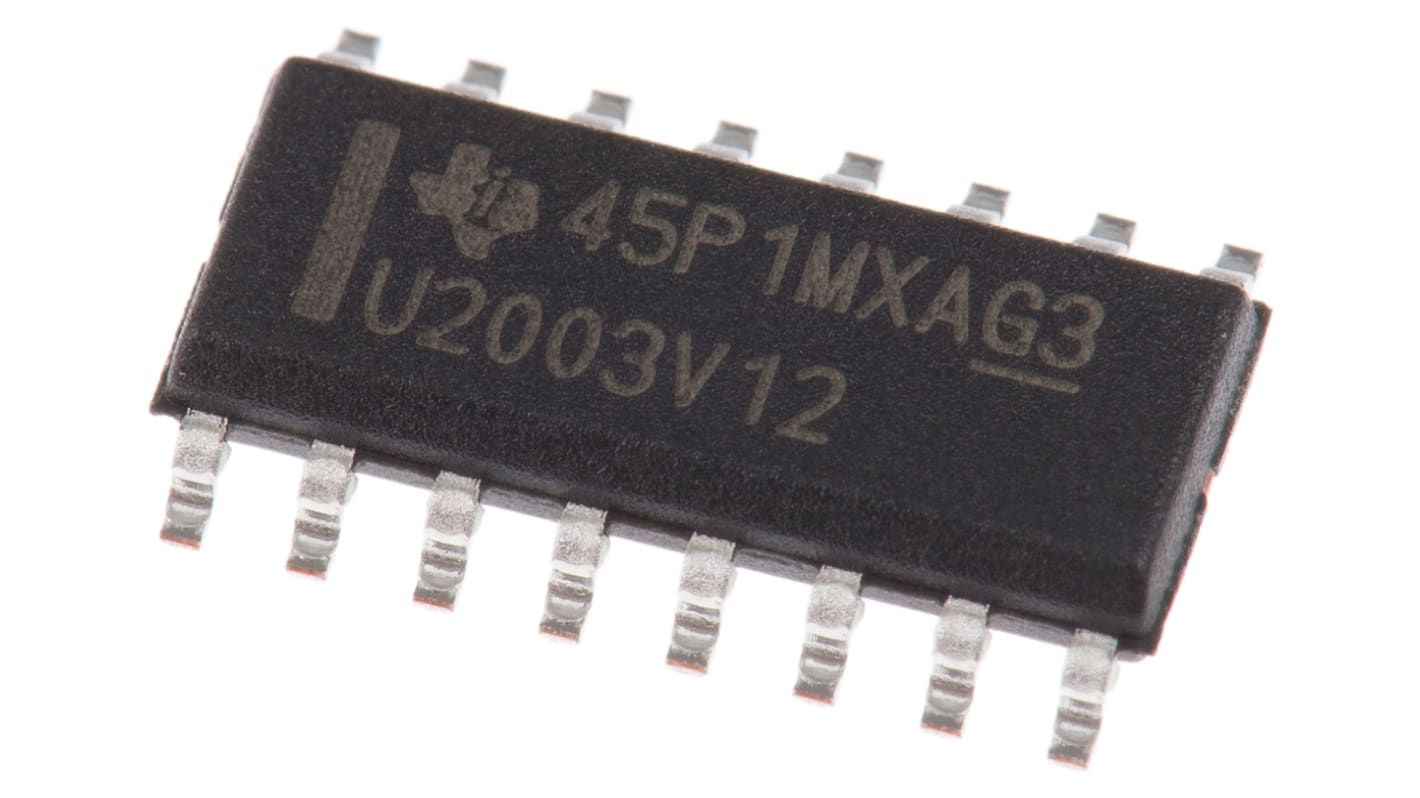

Texas Instruments ULN2003V12DR, 7-element NPN Darlington Pair, 140 mA 20 V, 16-Pin SOIC
- RS Stock No.:
- 162-6796
- Mfr. Part No.:
- ULN2003V12DR
- Brand:
- Texas Instruments
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 2500)
£0.173
(exc. VAT)
£0.208
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.173 | £432.50 |
| *price indicative | ||
- RS Stock No.:
- 162-6796
- Mfr. Part No.:
- ULN2003V12DR
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Darlington Transistor Arrays, Texas Instruments
A range of Darlington transistor arrays from Texas Instruments suitable for a wide range of medium to high current driver applications.
Darlington Transistor Drivers
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 140 mA |
| Maximum Collector Emitter Voltage | 20 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Transistor Configuration | Common Emitter |
| Number of Elements per Chip | 7 |
| Maximum Collector Emitter Saturation Voltage | 0.75 V |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 10 x 4 x 1.5mm |
| Maximum Power Dissipation | 860 mW |
| Width | 4mm |
| Height | 1.5mm |
| Length | 10mm |
| Maximum Operating Temperature | +125 °C |
- RS Stock No.:
- 162-6796
- Mfr. Part No.:
- ULN2003V12DR
- Brand:
- Texas Instruments
