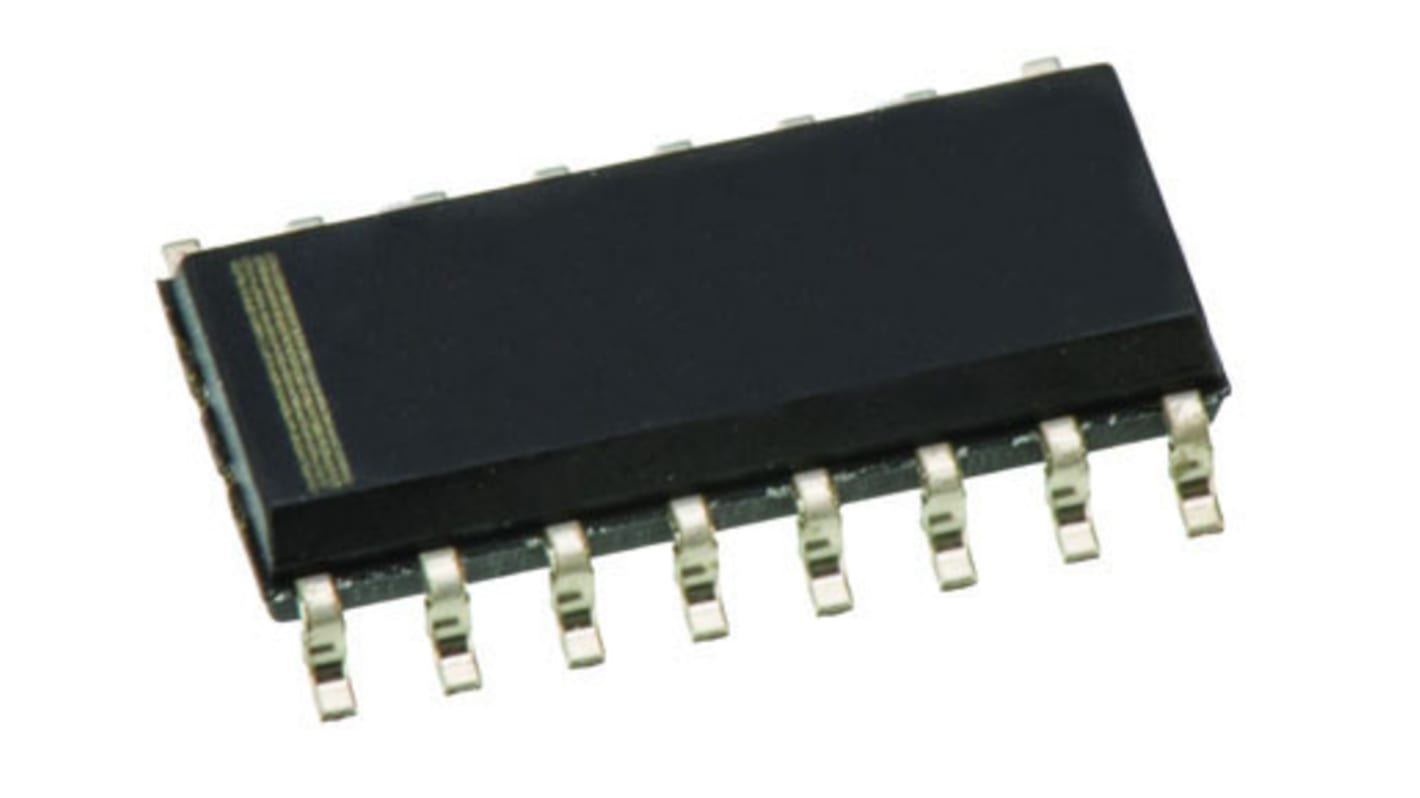

Texas Instruments ULQ2003AD, 7-element NPN Darlington Pair, 500 mA 50 V, 16-Pin SOIC

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Darlington Transistor Arrays, Texas Instruments

A range of Darlington transistor arrays from Texas Instruments suitable for a wide range of medium to high current driver applications.

Darlington Transistor Drivers

Specifications
Attribute Value
Transistor Type NPN
Maximum Continuous Collector Current 500 mA
Maximum Collector Emitter Voltage 50 V
Package Type SOIC
Mounting Type Surface Mount
Pin Count 16
Transistor Configuration Common Emitter
Number of Elements per Chip 7
Maximum Collector Emitter Saturation Voltage 1.6 V
Height 1.58mm
Width 3.91mm
Maximum Operating Temperature +85 °C
Length 9.9mm
Minimum Operating Temperature -40 °C
Dimensions 9.9 x 3.91 x 1.58mm
