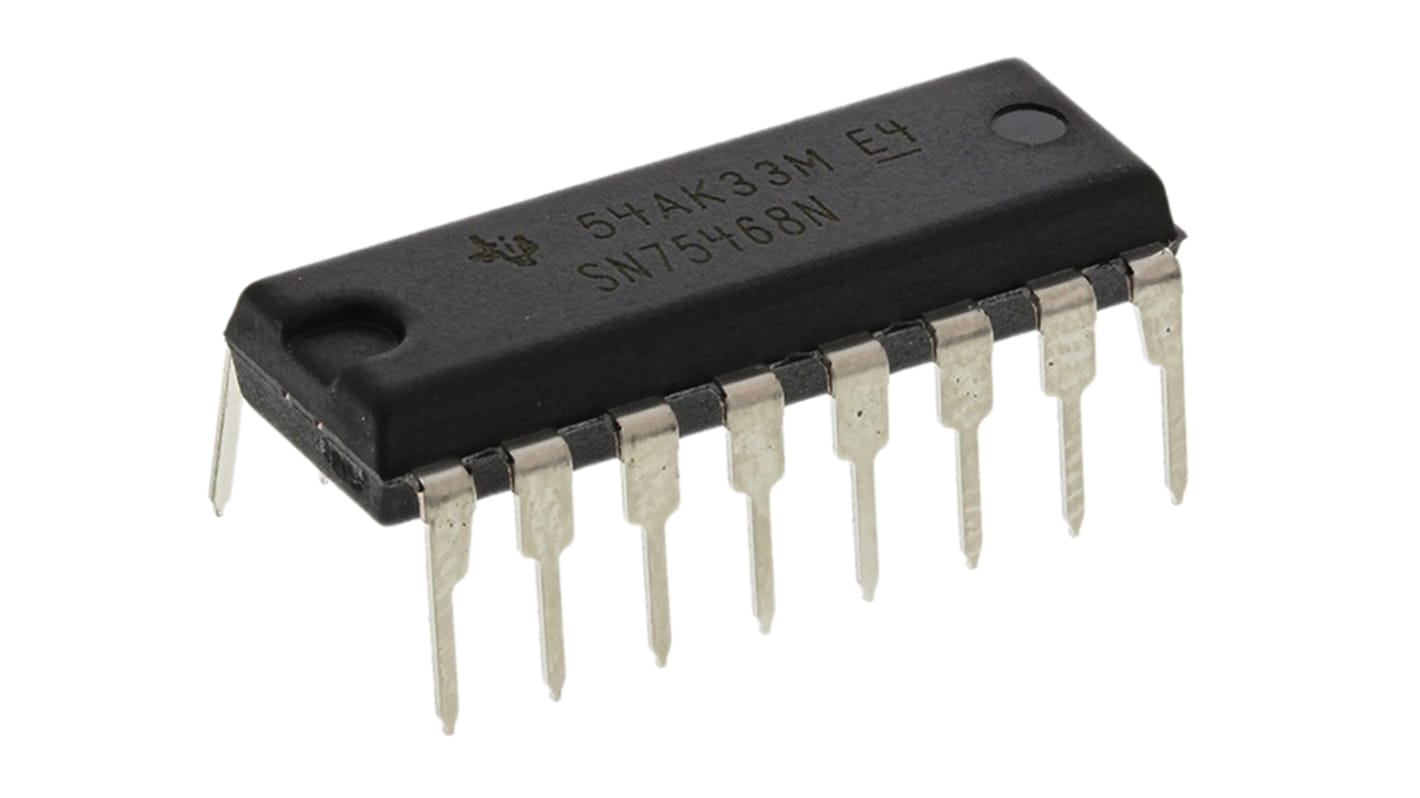

Texas Instruments SN75468N, 7-element NPN Darlington Transistor, 500 mA 100 V, 16-Pin PDIP
- RS Stock No.:
- 527-883
- Mfr. Part No.:
- SN75468N
- Brand:
- Texas Instruments
100 In stock - FREE next working day delivery available
75 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Tube of 25)
£0.897
(exc. VAT)
£1.076
(inc. VAT)
| Units | Per unit | Per Tube* |
| 25 - 100 | £0.897 | £22.425 |
| 125 - 225 | £0.852 | £21.30 |
| 250 - 600 | £0.767 | £19.175 |
| 625 + | £0.762 | £19.05 |
| *price indicative | ||
- RS Stock No.:
- 527-883
- Mfr. Part No.:
- SN75468N
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
Darlington Transistor Arrays, Texas Instruments
A range of Darlington transistor arrays from Texas Instruments suitable for a wide range of medium to high current driver applications.
Darlington Transistor Drivers
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 100 V |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 16 |
| Transistor Configuration | Common Emitter |
| Number of Elements per Chip | 7 |
| Height | 4.57mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Width | 6.35mm |
| Length | 19.3mm |
| Dimensions | 19.3 x 6.35 x 4.57mm |
