- RS Stock No.:
- 141-0350
- Mfr. Part No.:
- 09560008275
- Brand:
- HARTING
Available to back order for despatch 30/04/2024
Added
Price Each (In a Bag of 25)
£0.333
(exc. VAT)
£0.40
(inc. VAT)
Units | Per unit | Per Bag* |
25 - 75 | £0.333 | £8.325 |
100 - 225 | £0.304 | £7.60 |
250 - 475 | £0.276 | £6.90 |
500 + | £0.252 | £6.30 |
*price indicative |
- RS Stock No.:
- 141-0350
- Mfr. Part No.:
- 09560008275
- Brand:
- HARTING
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

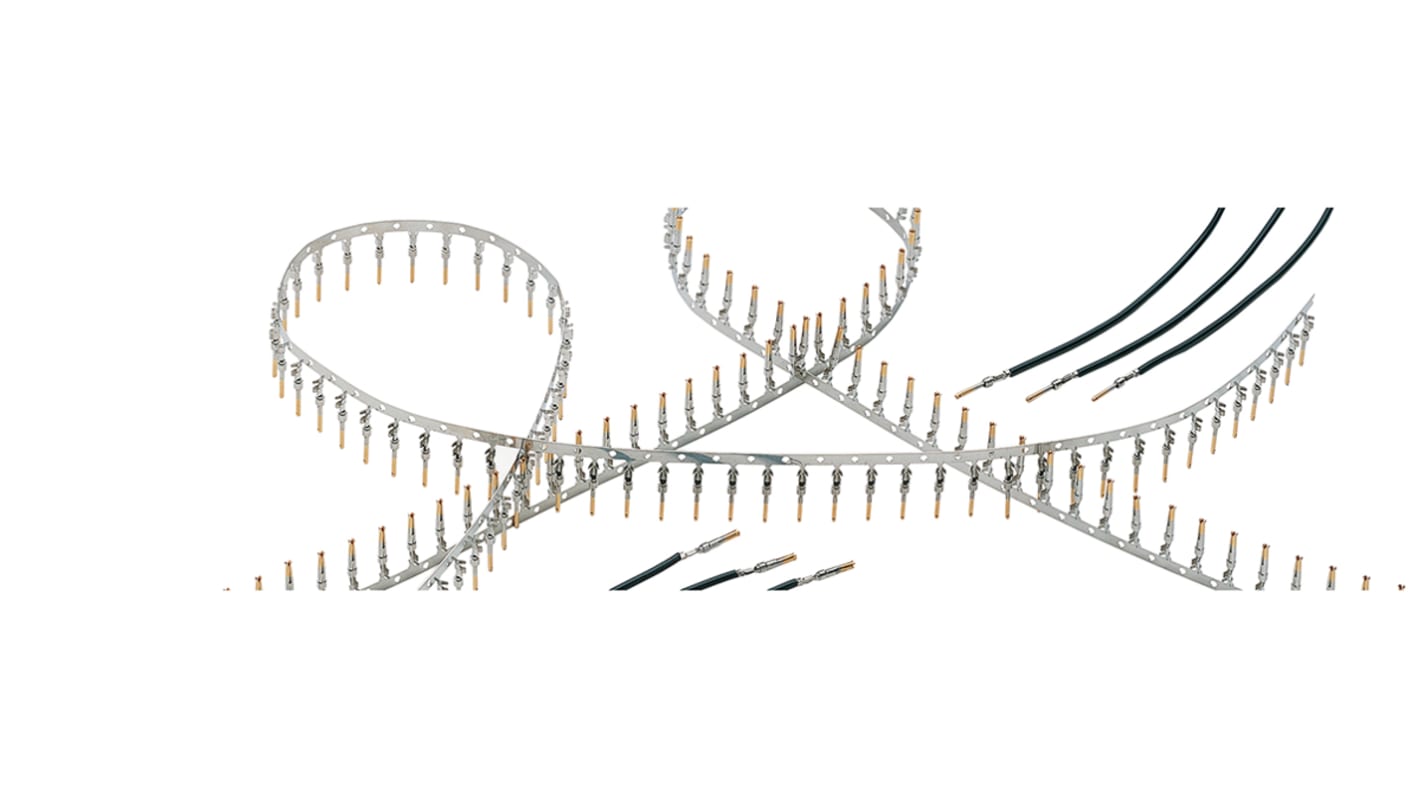

Crimp contacts for high density connectors
Stamped contacts
Performance level 3
AWG 26-24 (0.14-0.22 mm²)
Performance level 3
AWG 26-24 (0.14-0.22 mm²)
Harting D Sub High Density
The high density range exceeds the contact capacity of a standard subminiature D connector by 70%.
Stamped pins
Tinned metal shell (Male connector with dimples)
Tinned metal shell (Male connector with dimples)
Specifications
Attribute | Value |
---|---|
Gender | Female |
Wire Size | 26 → 24 AWG |
Contact Material | Copper Alloy |
Termination Method | Crimp |
Contact Plating | PdNi |
Contact Type | Pin |
Minimum Wire Size mm² | 0.14mm² |
Maximum Wire Size mm² | 0.22mm² |
Series | D-Sub High Density |
Current Rating | 6.5A |
Minimum Wire Size AWG | 26AWG |
Maximum Wire Size AWG | 24AWG |
