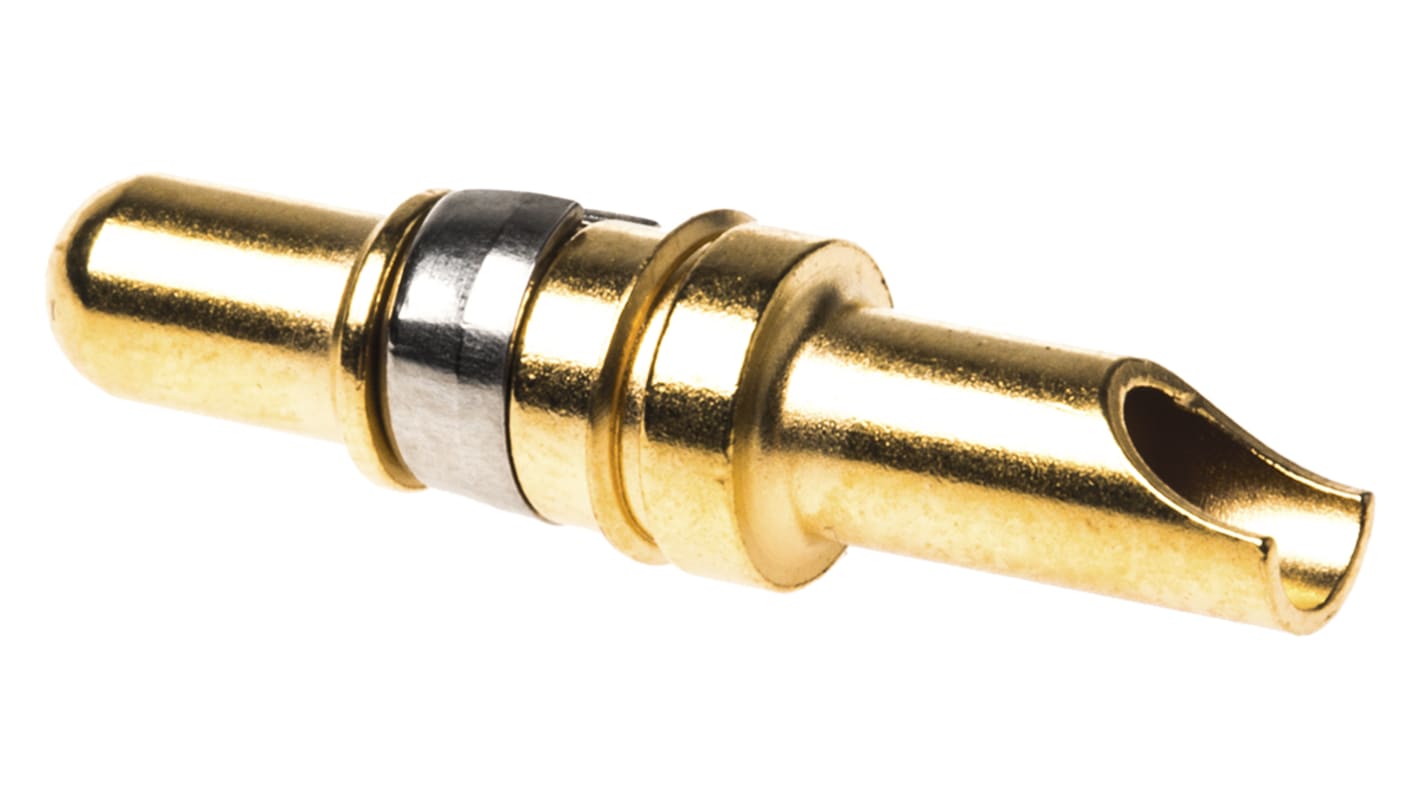

Amphenol ICC, DW Series, Male Solder D-Sub Connector Power Contact, Gold over Nickel Power, 12 AWG
- RS Stock No.:
- 233-332
- Mfr. Part No.:
- 86303056NLF
- Brand:
- Amphenol ICC
1256 In stock - FREE next working day delivery available
69 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.20
(exc. VAT)
£5.04
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £4.20 |
| 25 - 74 | £3.71 |
| 75 - 199 | £3.52 |
| 200 + | £2.90 |
- RS Stock No.:
- 233-332
- Mfr. Part No.:
- 86303056NLF
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Hybrid D-Sub Connector Power Contacts
A range of power contacts for use in hybrid mixed contact D-sub connectors (stock number 160-0415 typically). These male and female power contacts are gold plated and are available in AWG 12, AWG 14 and AWG 16 wire sizes.
Mixed Contact 'D'
Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Wire Size | 12 AWG |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Contact Type | Power |
| Series | DW |
| Current Rating | 20A |
| Length | 21.85mm |
| Series Number | 8630 |
