Molex, CMD 25 Way D-sub Connector Socket

  • RS Stock No. 904-8266
  • Mfr. Part No. 83424-9021
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Molex 83424 Series Commercial Micro-D Connector Cable Assemblies

83424 Series Commercial Micro-D (CMD) moulded cable connector assemblies available in single and double ended configurations.

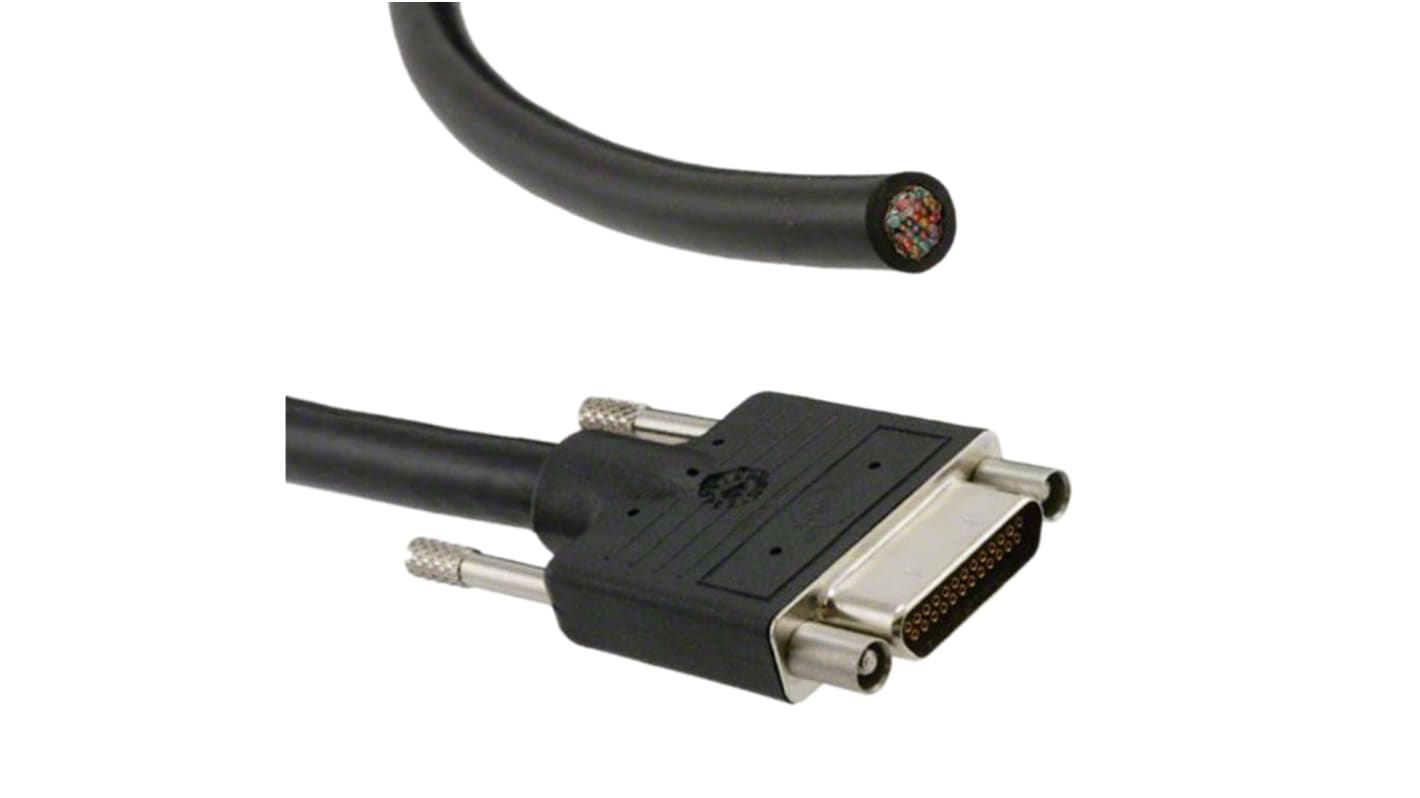

Stock number 822-3273 is single ended Commercial Micro-D cable assembly with a female Commercial Micro-D socket one end and a pigtail cable termination the other.
Stock number 904-8266 is a dual ended Commercial Micro-D cable assembly with a female Commercial Micro-D socket one end and a D-Sub plug connector on the other.
These Commercial Micro-D (CMD) connectors have a space saving high density 1.27mm centre-line, a rugged housing design with a metal interface and grounding tabs for mechanical strength and shielding and meet SSA industry standards allowing for hot-pluggable applications.

Double ended connectors
Commercial Micro-D to D-Sub
Current - Maximum per contact: 1A

Specifications
Attribute Value
Number of Contacts 25
Gender Female
Body Orientation Straight
Termination Method Pre-Wired
Length 30.1mm
Width 8.38mm
Depth 43.47mm
Dimensions 30.1 x 8.38 x 43.47mm
Contact Plating Tin
Series CMD
Available to back order for despatch 23/09/2020
Price Each
£ 47.73
(exc. VAT)
£ 57.28
(inc. VAT)
Units
Per unit
1 - 9
£47.73
10 - 24
£44.91
25 - 49
£43.53
50 +
£40.71
