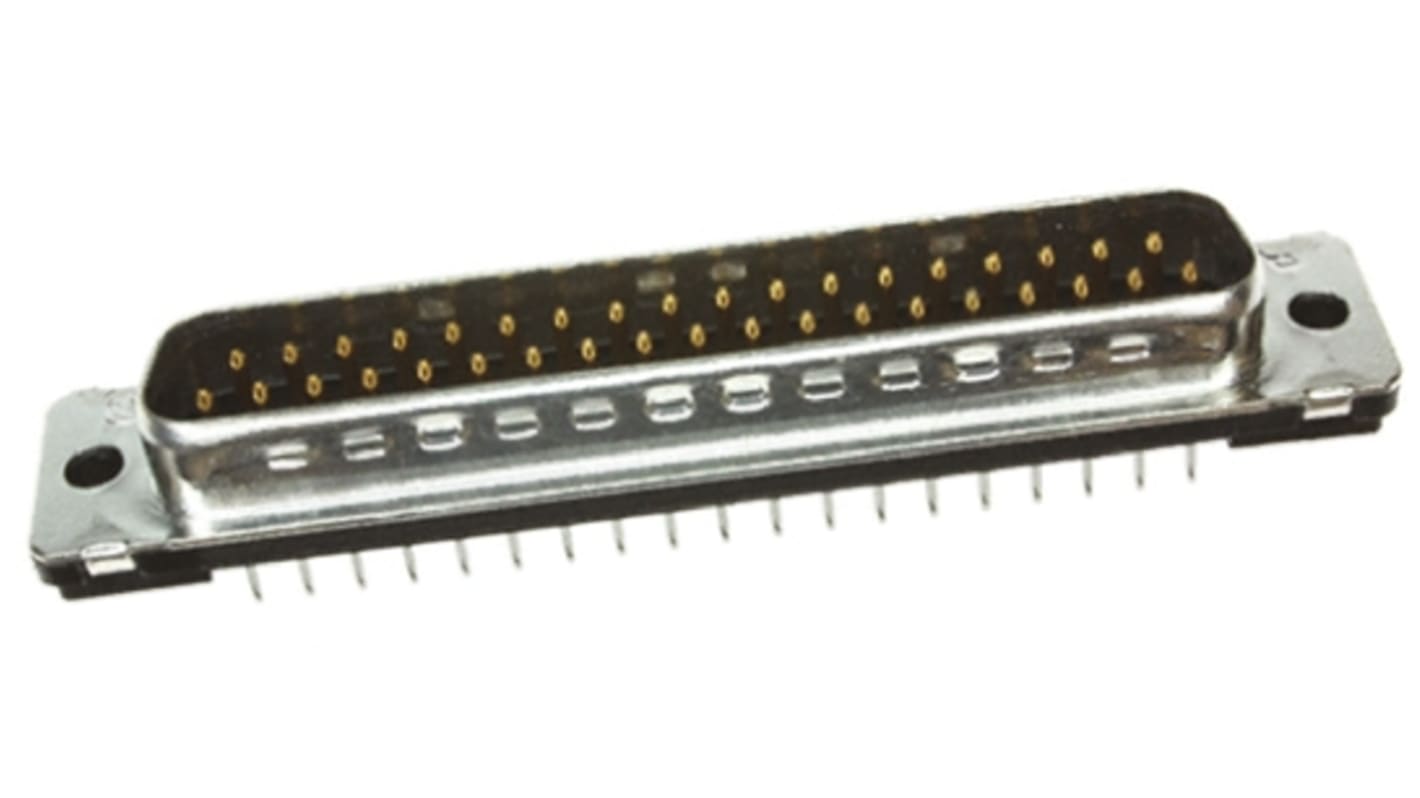

TE Connectivity, Amplimite HD-20 37 Way Through Hole D-sub Connector Plug, with 3.05 mm mounting holes

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

AMPLIMITE D-sub Connector, HD-20 Series, Front Metal Shell, PCB Mount, Straight Post

AMPLIMITE HD-20 series straight posted PCB mount d-sub connectors with tin plated steel front shells, 94V-0 black thermoplastic housings and preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with 0.00076 gold plating or gold flash and 3.18mm or 4.32mm post lengths. These AMPLIMITE HD-20 PCB mount straight post d-sub connectors are available with a variety of PCB retention types including brass threaded inserts and zinc screwlocks.

TE Connectivity AMPLIMITE D-Subminiature Connectors

Specifications
Attribute Value
Number of Contacts 37
Gender Male
Body Orientation Straight
Mounting Type Through Hole
Termination Method Solder
Mounting Hardware 3.05 mm mounting holes
Housing Material Thermoplastic
Voltage Rating 250.0 V
Series Amplimite HD-20
Contact Plating Gold
Contact Material Brass
Available to back order for despatch 09/10/2020
Price Each
£ 13.54
(exc. VAT)
£ 16.25
(inc. VAT)
Units
Per unit
1 - 24
£13.54
25 - 74
£12.01
75 - 199
£11.08
200 - 399
£10.47
400 +
£9.55
