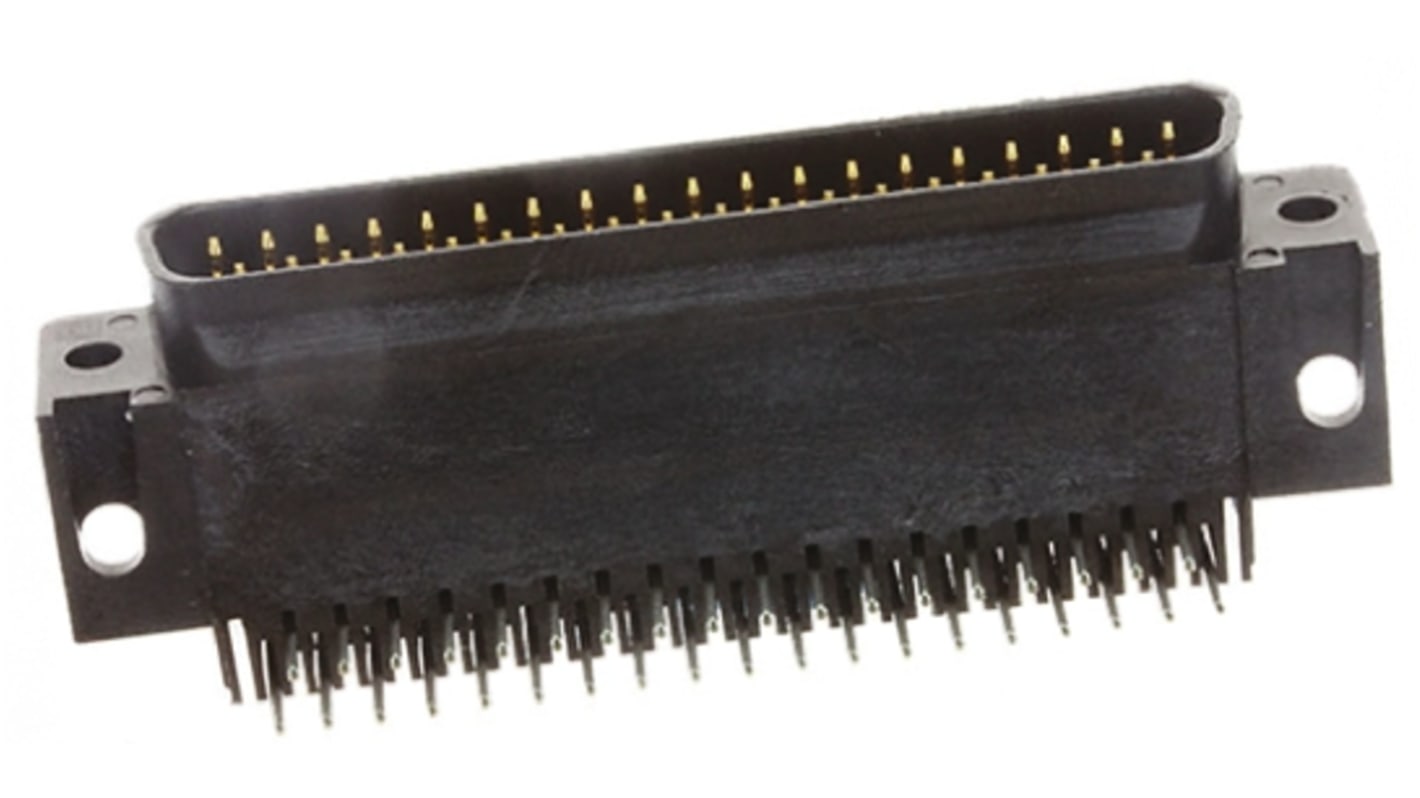

TE Connectivity, Amplimite HD-20 37 Way Right Angle Through Hole D-sub Connector Plug, with 3.05 mm mounting holes

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

AMPLIMITE HD-20 All-Plastic, 590 Mount Series, Board Mount D-Sub Connectors

AMPLIMITE HD-20 590 series right angle posted PCB mount d-sub plug and socket connectors with black all-plastic 94V-0 rated thermoplastic housings and pre-loaded with size 20 DF posted contacts.
These AMPLIMITE HD-20 590 series plastic d-sub plug and receptacle connectors are available various mounting hardware options and contact platings. Please see table for details.

Note

Recommended PCB thickness is 2.36mm max.

TE Connectivity AMPLIMITE D-Subminiature Connectors

Specifications
Attribute Value
Number of Contacts 37
Gender Male
Body Orientation Right Angle
Mounting Type Through Hole
Mounting Hardware 3.05 mm mounting holes
Termination Method Solder
Housing Material Thermoplastic
Voltage Rating 250.0 V
Contact Plating Gold
Series Amplimite HD-20
Contact Material Brass
Available to back order for despatch 15/10/2020
Price Each
£ 13.02
(exc. VAT)
£ 15.62
(inc. VAT)
Units
Per unit
1 - 24
£13.02
25 - 74
£10.86
75 - 199
£10.53
200 - 399
£9.30
400 +
£8.83
