TE Connectivity, Amplimite HDP-20 9 Way D-sub Connector

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

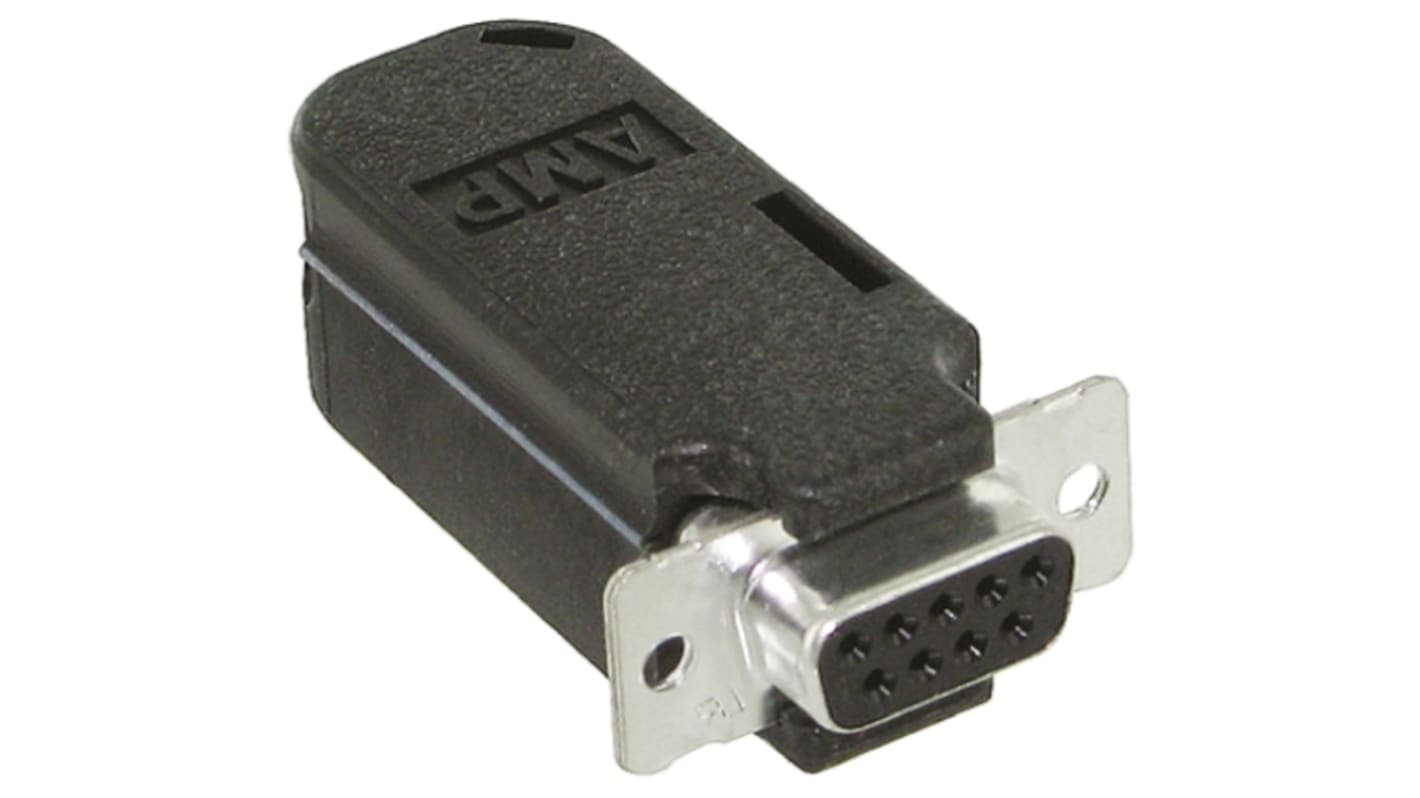

AMPLIMITE All-Plastic Quik-Snap Backshell and Unshielded HDP-20 D-Sub Connector Kit

AMPLIMITE All-Plastic Quik-Snap backshell and unshielded HDP-20 D-Sub connector kit comprising of the following components:
1 - Hinged polypropylene black cable clamp
2 - Stainless steel retention clips
2 - Steel zinc plated retention screws
1 - Black Polypropylene cable gate plug
2 - Self-tapping screws
1 - AMPLIMITE HDP-20 plug or socket connector and and contacts
The Quick-Snap plastic backshell is for use with jacketed cable and has a 180°/120° exit.

TE Connectivity AMPLIMITE D-Subminiature Connectors

Specifications
Attribute Value
Number of Contacts 9
Body Orientation Straight
Termination Method Crimp
Housing Material Nylon
Series Amplimite HDP-20
Contact Plating Gold
Contact Material Brass, Phosphor Bronze
7 In stock - FREE next working day delivery available
Price Each
£ 11.09
(exc. VAT)
£ 13.31
(inc. VAT)
Units
Per unit
1 - 24
£11.09
25 - 74
£9.83
75 - 199
£9.07
200 - 399
£8.62
400 +
£8.20
