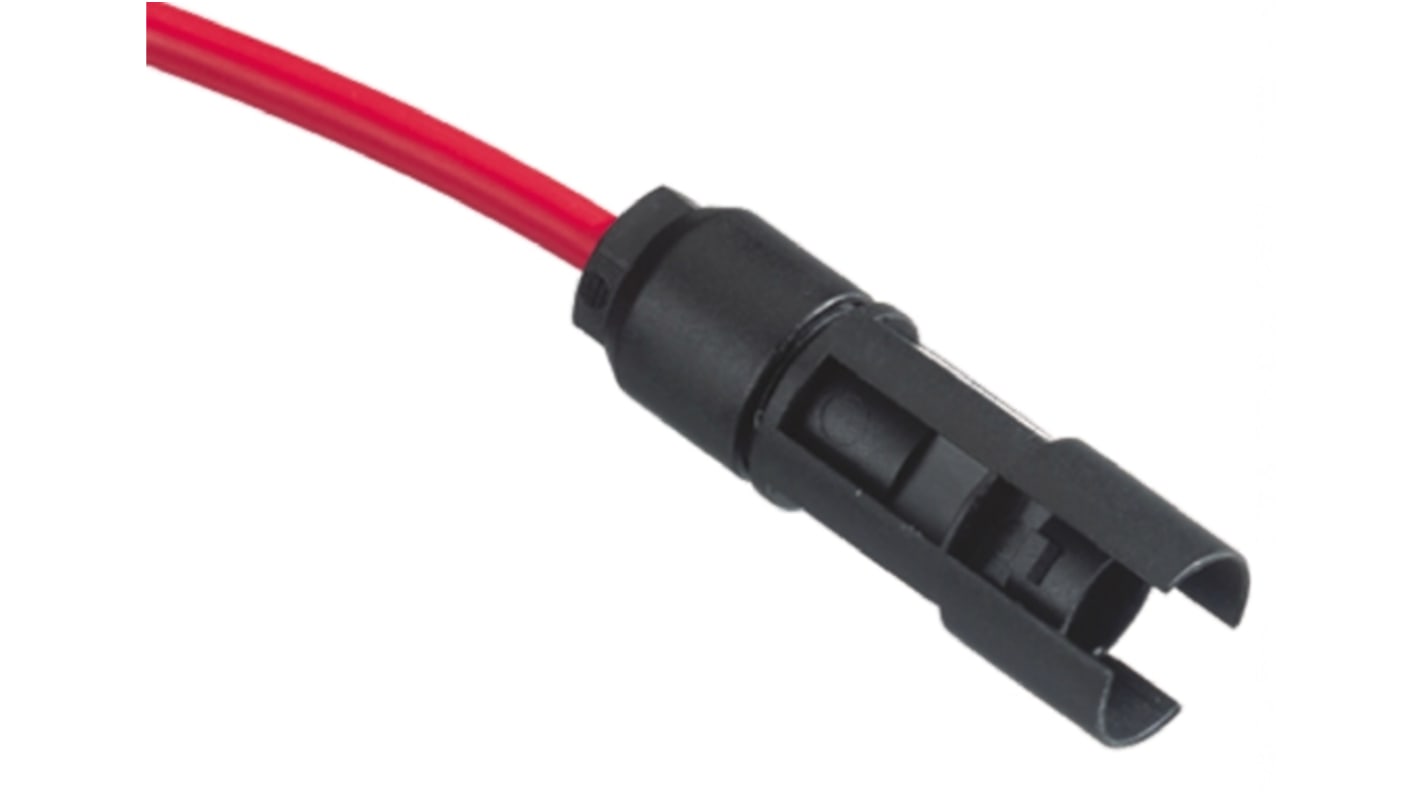

TE Connectivity, SOLARLOK 1 Way Heavy Duty Power Connector Plug

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

SOLARLOK Cable Couplers

SOLARLOK delivers a flexible system solution for easy and reliable interconnections from photovoltaic modules to the DC/AC converter.Cable couplers designed for high voltage high current-carrying capacity in addition to the well-established IP67 sealing requirement in the photovoltaic industry. Mating safety is provided by polarity keyed housings, fully shrouded contacts, reliable high cycle life and squeeze to release connection system.,Connectors labelled with a plus or minus are keyed and can only be mated to similarly marked and keyed connectors.

Specifications
Attribute Value
Number of Contacts 1
Gender Male
Series SOLARLOK
Available to back order for despatch 18/12/2020
Price Each
£ 4.22
(exc. VAT)
£ 5.06
(inc. VAT)
Units
Per unit
1 - 9
£4.22
10 - 24
£3.80
25 - 49
£3.59
50 +
£3.37
