MH Connectors 9 Way D-sub Connector


3629 In stock - FREE next working day delivery available
Add to Basket

Price Each

£1.71

(exc. VAT)

£2.05

(inc. VAT)

Units

Added

RS Stock No.:
765-9555
Mfr. Part No.:
MHDPPK9-DB9S-K
Brand:
MH Connectors
COO (Country of Origin):
CN
UnitsPer unit
1 - 24£1.71
25 - 74£1.50
75 - 199£1.28
200 - 399£1.15
400 +£1.03

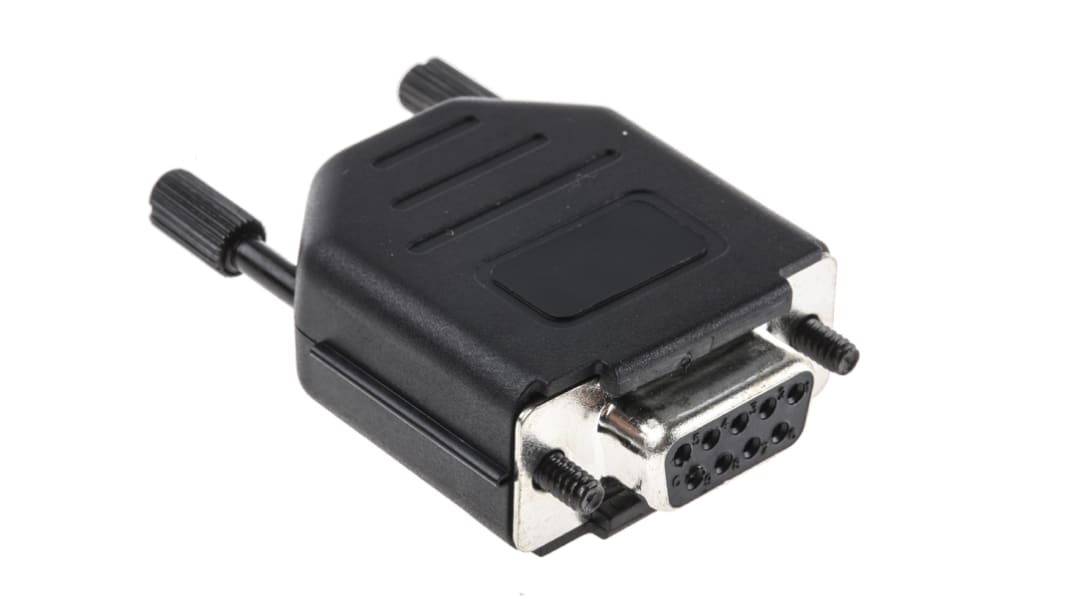

MH Connectors MHDPPK D-Sub Connector Kits


The MHDPPK series of D-Sub connector kits come with 9, 15 or 25 pin connectors, in either male plug or female socket options. Please refer to the list below for more information.
These D-Sub connector kits feature a black plastic clamshell casing. The plastic case quickly snaps together to lock, for quick and easy assembly. The D-Sub connector contacts are gold plated which also ensures a high quality connection.
MHDPPK kits work with cables with a diameter of up to 9 mm. The cable clamp that comes with the kit is secured with two screws. This provides strain relief to the cable to ensure reliability and a longer lifetime.
• Top cable entry (90°)
• Compatible cable diameter up to 9mm
• Black plastic housing
• Effortless QuickLock system
• Gold-plated contacts


D-Sub Connector Info:
• Voltage rating: 250V
• Current rating: 3A
• Contact resistance: 25mA (max)
• Insulation resistance: 1000 MΩ
• Operating temperature: -55 to +105 °C

Each Kit Contains:
2 x backshell halves
2 x 4-40 jack screws
1 x plastic strain relief
1 x metal strain relief clamp (with screws)
1 x D-Sub connector with solder buckets


Versions Available:
765-9551 - 9-pin Plug
765-9555 - 9-pin Socket
765-9564 - 15-pin Plug
765-9567 - 15-pin Socket
765-9561 - 25-pin Plug
765-9570 - 25-pin Socket


Note:
Maximum cable diameter for the 9 way is 8 mm.
Maximum cable diameter for the 15 and 25 way is 11.5 mm.


Note

Maximum cable diameter for the 9 way is 8 mm.
Maximum cable diameter for the 15 and 25 way is 11.5 mm.

Approvals

Polyamide PA66-UL recognised material

D-Sub Connector Kits - MH

A range of D-sub Kits which contain a connector, hood and associated screws and cable glands or clamps as specified.

AttributeValue
Number of Contacts9
Body OrientationStraight
Termination MethodSolder
Housing MaterialPlastic
Contact MaterialCopper Alloy
Contact PlatingGold over Nickel
