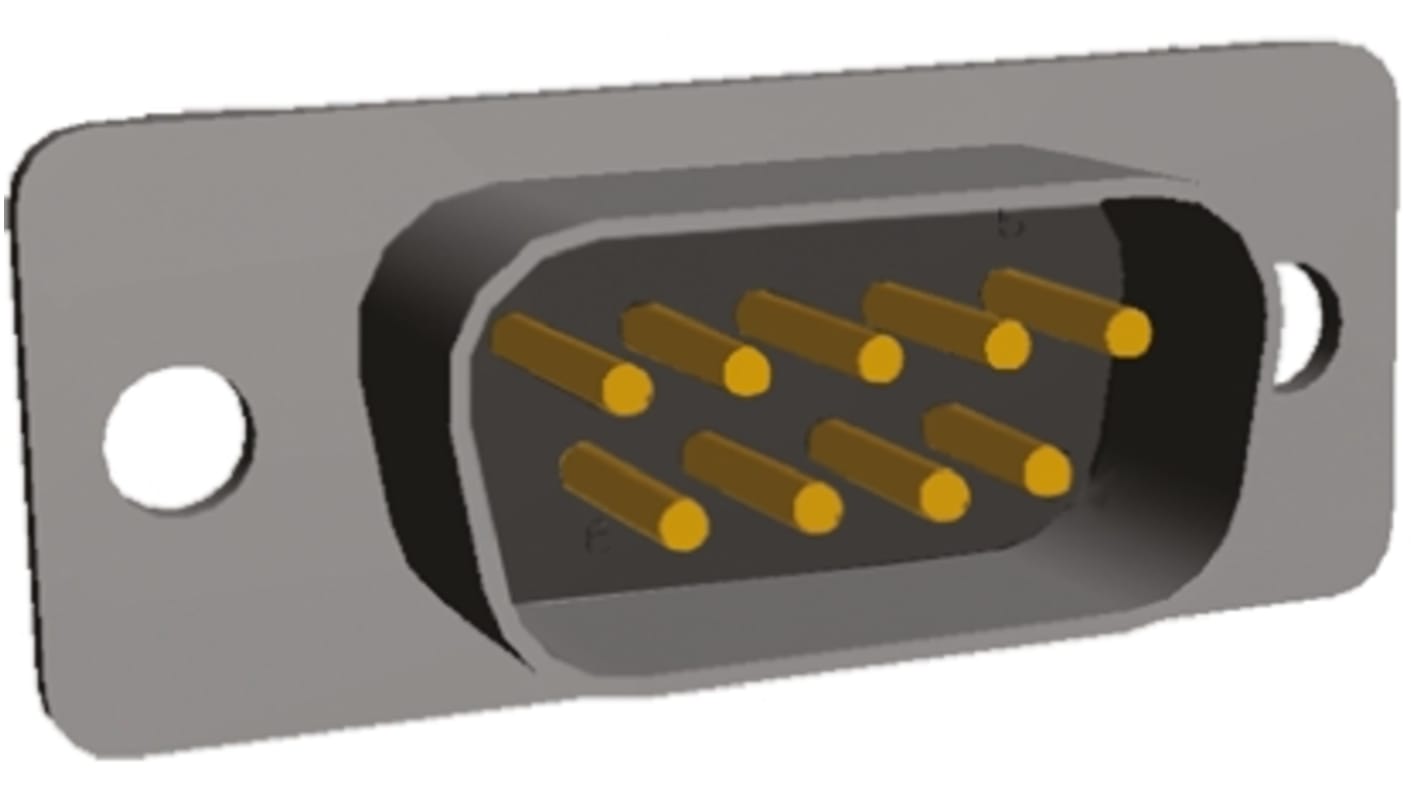

TE Connectivity, Amplimite HD-20 9 Way Through Hole D-sub Connector Plug, with 3.05 mm mounting holes

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

AMPLIMITE D-Sub Connector, HD-20 Series, Full Metal Shell, PCB Mount, Straight Posted

AMPLIMITE HD-20 series straight posted PCB mount D-Sub connectors with tin plated steel full metal shells and 94V-0 black thermoplastic inserts preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with gold plating. For additional data please refer to table.

TE Connectivity AMPLIMITE D-Subminiature Connectors

Specifications
Attribute Value
Number of Contacts 9
Gender Male
Body Orientation Straight
Mounting Type Through Hole
Mounting Hardware 3.05 mm mounting holes
Termination Method Solder
Housing Material Nylon
Length 1.213in
Width 0.689in
Depth 0.494in
Dimensions 1.213 x 0.689 x 0.494in
Contact Plating Gold
Series Amplimite HD-20
Contact Material Brass
62 In stock - FREE next working day delivery available
Price Each
£ 1.12
(exc. VAT)
£ 1.34
(inc. VAT)
Units
Per unit
1 +
£1.12
