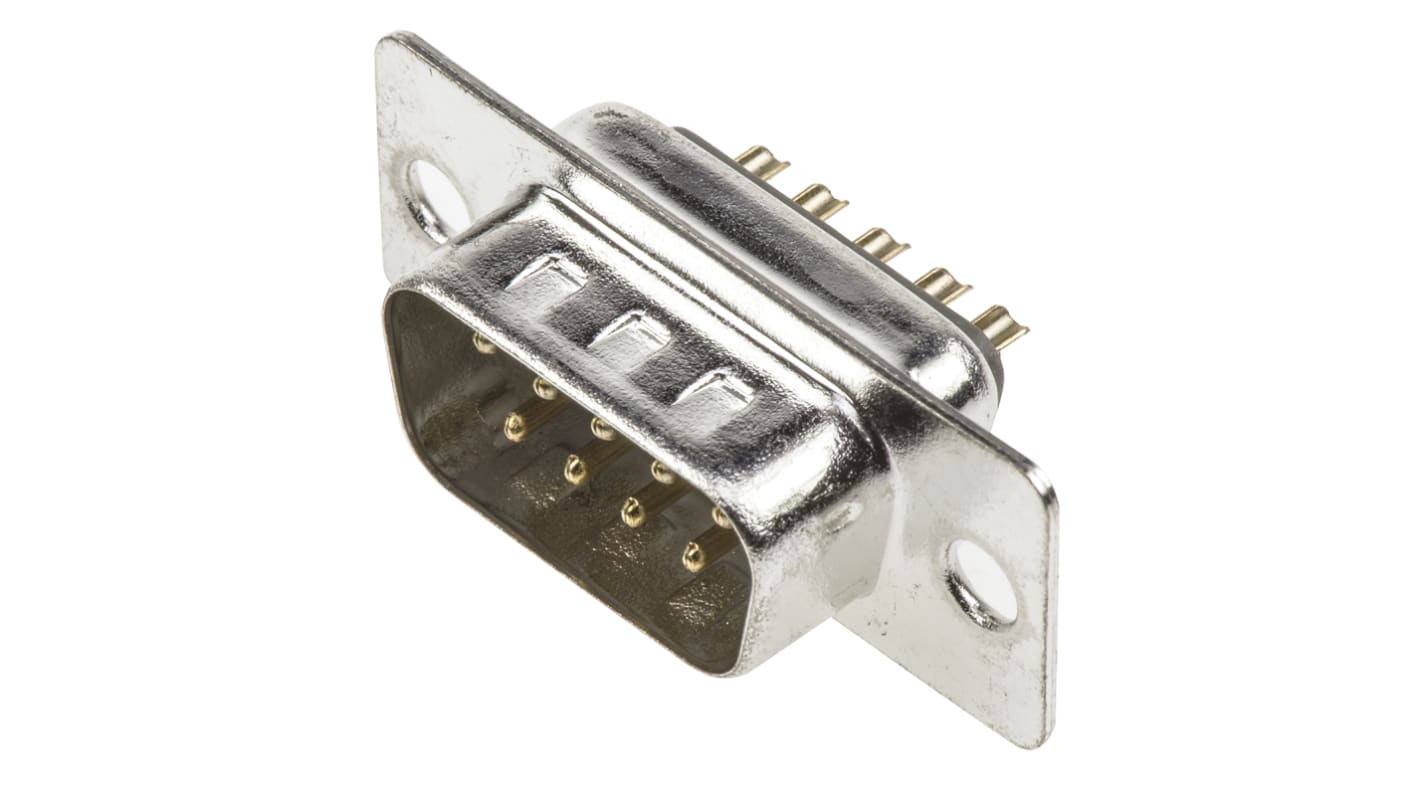

ASSMANN WSW 9 Way Panel Mount D-sub Connector Plug

  • RS Stock No. 674-0751
  • Mfr. Part No. A-DS 09 LL/G
  • Brand ASSMANN WSW
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Assmann D-Sub Plug and Receptacle Connectors with Solder Cup Terminals

D-Sub plug and receptacle connectors with solder cup terminals and mounting flanges. These d-sub receptacle connectors have a steel shell, a glass-filled thermoplastic PBT UL94V-0 insulator, gold flash plated contacts and a 3.05mm hole on each side of flange for mounting.

Assmann

Specifications
Attribute Value
Number of Contacts 9
Gender Male
Body Orientation Straight
Mounting Type Panel Mount
D Connector Type Standard D-Sub
D-Sub Shell Size E
Termination Method Solder
Current Rating 3.0A
Housing Material Metal
Contact Plating Gold
Maximum Operating Temperature +105°C
Minimum Operating Temperature -55.0°C
Contact Material Brass
1445 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 0.696
(exc. VAT)
£ 0.835
(inc. VAT)
Units
Per unit
Per Pack*
5 - 120
£0.696
£3.48
125 - 370
£0.592
£2.96
375 - 995
£0.558
£2.79
1000 - 1995
£0.522
£2.61
2000 +
£0.486
£2.43
*price indicative
