- RS Stock No.:
- 674-0739
- Mfr. Part No.:
- A-DF 15 LL/G
- Brand:
- ASSMANN WSW
- RS Stock No.:
- 674-0739
- Mfr. Part No.:
- A-DF 15 LL/G
- Brand:
- ASSMANN WSW
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

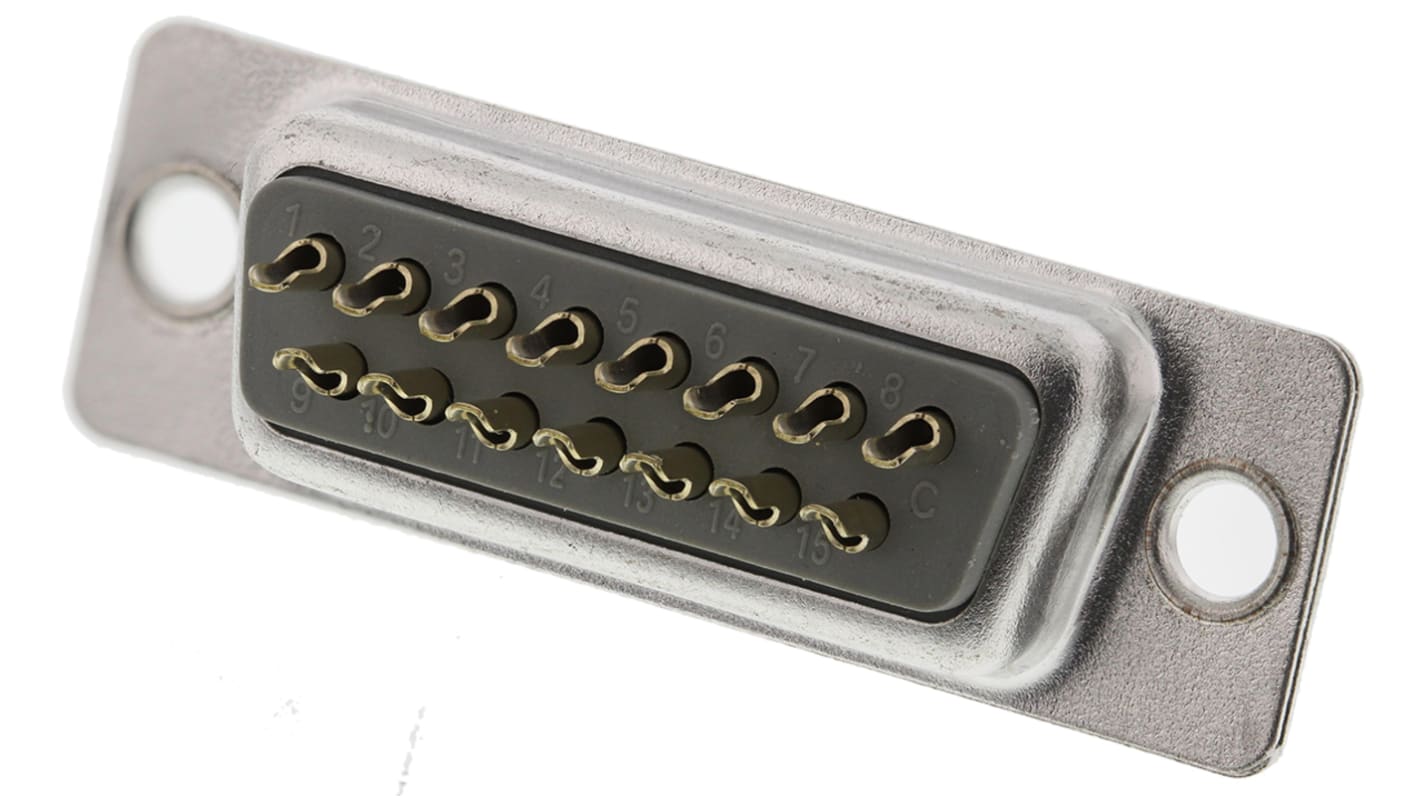

Assmann D-Sub Plug and Receptacle Connectors with Solder Cup Terminals
D-Sub plug and receptacle connectors with solder cup terminals and mounting flanges. These d-sub receptacle connectors have a steel shell, a glass-filled thermoplastic PBT UL94V-0 insulator, gold flash plated contacts and a 3.05mm hole on each side of flange for mounting.
Assmann
Specifications
Attribute | Value |
---|---|
Number of Contacts | 15 |
Gender | Female |
Body Orientation | Straight |
Mounting Type | Panel Mount |
D Connector Type | Standard D-Sub |
D-Sub Shell Size | A |
Termination Method | Solder |
Current Rating | 3A |
Housing Material | Metal |
Contact Plating | Gold |
Series | A-DF |
Contact Material | Phosphor Bronze |
Minimum Operating Temperature | -55.0°C |
Maximum Operating Temperature | +105°C |
