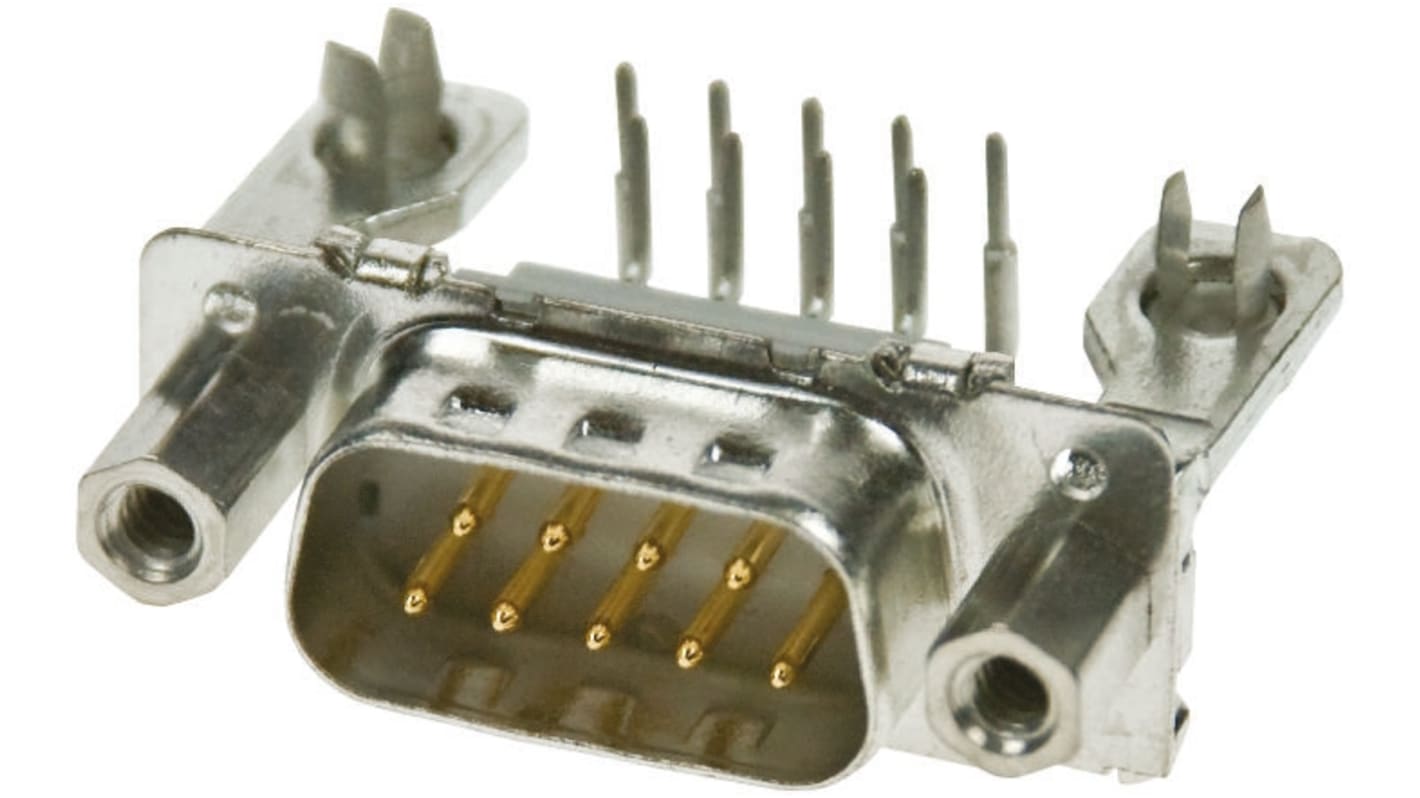

TE Connectivity Amplimite HD-20 Series, 9 Way Right Angle Through Hole Eurostyle PCB D-Sub Connector Plug, 2.74mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

D-SUB Eurostyle Footprint HD-20 90° screw lock

Constructed to DIN 41494, 3TE module, 15.24 mm width
Soldered connection with 0.7 mm bore Ø
With integrated PCB mounting and earthing
Screw lock UNC 4-40 internal thread
Metal cover
Plug-compatible with connector systems to MIL-C-24308 and DIN 41652

Standards

DIN 41652

Approvals

UL, CSA

TE Connectivity AMPLIMITE D-Subminiature Connectors

Specifications
Attribute Value
Number of Contacts 9
Gender Male
Body Orientation Right Angle
Mounting Type Through Hole
Pitch 2.74mm
Mounting Hardware Boardlocks, 4-40 UNC Female Screwlocks
Termination Method Solder
Current Rating 2.2A
Housing Material PBT
Length 31.19mm
Width 12.93mm
Depth 21.12mm
Dimensions 31.19 x 12.93 x 21.12mm
Series Amplimite HD-20
Minimum Operating Temperature -55.0°C
Contact Material Copper Alloy
Contact Plating Gold
Maximum Operating Temperature +125°C
4503 In stock - FREE next working day delivery available
Price Each
£ 5.80
(exc. VAT)
£ 6.96
(inc. VAT)
Units
Per unit
1 +
£5.80
