TE Connectivity 9 Way Through Hole D-sub Connector Plug, 2.74mm Pitch
- RS Stock No.:
- 192-0048
- Mfr. Part No.:
- 5745071-1
- Brand:
- TE Connectivity
Discontinued product
- RS Stock No.:
- 192-0048
- Mfr. Part No.:
- 5745071-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details

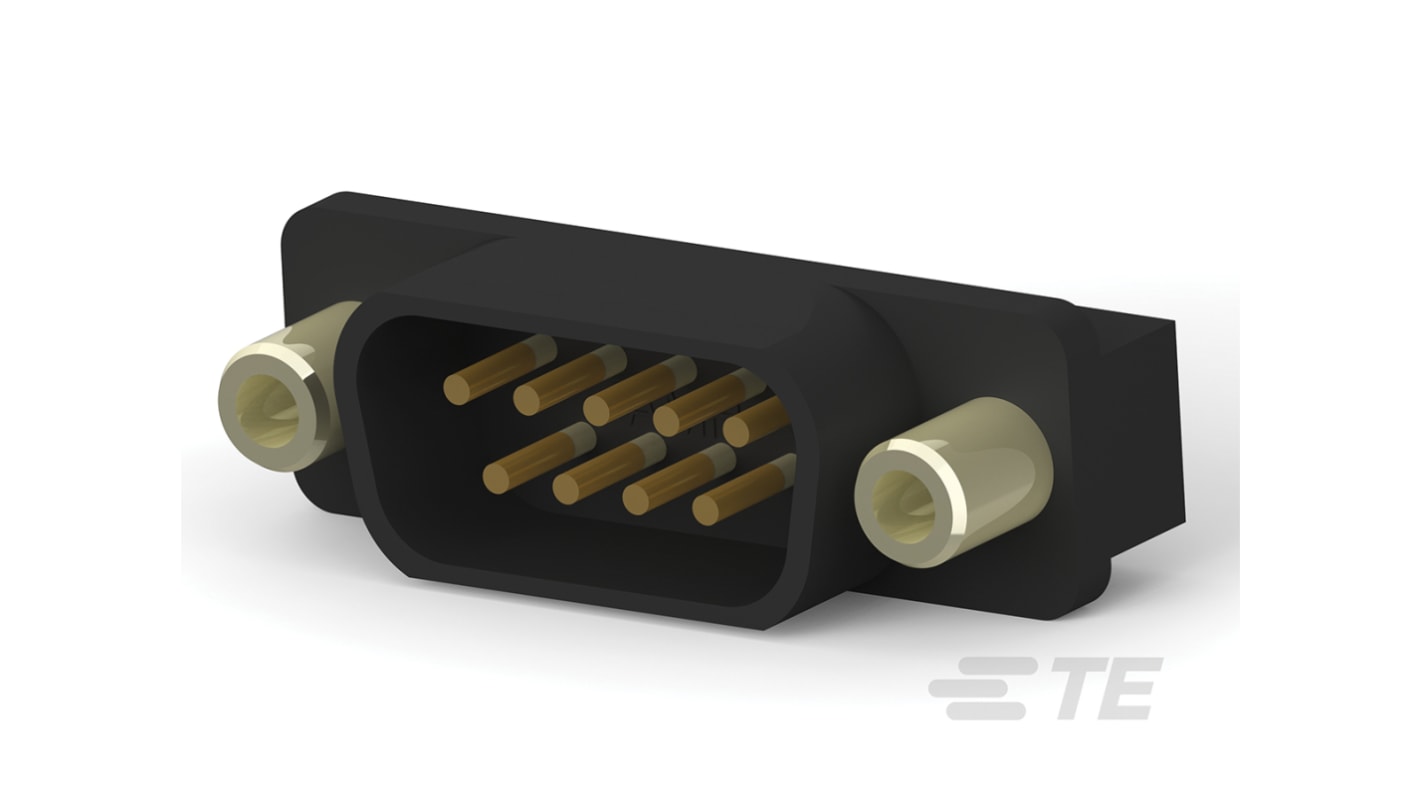

The TE Connectivity D-sub Connector Plug is a male connector with solder termination method and 2.74mm of pitch.
Number of Contacts: 9
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 2.74mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| Current Rating | 6.0A |
| Housing Material | Polyester |
| Length | 30.89mm |
| Width | 12.09mm |
| Depth | 10.41mm |
| Contact Material | Brass |
| Dimensions | 30.89 x 12.09 x 10.41mm |
| Contact Plating | Nickel |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55.0°C |
