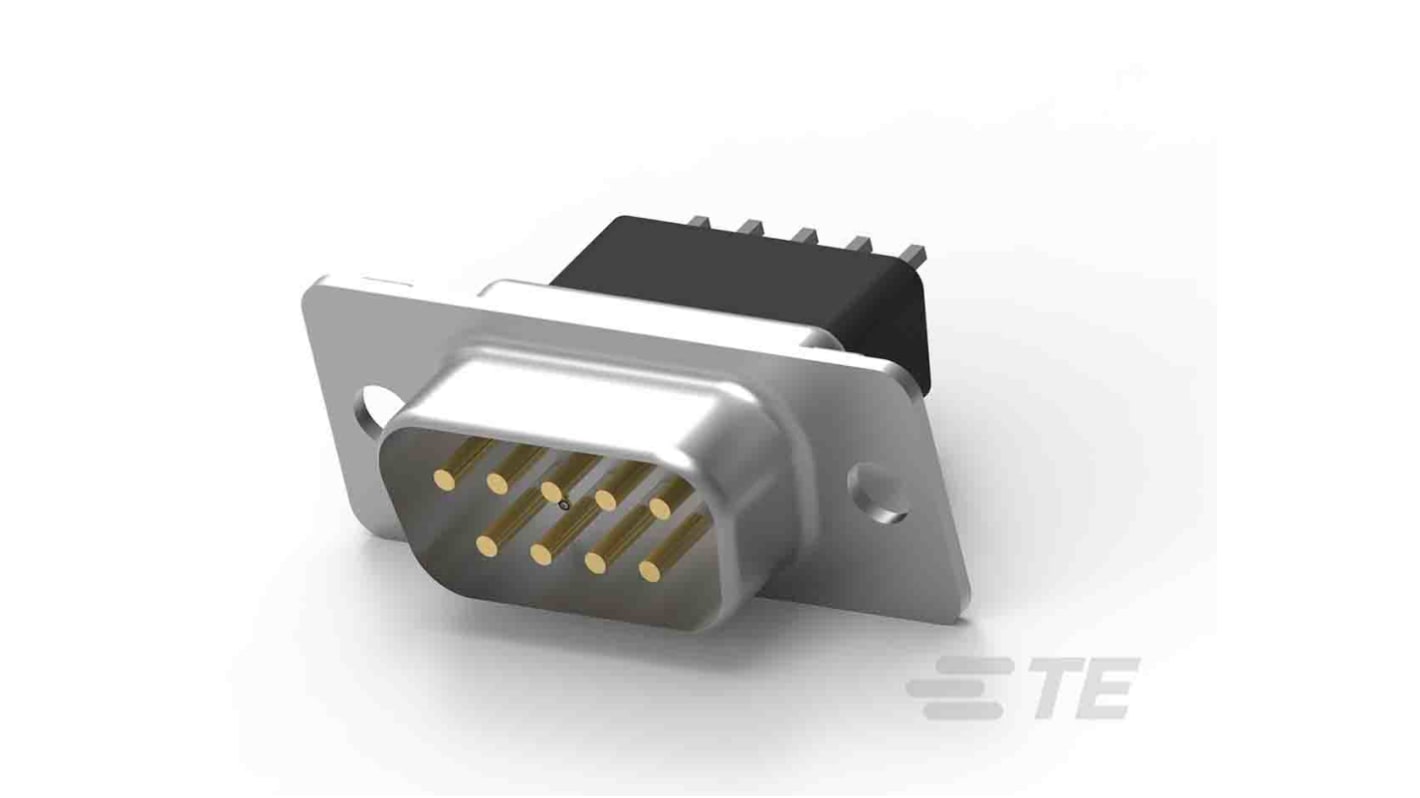

TE Connectivity Amplimite HD-20 9 Way Through Hole D-sub Connector Plug, 2.77mm Pitch
- RS Stock No.:
- 191-8383
- Mfr. Part No.:
- 5745410-1
- Brand:
- TE Connectivity
Discontinued product
- RS Stock No.:
- 191-8383
- Mfr. Part No.:
- 5745410-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
AMPLIMITE D-Sub Connector, HD-20 Series, Full Metal Shell, PCB Mount, Straight Posted
AMPLIMITE HD-20 series straight posted PCB mount D-Sub connectors with tin plated steel full metal shells and 94V-0 black thermoplastic inserts preloaded with size 20 DF posted brass pin contacts or phosphor bronze socket contacts with gold plating. For additional data please refer to table.
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 2.77mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| Current Rating | 6.0A |
| Housing Material | Glass Filled PBT |
| Length | 1.21in |
| Width | 0.68in |
| Depth | 0.49in |
| Series | Amplimite HD-20 |
| Contact Material | Brass |
| Contact Plating | Gold, Tin over Nickel |
| Dimensions | 1.21 x 0.68 x 0.49in |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +105°C |
