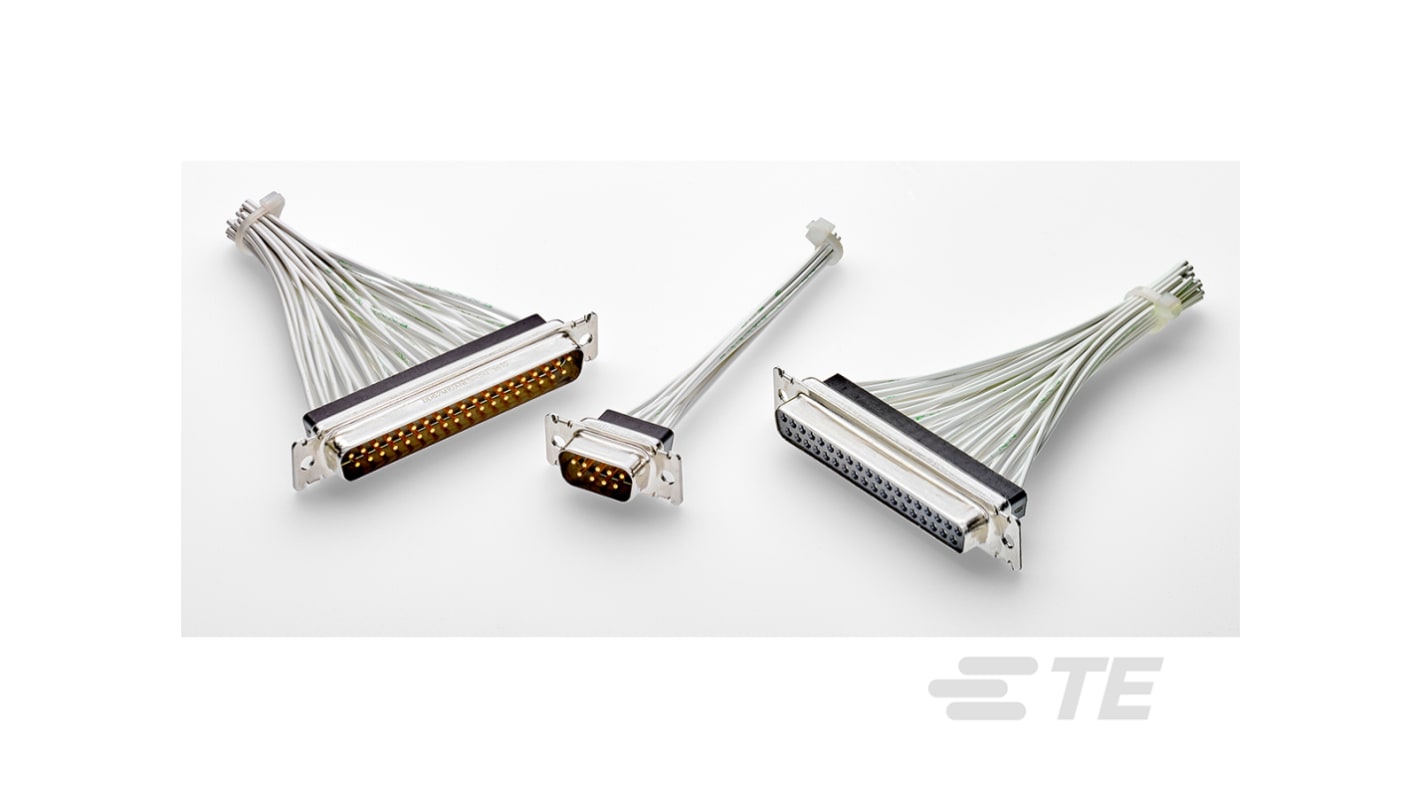

TE Connectivity 90 62 Way Cable Mount D-sub Connector Socket, 2.29mm Pitch
- RS Stock No.:
- 187-0968
- Mfr. Part No.:
- 2335893-4
- Brand:
- TE Connectivity
22 In stock - FREE next working day delivery available
Added
Price Each
£21.96
(exc. VAT)
£26.35
(inc. VAT)
| Units | Per unit |
| 1 + | £21.96 |
- RS Stock No.:
- 187-0968
- Mfr. Part No.:
- 2335893-4
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
TE Connectivity 2335893-4
Product Type=Connector, Connector Style=Receptacle, Connector System=Cable-to-Cable, Shell Size=4, Sealable=No, Preloaded=No, Number of Positions=62, Power/Signal/Coax Combination=No, Retention Clip Material=Stainless Steel, Non-Magnetic=No, Contact Style=Socket, Contact Size=22, Contact Current Rating (Max)=5 A, Mounting Hole Diameter=2.92 – 3.18 mm, Connector Mounting Type=Cable Mount (Free-Hanging), Centerline (Pitch)=2.29 mm, Operating Temperature Range=-55 – 125 °C, ULTRA-LITE Connector=No, Circuit Application=Signal, NASA Qualification=No
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 62 |
| Gender | Female |
| Mounting Type | Cable Mount |
| Pitch | 2.29mm |
| D Connector Type | High Density D-Sub |
| Termination Method | Crimp |
| Current Rating | 5.0A |
| Housing Material | Stainless Steel |
| Length | 69.32mm |
| Width | 12.55mm |
| Depth | 10.9mm |
| Dimensions | 69.32 x 12.55 x 10.9mm |
| Series | 90 |
| Series Number | 2335893 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55.0°C |
| Contact Size | 22 |
