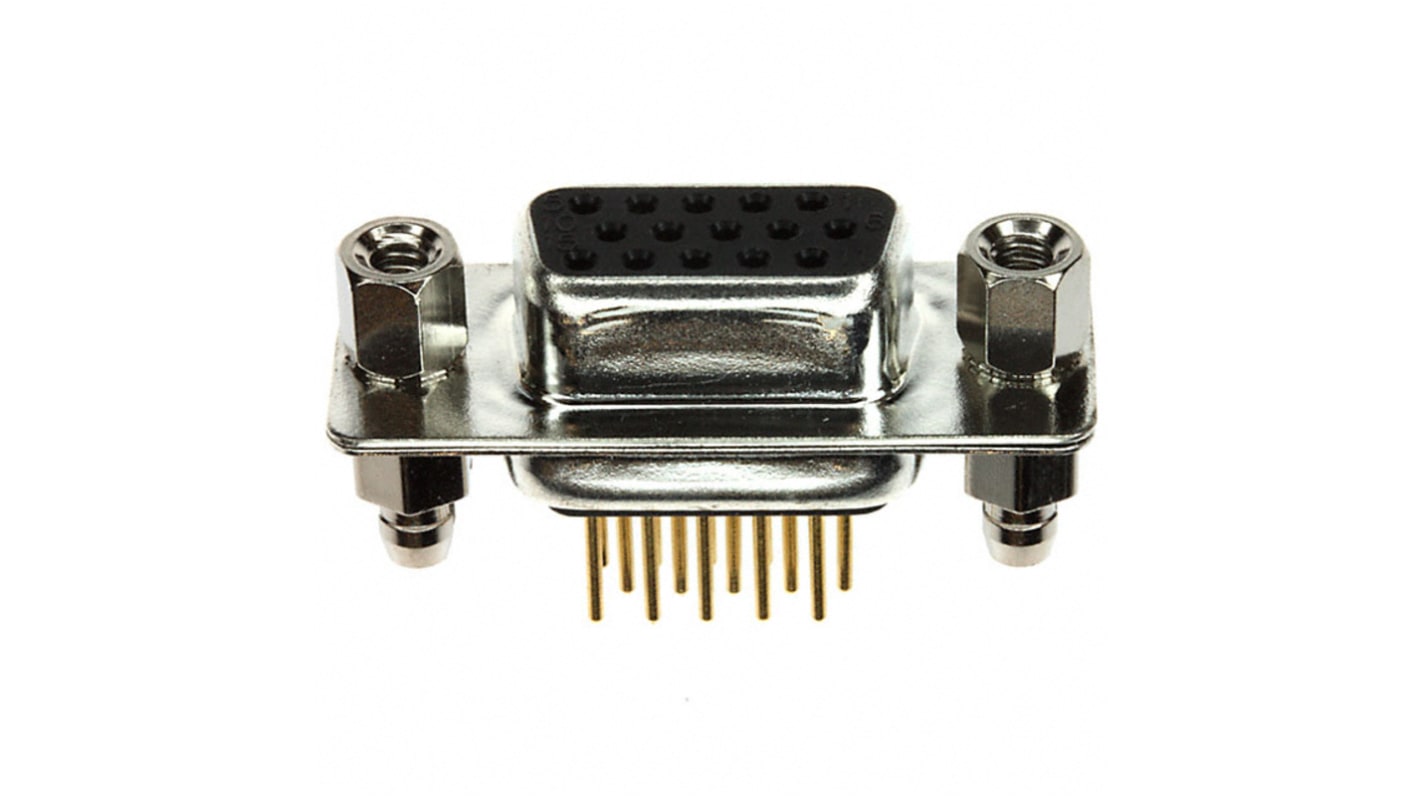

Norcomp 180 15 Way Through Hole D-sub Connector Socket, 2.29mm Pitch, with 4-40 Spacer/Board Lock
- RS Stock No.:
- 174-8519
- Mfr. Part No.:
- 180-M15-213R911
- Brand:
- Norcomp
Available to back order for despatch 07/10/2024
Added
Price Each (In a Tray of 36)
£5.713
(exc. VAT)
£6.856
(inc. VAT)
| Units | Per unit | Per Tray* |
| 36 - 36 | £5.713 | £205.668 |
| 72 - 144 | £5.251 | £189.036 |
| 180 + | £5.108 | £183.888 |
| *price indicative | ||
- RS Stock No.:
- 174-8519
- Mfr. Part No.:
- 180-M15-213R911
- Brand:
- Norcomp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Vertical solder d-subs available in 5 industry sizes/positions:
High Density (15, 26, 44, 62, 78).
Approximately 65% more higher density then standard d-sub connectors.
Screw machined contacts offer high reliability.
Metal Shell provides EMI/RFI shielding. Available with 4 clinch-nut options.
Plug shells have indents to provide grounding & additional retention.
Connectors will fit in standard d-sub backshells.
Shell: Steel, Nickel plated
Insulator: PA6T, (260°C process temp)
Machined contacts: Brass, Gold Flash Plated
High Density (15, 26, 44, 62, 78).
Approximately 65% more higher density then standard d-sub connectors.
Screw machined contacts offer high reliability.
Metal Shell provides EMI/RFI shielding. Available with 4 clinch-nut options.
Plug shells have indents to provide grounding & additional retention.
Connectors will fit in standard d-sub backshells.
Shell: Steel, Nickel plated
Insulator: PA6T, (260°C process temp)
Machined contacts: Brass, Gold Flash Plated
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 2.29mm |
| D Connector Type | High Density D-Sub |
| Termination Method | Solder |
| Mounting Hardware | 4-40 Spacer/Board Lock |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 30.8mm |
| Width | 12.5mm |
| Depth | 11.8mm |
| Dimensions | 30.8 x 12.5 x 11.8mm |
| Contact Plating | Gold Flash |
| Contact Material | Brass |
| Series | 180 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55.0°C |
| Series Number | 180 |
