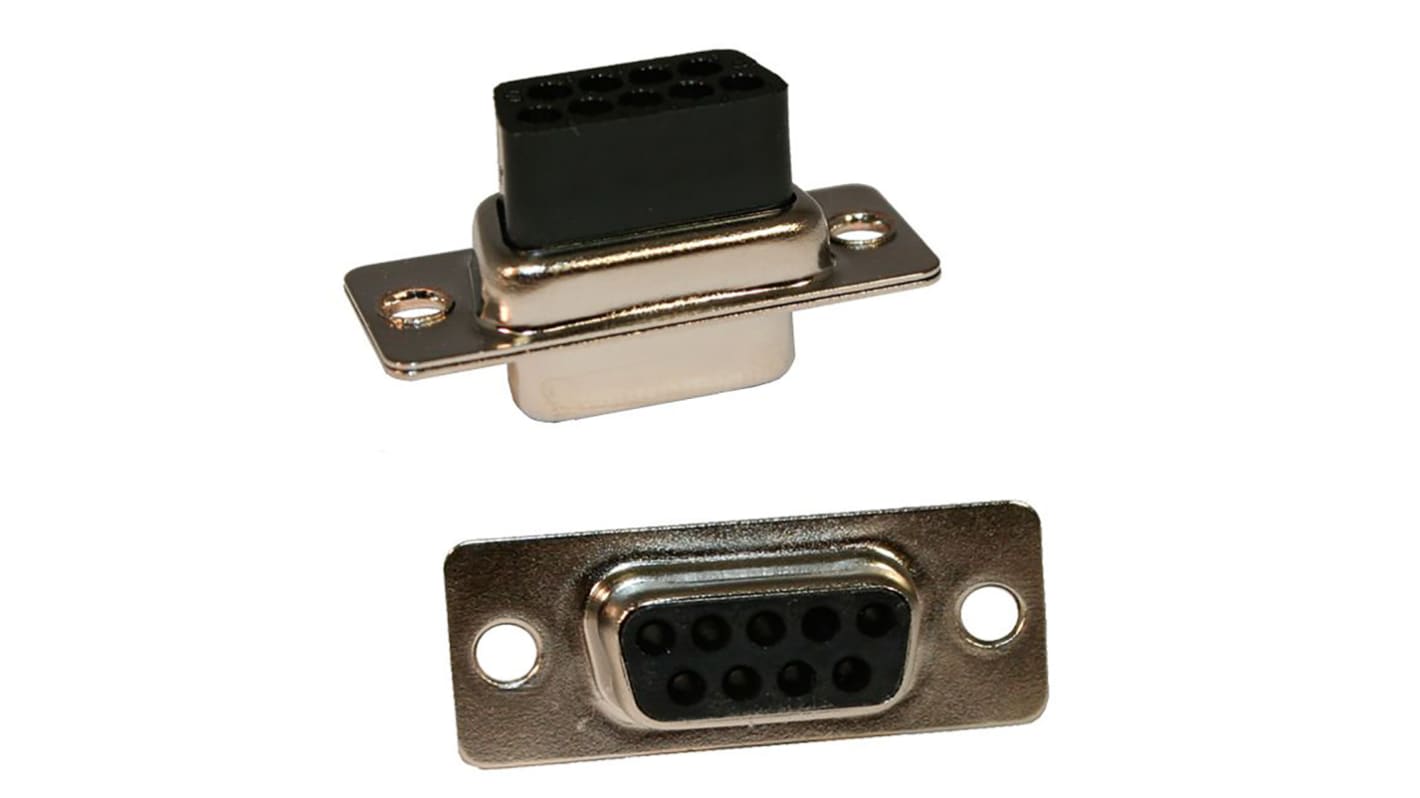

Norcomp 170 9 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch
- RS Stock No.:
- 174-8436
- Mfr. Part No.:
- 170-009-273L000
- Brand:
- Norcomp
100 In stock - FREE next working day delivery available
Added
Price Each (In a Tray of 50)
£0.858
(exc. VAT)
£1.03
(inc. VAT)
| Units | Per unit | Per Tray* |
| 50 - 50 | £0.858 | £42.90 |
| 100 - 200 | £0.818 | £40.90 |
| 250 + | £0.737 | £36.85 |
| *price indicative | ||
- RS Stock No.:
- 174-8436
- Mfr. Part No.:
- 170-009-273L000
- Brand:
- Norcomp
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Crimp & poke d-subs available in 5 industry sizes/positions
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Low cost commercial version of military standard. Nickel or Tin shells.
Allows for easy loading of only the positions required.
Crimp & Snap-in contacts (sold separately).
Nylon insulator has a minimum contact retention of 10 lbs.
Contact current rating: 5 amps.
Shell: Steel, Tin or Nickel Plated
Insulator: Glass-filled thermoplastic (230°C process temp)
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Low cost commercial version of military standard. Nickel or Tin shells.
Allows for easy loading of only the positions required.
Crimp & Snap-in contacts (sold separately).
Nylon insulator has a minimum contact retention of 10 lbs.
Contact current rating: 5 amps.
Shell: Steel, Tin or Nickel Plated
Insulator: Glass-filled thermoplastic (230°C process temp)
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77mm |
| Termination Method | Crimp |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 500.0 V |
| Length | 30.8mm |
| Width | 12.6mm |
| Depth | 11.1mm |
| Dimensions | 30.8 x 12.6 x 11.1mm |
| Series | 170 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -50.0°C |
| Series Number | 170 |
