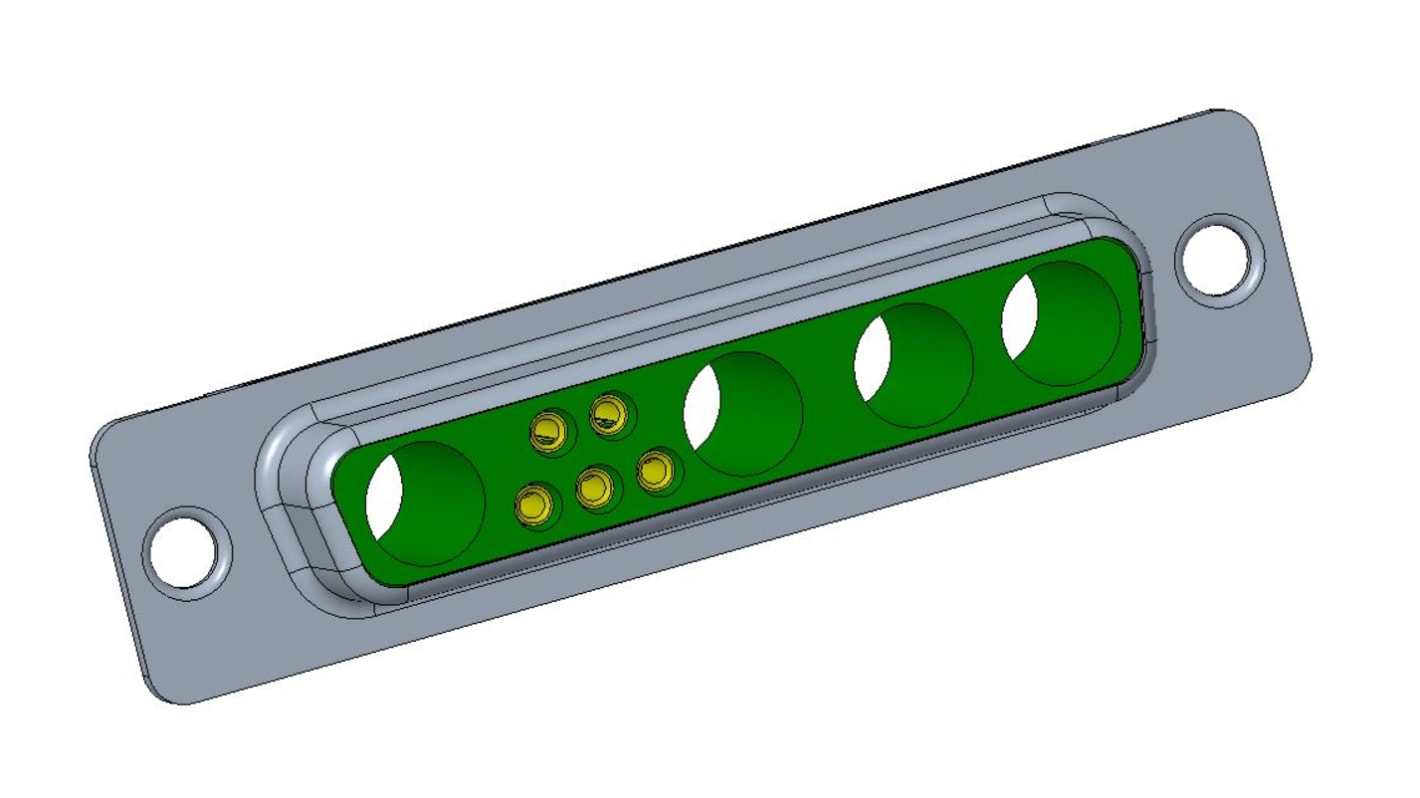

Amphenol ICC DW 9 Way Cable Mount D-sub Connector Socket
- RS Stock No.:
- 173-8710
- Mfr. Part No.:
- DB9W4SA00LF
- Brand:
- Amphenol ICC
Available to back order for despatch 01/08/2024
Added
Price Each (In a Tray of 20)
£17.072
(exc. VAT)
£20.486
(inc. VAT)
| Units | Per unit | Per Tray* |
| 20 - 20 | £17.072 | £341.44 |
| 40 + | £15.558 | £311.16 |
| *price indicative | ||
- RS Stock No.:
- 173-8710
- Mfr. Part No.:
- DB9W4SA00LF
- Brand:
- Amphenol ICC
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Plug & Socket Shells - DW Series
DW series of mixed power and signal contacts has been specially designed for industrial and telecom markets
Mixed contacts for soldering on to cable
Contacts for currents of 10A to 40A should be ordered separately
These connectors are not provided with accessories
Mixed contacts for soldering on to cable
Contacts for currents of 10A to 40A should be ordered separately
These connectors are not provided with accessories
Standards
NFC 93425 HE507
Mixed Contact 'D'
Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| D Connector Type | Mixed Contact D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | B |
| Mixed Contact Layout | 9W4 |
| Housing Material | Steel |
| Voltage Rating | 300.0 V |
| Length | 52.65mm |
| Width | 12.55mm |
| Series | DW |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55.0°C |
