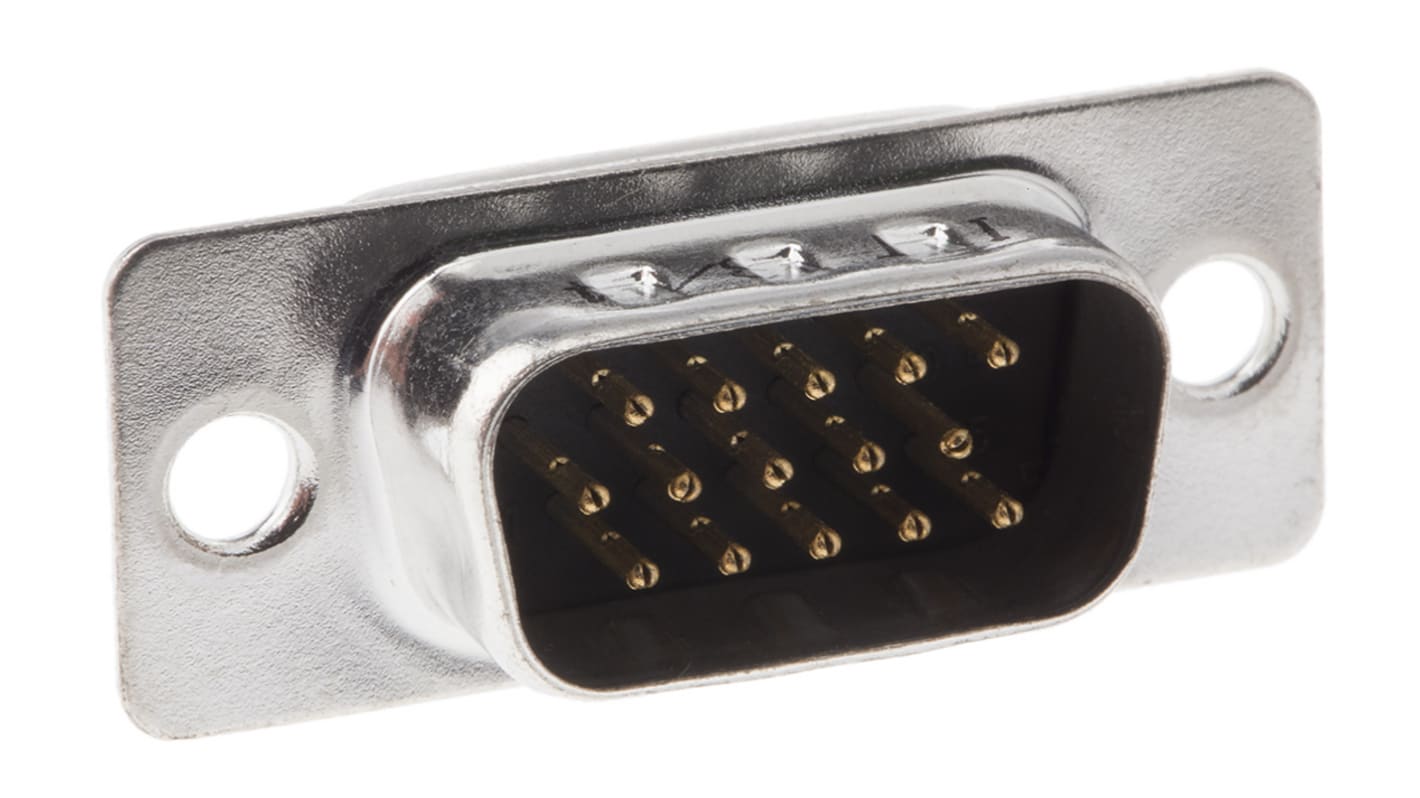

ITT Cannon, ZD 15 Way Through Hole D-sub Connector Plug, 2.29mm Pitch

  • RS Stock No. 171-1411
  • Mfr. Part No. ZDEA-15P-OL2
  • Brand ITT Cannon
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Connectors for soldering onto ZD PCBs** High density D-sub

The high density D-sub connectors are used for IT and industrial applications which require a high number of contacts in traditional size D-subs or in a reduced size with a similar numberof contacts.
They accept all of the same accessories as traditional D-subs.
Lock using knurled 4-40 UNC nut.
Stamped and formed contacts.
The angled female connectors feature a bracket with harpoons.

Specifications
Attribute Value
Number of Contacts 15
Gender Male
Body Orientation Straight
Mounting Type Through Hole
Pitch 2.29mm
Current Rating 2.0A
Housing Material Steel
Length 30.89mm
Width 10.82mm
Depth 12.55mm
Dimensions 30.89 x 10.82 x 12.55mm
Contact Plating Gold over Nickel
Contact Material Brass
Series ZD
Minimum Operating Temperature -55.0°C
Maximum Operating Temperature +105°C
