TE Connectivity, Amplimite HDP-20 25 Way Through Hole D-sub Connector Socket, 2.76mm Pitch, with 4-40 UNC Female

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

AMPLIMITE D-sub Connector HD-20 Series Standard PCB Mounting Receptacle Style Headers

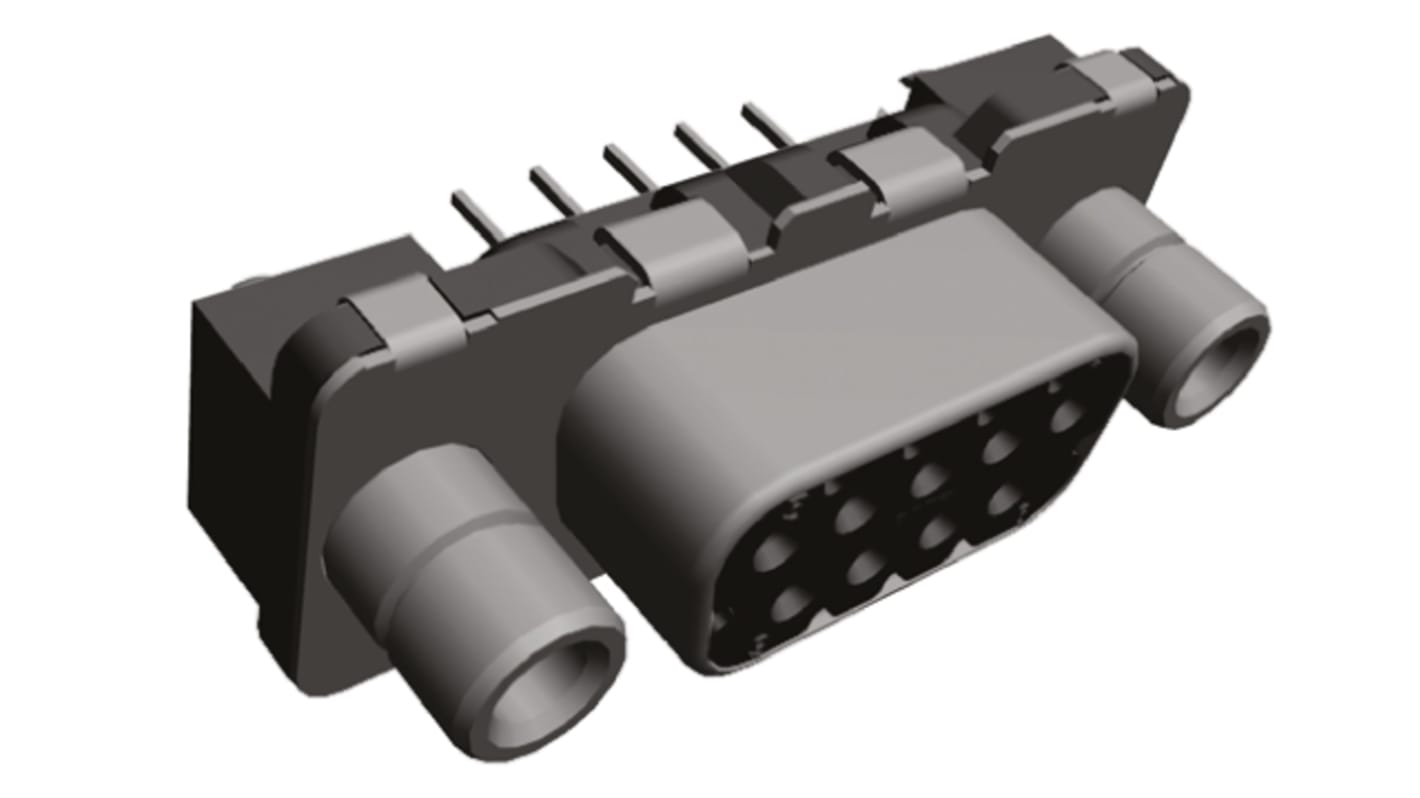

AMPLIMITE HD-20 standard PCB through hole vertical mounting receptacle styled d-sub headers with a tin plated steel front shell and a black UL 94V-0 polyester GF housing. These AMPLIMITE HD-20 PCB d-sub socket headers are preloaded with phosphor bronze gold plated solder contacts and are available with various mating connector locks options and PCB boardlocks (please see table for details). For mating connectors see stock numbers 718-3871, 409-3315 , 536-9685, 409-3292, 680-7756 , 680-8803 and 536-9714 typically

Note

D-sub receptacle headers with boardlocks can only be used with a PCB with a 1.6mm thickness

TE Connectivity AMPLIMITE D-Subminiature Connectors

Specifications
Attribute Value
Number of Contacts 25
Gender Female
Body Orientation Straight
Mounting Type Through Hole
Pitch 2.76mm
Termination Method Solder
Mounting Hardware Boardlocks, 4-40 UNC Female Screwlocks
Current Rating 6.0A
Housing Material PET
Length 53.1mm
Width 12.1mm
Depth 12.4mm
Dimensions 53.1 x 12.1 x 12.4mm
Maximum Operating Temperature +105°C
Contact Plating Gold over Nickel
Minimum Operating Temperature -55.0°C
Contact Material Phosphor Bronze
Series Amplimite HDP-20
270 In stock - FREE next working day delivery available
Price Each (In a Tray of 30)
£ 3.242
(exc. VAT)
£ 3.89
(inc. VAT)
Units
Per unit
Per Tray*
30 +
£3.242
£97.26
*price indicative
