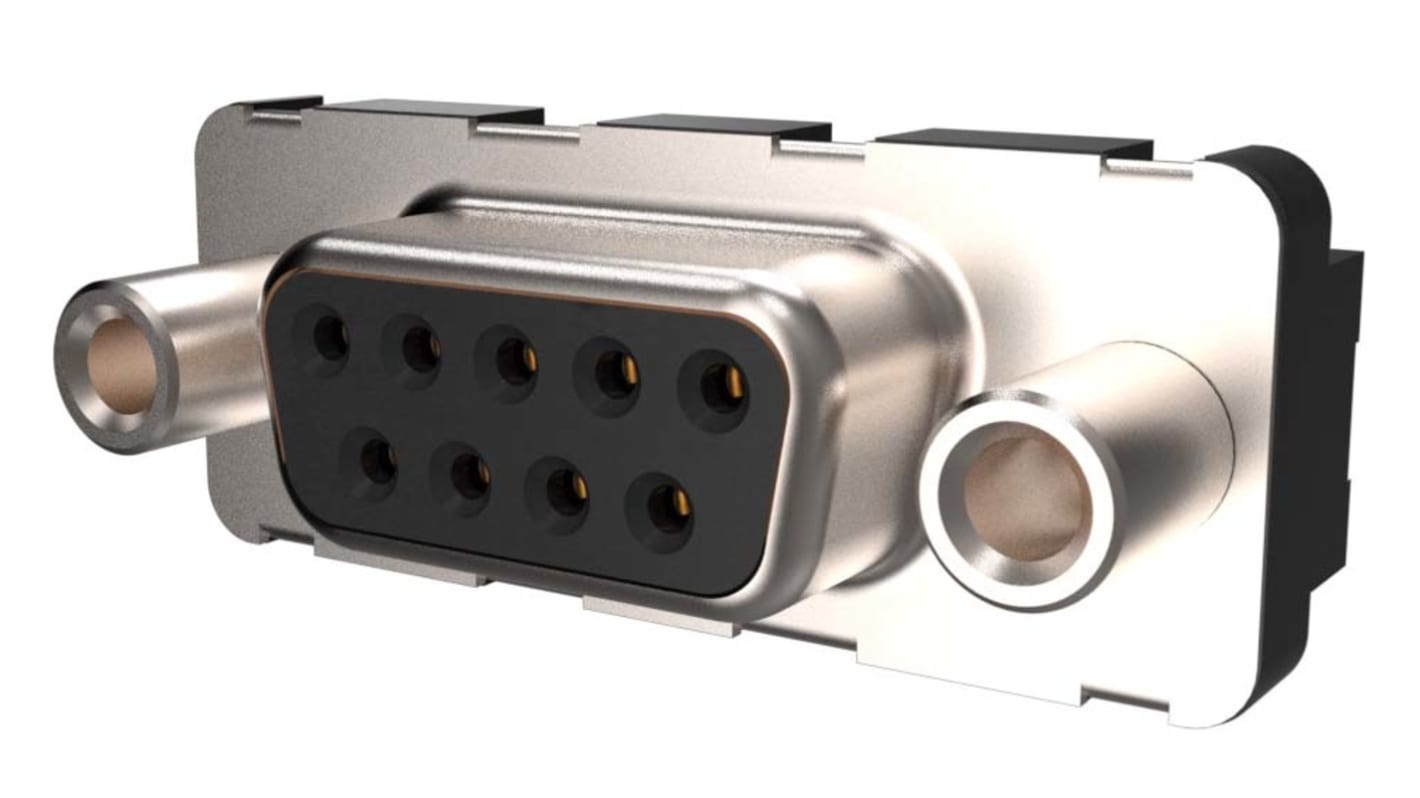

Amphenol ICC 9 Way Right Angle Plug-In Mount D-sub Connector Plug, 2.74mm Pitch, with Screw
- RS Stock No.:
- 137-2654
- Mfr. Part No.:
- D09P33E6GV00LF
- Brand:
- Amphenol ICC
987 In stock - FREE next working day delivery available
Added
Price Each
£0.70
(exc. VAT)
£0.84
(inc. VAT)
| Units | Per unit |
| 1 + | £0.70 |
- RS Stock No.:
- 137-2654
- Mfr. Part No.:
- D09P33E6GV00LF
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
FCI’s D-Subminiature (D-Sub) connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Sub connectors are one of the most popular Input /Output interconnects, addressing a wide variety of applications in telecommunications, data, consumer, industrial & instrumentation, military and medical.
Standard D type is a basic I/O connector
D-shaped design with 2 shells and 2 housings
Meets DIN 41652 and MIL-C-24308 dimensional standards
9 to 50 positions available for contact layout
Stamped and formed contacts
Straight and angled terminations available
Different PCB mounting and panel mounting accessory options available
D-shaped design with 2 shells and 2 housings
Meets DIN 41652 and MIL-C-24308 dimensional standards
9 to 50 positions available for contact layout
Stamped and formed contacts
Straight and angled terminations available
Different PCB mounting and panel mounting accessory options available
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Plug-In Mount |
| Pitch | 2.74mm |
| D Connector Type | Standard D-Sub |
| D-Sub Shell Size | E |
| Termination Method | Solder |
| Mounting Hardware | Screw |
| Mixed Contact Layout | 9W2 |
| Current Rating | 5.0A |
| Housing Material | PBT |
| Voltage Rating | 300.0 V |
| Length | 30.81mm |
| Width | 18.5mm |
| Depth | 12.58mm |
| Contact Plating | Gold over Nickel |
| Dimensions | 30.81 x 18.5 x 12.58mm |
| Contact Material | Brass |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +125°C |
