- RS Stock No.:
- 137-2652
- Mfr. Part No.:
- 8655MH0901LF
- Brand:
- Amphenol ICC
- RS Stock No.:
- 137-2652
- Mfr. Part No.:
- 8655MH0901LF
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

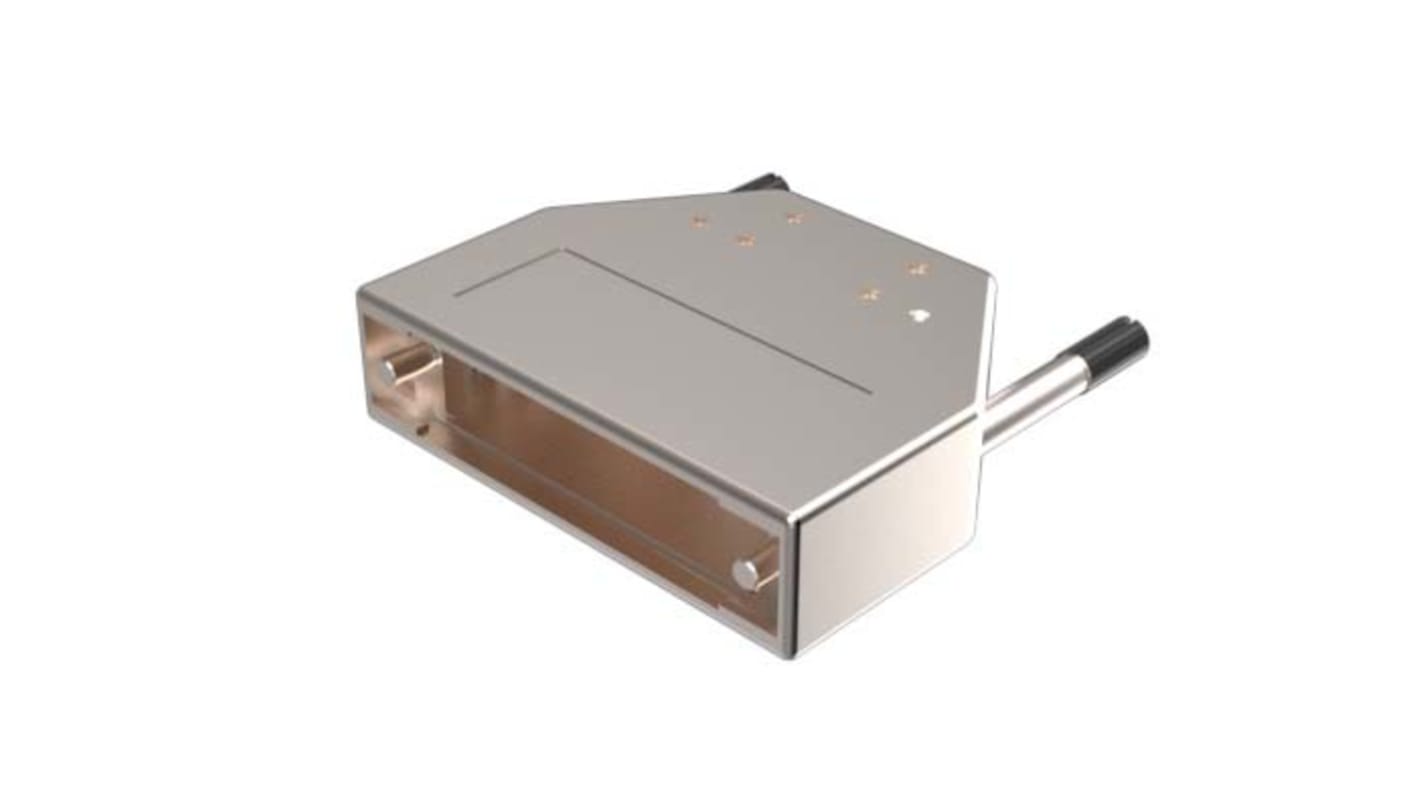

Amphenol FCI's D-Subminiature (D-Sub) connectors are part of industry standard and are one of the most popular Input/Output interconnects, addressing a wide variety of applications including telecommunications, industrial and medical.
Prevents accidental mismating
Metal hoods available in straight and angled terminations for EMI/RFI shielding
Dust caps available in metal and plastic versions
Locking screws comes with UNC 4-40 and M3 thread options
Hoods available in different orientations and locking options
Metal hoods available in straight and angled terminations for EMI/RFI shielding
Dust caps available in metal and plastic versions
Locking screws comes with UNC 4-40 and M3 thread options
Hoods available in different orientations and locking options
Specifications
Attribute | Value |
---|---|
Number of Contacts | 9 |
Body Orientation | Straight |
Mounting Type | Plug-In Mount |
D Connector Type | Standard D-Sub |
Mounting Hardware | Screw |
Termination Method | Solder |
D-Sub Shell Size | E |
Mixed Contact Layout | 9W2 |
Housing Material | Metal |
Length | 34.4mm |
Width | 14.7mm |
Depth | 55.0mm |
Dimensions | 34.4 x 14.7 x 55mm |
Contact Plating | Gold over Nickel |
Minimum Operating Temperature | -55.0°C |
Maximum Operating Temperature | +125°C |
