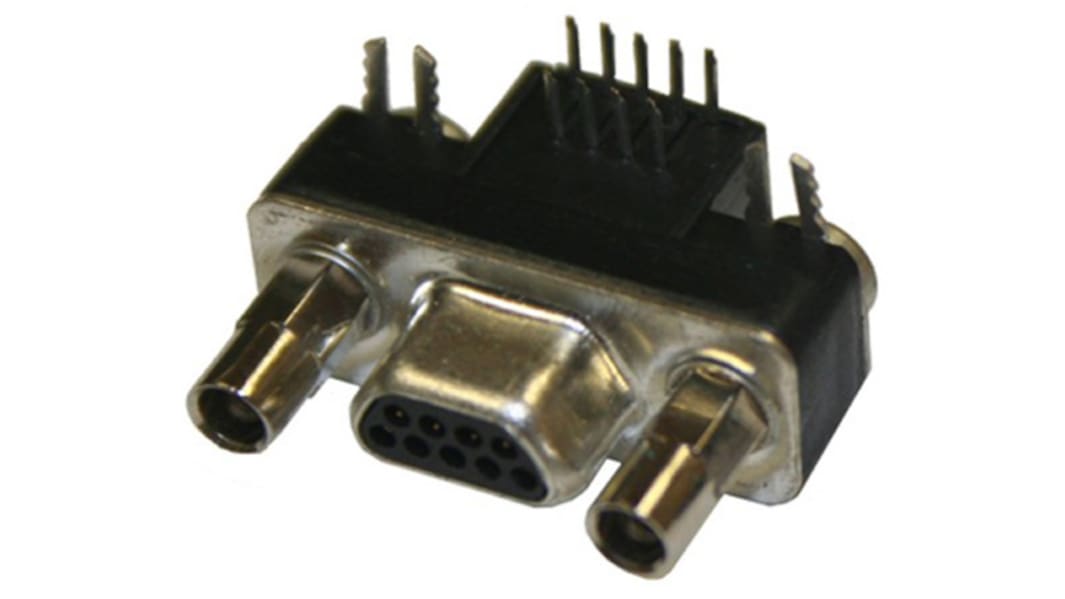

Norcomp, MICRO-D 9 Way Right Angle Through Hole D-sub Connector Plug, 1.27mm Pitch, with Boardlocks, Standoffs

  • RS Stock No. 135-4274
  • Mfr. Part No. 381-009-112L565
  • Brand Norcomp
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

NorComp MICRO-D 380 and 381 Series Micro Miniature D-Sub Connectors

MICRO-D 380 and 381 series PCB mount micro-miniature D-Sub connectors with a 1.27mm pitch and a compact design. The micro-miniature D-Sub connector is 1/3 the size of a standard D-Sub connector. These 380 series MICRO-D d-sub connectors have a metal to metal interface for improved grounding and shielding and a robust mechanical connection. The right angle versions of these micro-miniature D-Sub connectors feature boardlocks for extra retention on the PCB and 2.56 female screwlocks for a secure mounting connection. These MICRO-D D-Sub connectors are available in industry standard sizes of 9, 15 and 25 positions and intermate with most commercial competitive products.

Features and Benefits

• Compact space saving design, 1/3 size of standard D-Sub connectors
• Metal to metal interface for improved grounding and shielding
• Boardlocks (R/A versions) for extra PCB retention
• Screwlocks (R/A versions) for secure mounting
• 1 A contact rating
• Intermate with most commercial competitive products

Product Application Information

These MICRO-D series micro-miniature D-Sub connectors are ideal for use in commercial applications where a robust I/O connector is required and space is limited.

D-Sub Connectors - NorComp

Specifications
Attribute Value
Number of Contacts 9
Gender Male
Body Orientation Right Angle
Mounting Type Through Hole
Pitch 1.27mm
D Connector Type Micro-D
Termination Method Solder
Mounting Hardware Boardlocks, Standoffs
Current Rating 1.0A
Housing Material Steel
Voltage Rating 500.0 V
Length 19.69mm
Width 14.9mm
Depth 7.7mm
Dimensions 19.69 x 14.9 x 7.7mm
Maximum Operating Temperature +85°C
Series MICRO-D
Minimum Operating Temperature -55.0°C
Contact Material Copper Alloy
Series Number 381
Contact Plating Gold
14 In stock - FREE next working day delivery available
Price Each
£ 16.49
(exc. VAT)
£ 19.79
(inc. VAT)
Units
Per unit
1 - 24
£16.49
25 - 49
£14.26
50 - 249
£13.38
250 - 499
£12.22
500 +
£11.84
