- RS Stock No.:
- 485-041
- Mfr. Part No.:
- FM7W2P5-K120 / 1731070092
- Brand:
- FCT from Molex
275 In stock - FREE next working day delivery available
Added
Price Each
£5.96
(exc. VAT)
£7.15
(inc. VAT)
Units | Per unit |
1 - 24 | £5.96 |
25 - 74 | £5.38 |
75 - 199 | £4.77 |
200 + | £4.18 |
- RS Stock No.:
- 485-041
- Mfr. Part No.:
- FM7W2P5-K120 / 1731070092
- Brand:
- FCT from Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

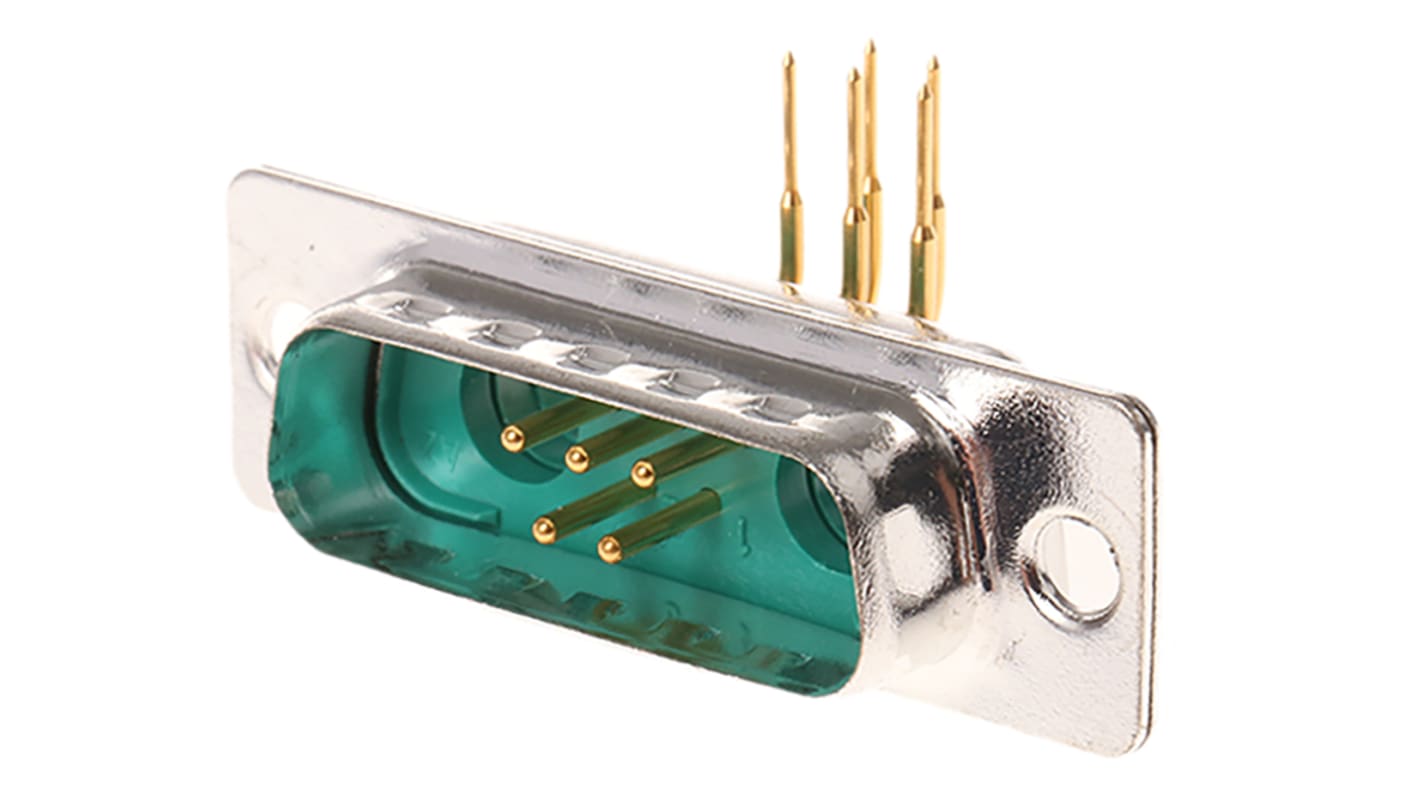

90° Plug & Socket Shells
Signal contact terminations set at 90° for PCB mounting (see below)
Cavities for power/coaxial contacts (available separately)
Cavities for power/coaxial contacts (available separately)
Note
Panel mounting dimensions are as the equivalent standard D connector shell size. PCB coaxial inserts are not suitable
Mixed Contact 'D'
Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
Specifications
Attribute | Value |
---|---|
Number of Contacts | 2 (Power/Coax), 5 (Signal) |
Gender | Male |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Termination Method | Solder |
Current Rating | 5.0A |
Housing Material | Steel |
Length | 39.1mm |
Series | FM |
Contact Plating | Gold over Nickel |
Contact Material | Copper Alloy |
Minimum Operating Temperature | -55.0°C |
- RS Stock No.:
- 485-041
- Mfr. Part No.:
- FM7W2P5-K120 / 1731070092
- Brand:
- FCT from Molex
