Norcomp, 971 Zinc D-sub Connector Backshell, 9 Way

  • RS Stock No. 174-8831
  • Mfr. Part No. 971-009-030R121
  • Brand Norcomp
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

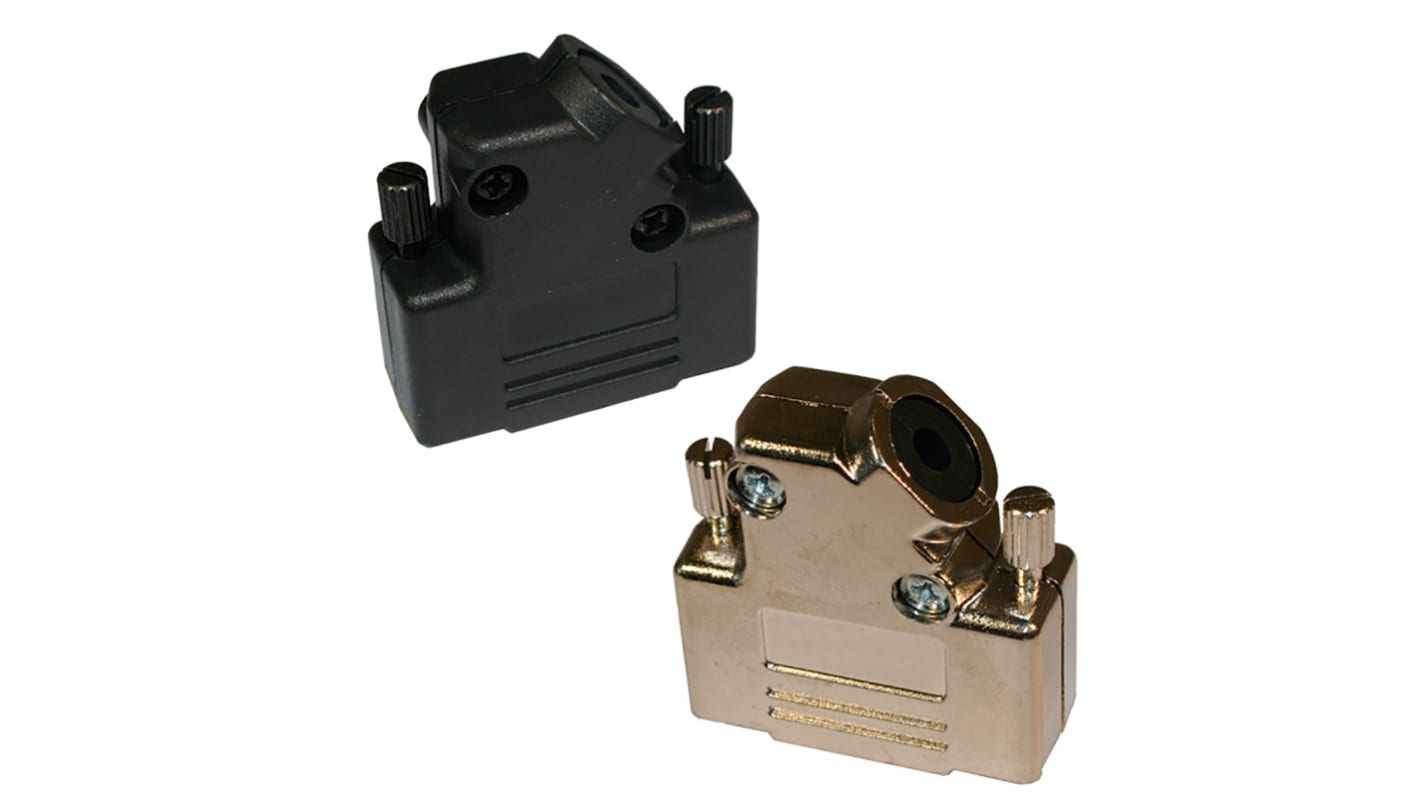

45° Entry D-Sub Backshell available in 4 industry sizes/positions:
Standard (9, 15, 25, 37) or High Density (15, 26, 44, 62)
45-degree cable entry and low profile design allows use where space is a premium.
Thumbscrews supplied with backshell.
More robust design for those areas that need it.
Fully tapped assembly holes allow for easy assembly keeping manufacturing cost down.
2 piece grommet with various I.D.s included.
Perimeter sealing lips for secure sealing.
Available in die cast with 2 different plating options: Nickel & Black
Also available in Metalized plastic and plastic versions.
Die Cast: Lightweight Zinc
Plating: Nickel over copper or black die cast
Metalized Plastic: High temperature
Plating: Nickel over copper
Plastic: High temperature plastic , Black
Hardware: Steel, nickel or black plating

Specifications
Attribute Value
Number of Contacts 9
Housing Material Zinc
Colour Black
Series 971
52 In stock - FREE next working day delivery available
Price Each
£ 4.09
(exc. VAT)
£ 4.91
(inc. VAT)
Units
Per unit
1 - 4
£4.09
5 - 24
£3.89
25 - 49
£3.78
50 - 99
£3.54
100 +
£3.30
