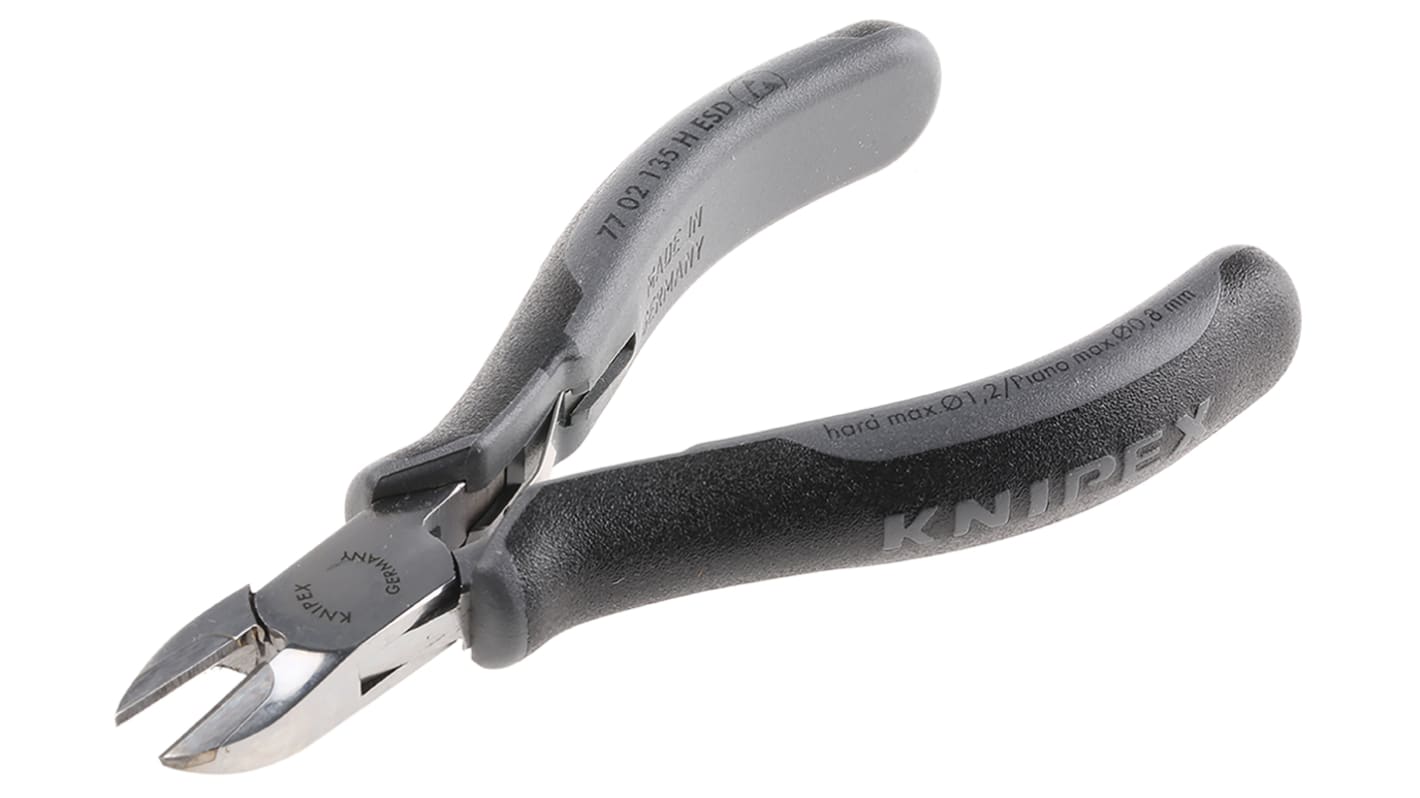

Knipex 135 mm Electronics Diagonal Cutters, Carbide

  • RS Stock No. 815-6390
  • Mfr. Part No. 77 02 135 H ESD
  • Brand Knipex
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

ESD Diagonal Cutter

Professional, high quality ESD diagonal cutter with Carbide cutting edges for a clean, strong cut and longer tool life. ideal for use with electronics and PCB work or for working on or around static sensitve equipment.

Dissipative electrically discharging handles
With cut hard materials such as piano wire, nickel, tungsten and diode wire
Ideal for use in the electronics and aerospace industries
Hardened cutting edges of up to 83 HRC
Zero back lash box joint design

Specifications
Attribute Value
Type Electronics Diagonal Cutters
Overall Length 135 mm
Jaw Length 18mm
ESD Safe Yes
Material Carbide
Maximum Cutting Capacity 1.2mm
Cutting Capacity Hard Wire 1.2mm
Cutting Capacity Piano Wire 0.8mm
Cutting Capacity Soft Wire 2.2mm
Cutting Capacity Medium Hard Wire 1.6mm
4 In stock for FREE next working day delivery
Price Each
£ 110.22
(exc. VAT)
£ 132.26
(inc. VAT)
Units
Per unit
1 +
£110.22
