- RS Stock No.:
- 288-875
- Mfr. Part No.:
- 64 52 115 RS
- Brand:
- Knipex
- RS Stock No.:
- 288-875
- Mfr. Part No.:
- 64 52 115 RS
- Brand:
- Knipex
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- DE
Product Details

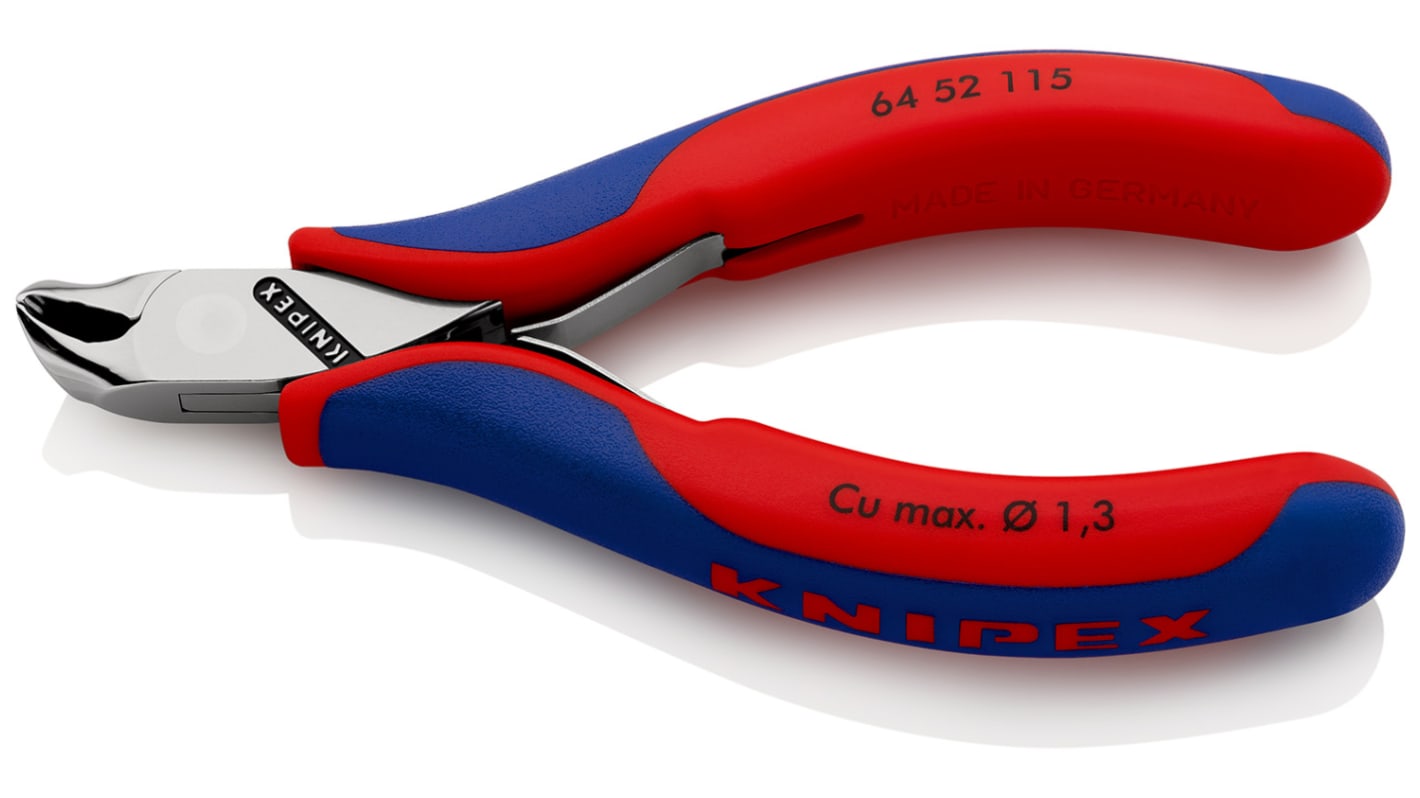

Electronic front cutting pliers without bevel 115mm
Precision pliers for very delicate cutting work, e.g. in the field of electronics and precision mechanics
Features / Benefits :
Precision interlocking hinge
Low-friction double spring for smooth and even opening of the clamp
Polishing or mirror polishing in combination with the thin oil layer provides good protection against rust, thus avoiding disturbances in electronic circuits caused by flaking chrome particles Cutting edges additionally laser-hardened to a hardness of at least 56 HRC
Front and side cutters, short head, without bevel, for flush cutting, α=27°.
Low-friction double spring for smooth and even opening of the clamp
Polishing or mirror polishing in combination with the thin oil layer provides good protection against rust, thus avoiding disturbances in electronic circuits caused by flaking chrome particles Cutting edges additionally laser-hardened to a hardness of at least 56 HRC
Front and side cutters, short head, without bevel, for flush cutting, α=27°.
Special quality tool steel, forged, oil-hardened.
Specifications
Attribute | Value |
---|---|
Model Number | 64 52 |
Overall Length | 115 mm |
Jaw Length | 10mm |
VDE/1000V Approved | No |
Material | Chrome-Plated Steel with Ball Bearings |
Maximum Cutting Capacity | 1.3mm |
Cutting Capacity Copper Wire | 1.3mm |
Cutting Capacity Soft Wire | 1.3mm |
