Time Electronic 1021 Multi Function Calibrator 0 → 100 mA

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

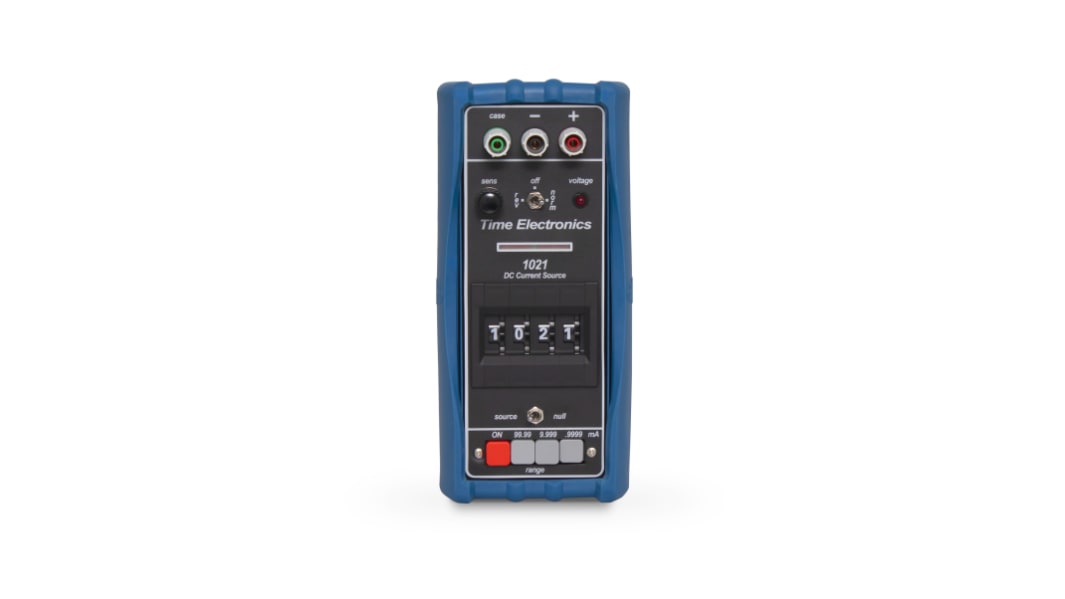

1021 Current Source

A portable, high stability, instrument deriving its accuracy from a precision aged reference diode and low temperature coefficient metal film resistors. The instrument incorporates overload protection and LED indication of insufficient drive voltage. A Null measuring facility allows dc current to be measured to 0.1μA resolution. Supplied in a sturdy carrying case.

Specifications
Attribute Value
Best Accuracy ±0.02 %
Power Source Battery
Battery Type AA
Dimensions 200 x 75 x 110mm
Weight 1kg
Height 110mm
Length 200mm
Maximum Operating Temperature +50°C
Model Number p 1021
Width 75mm
Minimum Operating Temperature -10°C
Available to back order for despatch 04/10/2019
Price Each
£ 902.70
(exc. VAT)
£ 1,083.24
(inc. VAT)
Units
Per unit
1 +
£902.70
Calibration Options:
