Time Electronic 1030 Current & Voltage Calibrator

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Current/Voltage Source 1030

An easy to use, portable instrument for general purpose signal injection which does not require any standardisation before use.

3 voltage and 2 current ranges1kΩ precision resistor (0.01%) is supplied to provide an extended voltage range of 0 to 8VRequires PP3 battery

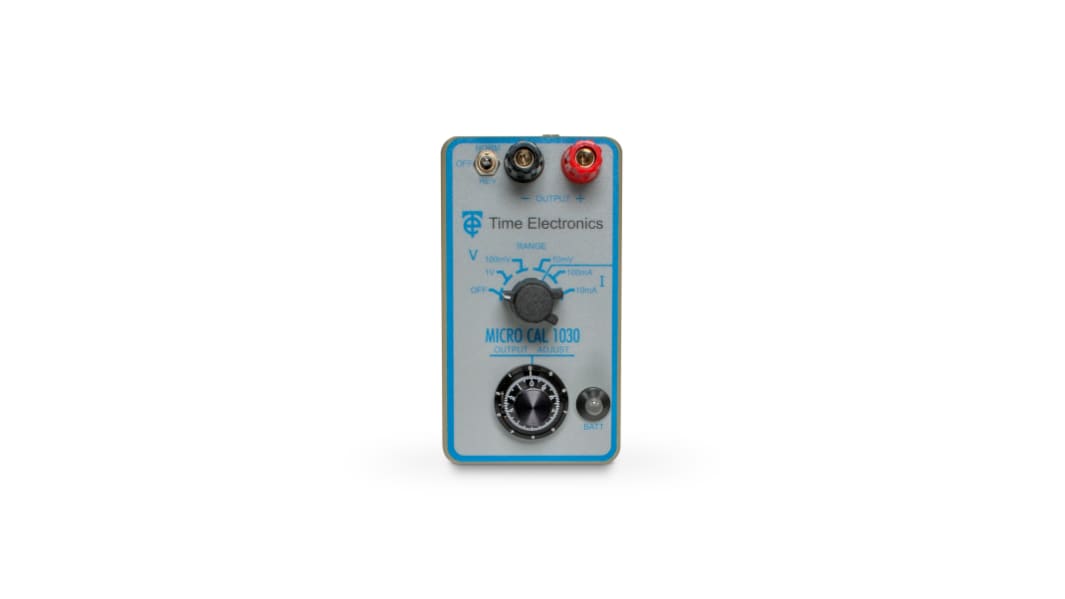

Time Electronic Current and Voltage Calibrator

The Time Electronic current and voltage calibrator is a portable voltage and current calibrator designed for traditional analogue control applications. It is suitable for voltage and current loop signal simulations, as well as, thermocouple simulations. The precision 10-turn dial provides a conventional feel to selecting the required output with a setting resolution of 1 part in a 1000 (0.1%). The compact (115 x 62 x 55mm) and durable design make it ideal for use in both the lab and field applications. Being both cost-effective and simple operation, it is a popular instrument used in various applications across industries.

Features and Benefits

• Measuring voltage ranges from
10mV, 100mV, 1V ranges
• Measuring current ranges are 10mA, 100mA ranges
• Accuracy 0.1%
• Linearity 0.15%
• Up to 8V output (using 1kΩ resistor)
• Precision 10-turn dial
• 60 hours typical battery life
• Battery level indicator
• Supplied with carry case

Applications


Electrical servicing and maintenance
• Laboratories
• Electronic servicing and maintenance
• Industrial automation

Certifications


ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

Specifications
Attribute Value
Absolute Maximum Voltage Measurement 1V
Absolute Maximum Current Measurement 100mA
Best Accuracy ±0.2 %
Power Source Battery
Battery Type LR44
Dimensions 190 x 39 x 31mm
Weight 100g
Height 31mm
Length 190mm
Maximum Operating Temperature +40°C
Width 39mm
Model Number p 1030
Minimum Operating Temperature 0°C
2 In stock for FREE next working day delivery
Price Each
£ 336.60
(exc. VAT)
£ 403.92
(inc. VAT)
Units
Per unit
1 +
£336.60
Calibration Options:
